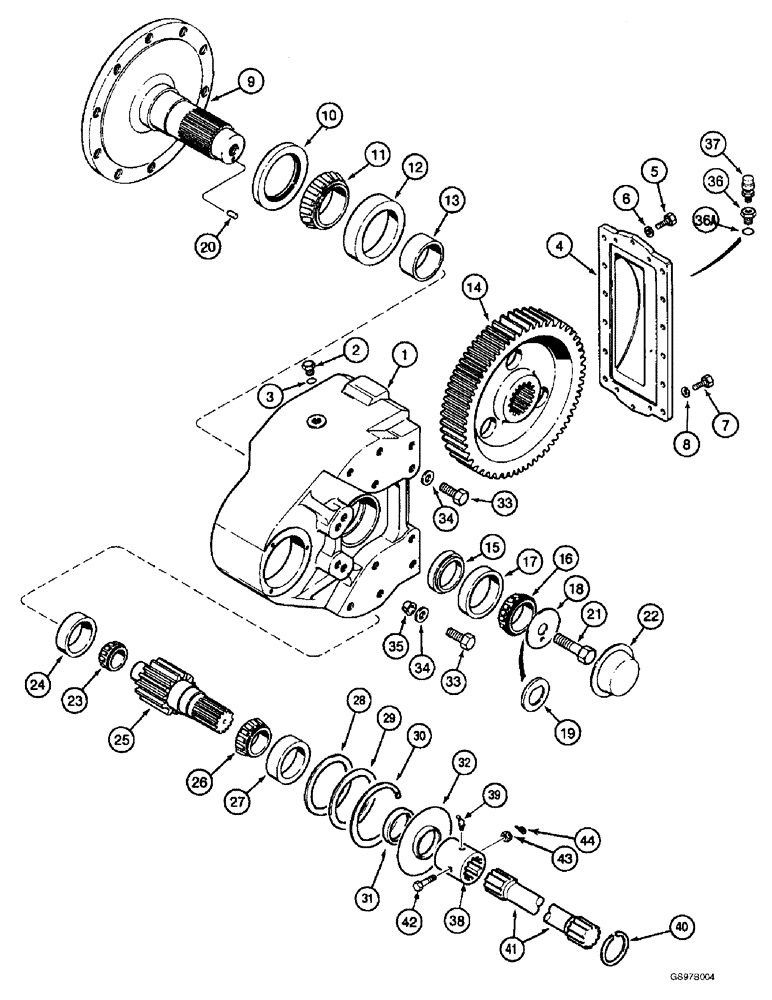

Запчасти Case IH 2144 (6-44) - FINAL DRIVE ASSEMBLY, STANDARD (03) - POWER TRAIN

141577A2

REDUCER

DRIVE ASSEMBLY - final, standard, Includes: Ref. 1 - 32

2шт.

141577A2R

REMAN-FINAL DRIVE

Reman - Final Drive

2шт.

141577A2C

CORE- FINAL DRIVE

Return Part Number Final Drive

2шт.

1

140780A2

HOUSING

- final drive

1шт.

2

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch O-ring boss, Includes: Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

141578A1

COVER

- housing

1шт.

5

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

BOLT, Hex, M12 x 35, 10.9, Full Thd

12шт.

6

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

7

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

6шт.

8

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- flat, 11 x 21 x 2.5 mm, hardened

6шт.

9

138279A1

HALF SHAFT

SHAFT - final drive

1шт.

10

401905R91

OIL SEAL,98.93mm ID x 152.58mm OD x 15.88mm Thk

- oil

1шт.

11

283444C91

BEARING ASSY,85.03mm ID x 46.67mm W

BEARING - tapered roller, outer shaft

1шт.

12

18241H

BEARING, CUP,150.09mm OD x 36.51mm W

CUP - bearing, outer shaft

1шт.

13

130809C1

SPACER

- gear

1шт.

14

138280A1

SLEWING RING

GEAR - drive, 73 teeth

1шт.

15

130808C1

SPACER

- gear

1шт.

16

ST2018A

BEARING ASSY,66.67mm ID x 30.24mm W

CONE - tapered roller bearing, inner shaft

1шт.

17

54404R1

BEARING ASSY,2.25" ID x 112.712 mm OD x 23.812 mm

CUP - tapered roller bearing, inner shaft

1шт.

18

135289A1

RETAINER

PLATE - bearing retainer

1шт.

19

135299A1

SHIM,0.051mm Thk

Bearing, Output shaft 0.051mm Thk

1шт.

19

135300A1

SHIM,0.457mm Thk

Bearing, Output shaft 0.457mm Thk

1шт.

19

135301A1

SHIM,0.635mm Thk

Bearing, Output shaft 0.635mm Thk

1шт.

20

37-1512

DOWEL,5/16" x 3/4"

PIN - dowel, 5/16 x 3/4 inch, hardened (Replaces dowel pin 837-8016)

1шт.

21

828-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

- hex, 24 - 3.0 x 90 mm, class 10.9

1шт.

22

403895R1

COVER

CAP - main shaft

1шт.

23

401911R91

BEARING ASSY,44.45mm ID x 31.75mm W

BEARING - tapered roller, 1-3/4 inch ID, inner

1шт.

24

61012R1

BEARING, CUP,93.66mm OD x 25.4mm W

CUP - tapered roller bearing, 3-11/16 inch OD, inner

1шт.

25

135290A1

SHAFT

- input, 12 teeth

1шт.

26

K4729

ROLLER BEARING,57.15mm ID x 30.96mm W

BEARING - tapered roller, outer shaft

1шт.

27

135651A1

BEARING CUP,104.78mm OD x 23.81mm W

CUP - tapered roller bearing, outer shaft

1шт.

28

135302A1

SHIM,88mm ID x 104mm OD x 0.05mm Thk

Bearing, Input shaft 0.051mm Thk

1шт.

28

135303A1

SHIM,88mm ID x 104mm OD x 0.46mm Thk

Bearing, Input shaft 0.46mm Thk

1шт.

28

135305A1

SHIM,88mm ID x 104mm OD x 0.63mm Thk

Bearing, Input shaft 0.63mm Thk

1шт.

29

135298A1

CIRCLIP

RING - retaining, if used

1шт.

29

193652A1

WASHER

- spacer

1шт.

30

101-21412

SNAP RING,#412, 4.430", Int

RING, SNAP, #412, 4.430", Int

1шт.

31

135292A1

OIL SEAL,55.6mm ID x 108.17mm OD x 12.7mm Thk

- lip, oil

1шт.

32

135291A1

GUARD

- seal

1шт.

33

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 60 mm, class 10.9

14шт.

34

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

- flat, special, 22 x 34 x 3.4 mm

14шт.

35

135314A1

BUSHING,20.1mm ID x 21.75mm OD x 12.7mm L

- tapered

4шт.

36

135950A1

ADAPTER

- straight, special, 1/8 PT x 1-1/16-12 inch O-ring boss, Includes: Ref. 36A

2шт.

36a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

37

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

VALVE - vent, includes felt washer, 1/8 PT x 1 inch

2шт.

38

184341C2

SPLINED COUPLING

COUPLING ASSEMBLY - axle drive shaft, Includes: Ref. 39, Serial Range: -JJC0173150

4шт.

39

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING - grease, 65 degree, 1/4 drive type x 3/4 inch

1шт.

40

123763A1

SNAP RING

RING - snap, special

8шт.

41

123707A1

SHAFT

- axle drive, 612 mm, left-hand, with no axle extensions, Serial Range: -JJC0173150

1шт.

41

123706A1

SHAFT

- axle drive, 276 mm, right-hand, with no axle extensions, Serial Range: -JJC0173150

1шт.

42

113-2293

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

, Serial Range: -JJC0173150

4шт.

43

654049R1

LOCK NUT

- hex, self-locking, 3/8 inch NC, Serial Range: -JJC0173150

4шт.

44

21864R1

COTTER PIN

- retaining, S-type, Serial Range: -JJC0173150

4шт.
