Запчасти Case IH 2144 (6-42) - AXLE EXTENSION, DUAL AND FLOATION WHEELS, 144 INCH FRONT AXLE WIDTH (03) - POWER TRAIN

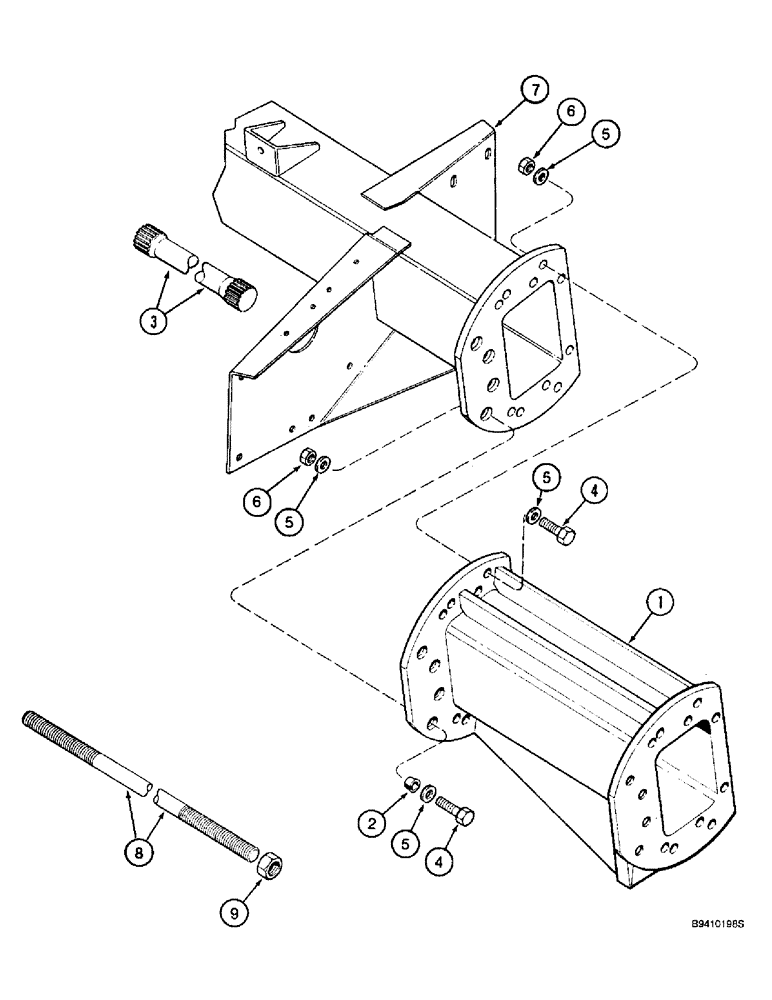

Схема запчастей Case IH 2144 - (6-42) - AXLE EXTENSION, DUAL AND FLOATION WHEELS, 144 INCH FRONT AXLE WIDTH (03) - POWER TRAIN
2
5
4
6
5
3
9
7
5
1
5
6
4
8

Артикул

Название

Примечание

Количество

1

184364C2

EXTENSION

- axle, left-hand, 18 inch, shown, Serial Range: -JJC0173150

1шт.

1

184365C2

EXTENSION

- axle, right-hand, 18 inch, shown, Serial Range: -JJC0173150

1шт.

1a

241106A1

EXTENSION ASSY.

EXTENSION - axle, left-hand, 18 inch, not shown, Start Serial: JJC0173150

1шт.

1a

241107A1

EXTENSION ASSY.

EXTENSION - axle, right-hand, 18 inch, not shown, Start Serial: JJC0173150

1шт.

2

135314A1

BUSHING,20.1mm ID x 21.75mm OD x 12.7mm L

- tapered

1шт.

3

135720A1

SHAFT

- axle drive, 1217 mm, left-hand, Serial Range: -JJC0173150

1шт.

3

242844A1

SHAFT

- axle drive, 1217 mm, left-hand, Start Serial: JJC0173150

1шт.

3

135719A1

SHAFT

- axle drive, 881 mm, right-hand, Serial Range: -JJC0173150

1шт.

3

242843A1

SHAFT

- axle drive, 881 mm, right-hand, Start Serial: JJC0173150

1шт.

4

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 60 mm, class 10.9

1шт.

5

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

- flat, special, 22 x 34 x 3.4 mm

1шт.

6

832-41320

NUT,M20 x 2.5, Cl 10

NUT - hex, self-locking, 20 mm - 2.5, class 10.9

1шт.

7

181921A4

AXLE

- drive, 76 inch

1шт.

8

184358C1

ROD

- reinforcement, extension

1шт.

9

232-41320

LOCK NUT,1 1/4"-7, GC

NUT, LOCK, 1 1/4"-7, GC

4шт.

Выбрано товаров: 15
