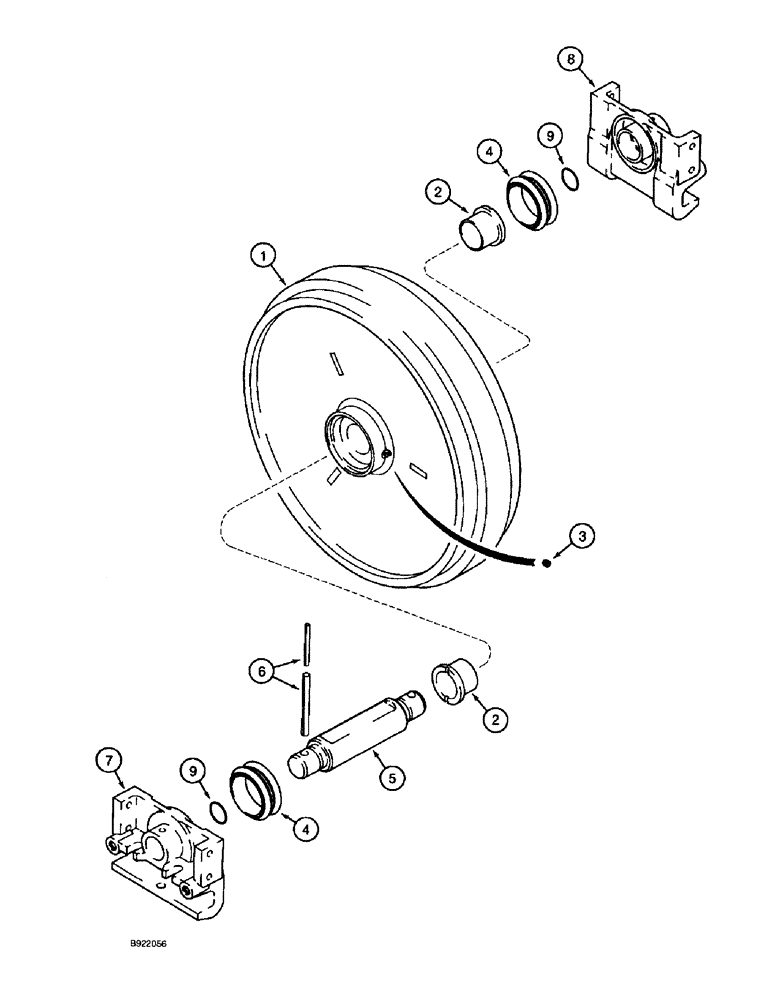

Запчасти Case IH 1688 (6-76) - TRACK IDLER (03) - POWER TRAIN

R53591

FRONT IDLER

ASSEMBLY track, front and rear, Includes: Ref. 1 - 9

4шт.

1

R53592

WHEEL

IDLER track, Includes: Ref. 2

1шт.

2

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

flanged

2шт.

3

R33557

PLUG

hex socket, idler roller

1шт.

4

R36437

SEAL

oil, track

2шт.

5

R53596

SHAFT

idler

1шт.

6

R53594

SPLIT PIN/SAFETY PIN

roll, 10 x 65 mm

2шт.

6

R53595

PIN, ROLL

6 x 65 mm

2шт.

7

R53599

BRACKET

SUPPORT idler end cap

1шт.

8

R53599

BRACKET

SUPPORT idler end cap

1шт.

9

238-5221

O-RING,0.139" Thk x 1.421" ID, -221, Cl 5, 75 Duro

2шт.
