Запчасти Case IH 1688 (6-74) - TRACK CHAIN (03) - POWER TRAIN

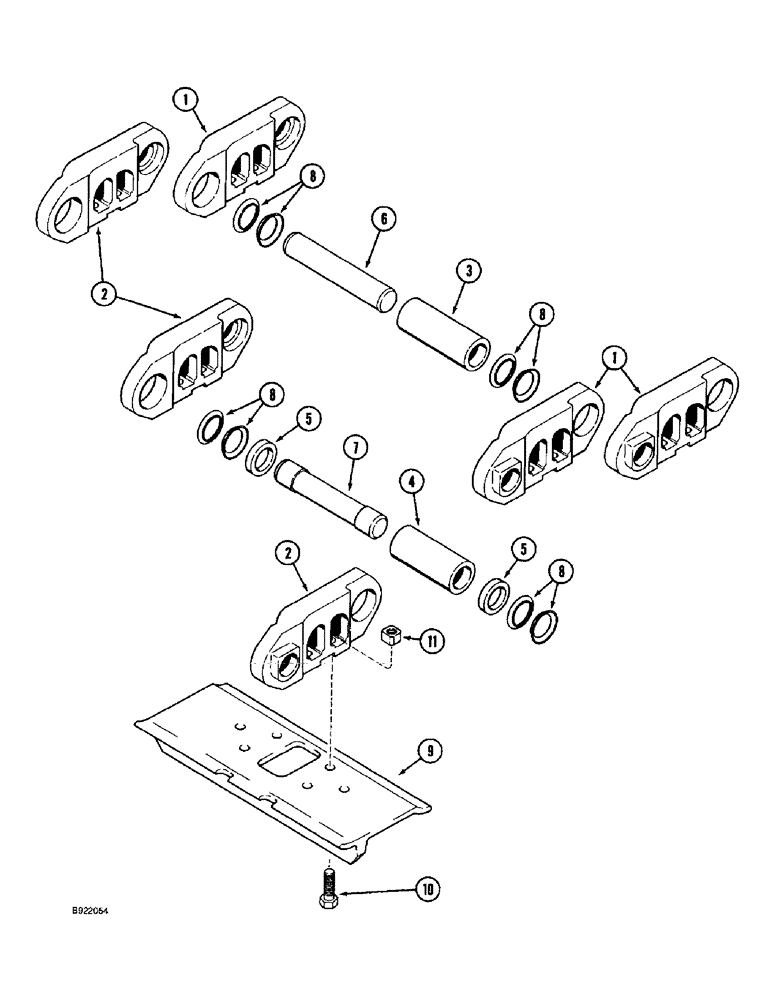

Схема запчастей Case IH 1688 - (6-74) - TRACK CHAIN (03) - POWER TRAIN
4
7
10
8
2
6
8
8
5
5
9
3
1
8
2
11
1

Артикул

Название

Примечание

Количество

1541593C1

TRACK CHAIN

track with shoes, Includes: Ref. 1 - 11

2шт.

1541710C1

TRACK CHAIN

track without shoes, Includes: Ref. 1 - 8

2шт.

1

R57403

CHAIN LINK

Track, LH

78шт.

2

R57404

CHAIN LINK

Track, RH

78шт.

3

R57378

BUSHING

link, 4-3/4 inch long

76шт.

4

R57379

BUSHING

master link, 4 inch long

2шт.

5

R57411

SPACER

master bushing

4шт.

6

R57367

PIN

1-1/8 inch (29 mm) diameter, chain link

76шт.

7

R57366

PIN,28.24mm OD x 167mm L

master link

2шт.

8

R52291

SEAL

Belleville spring

312шт.

9

R57420

TRACK SHOE

track, single grouser, 20 inch

78шт.

10

R57374

BOLT

BOLT hex, special, 9/16 NF x 1-25/32 inch

312шт.

11

R57375

SQUARE NUT

square, special, 9/16 inch NF, track shoe bolt

312шт.

Выбрано товаров: 13
