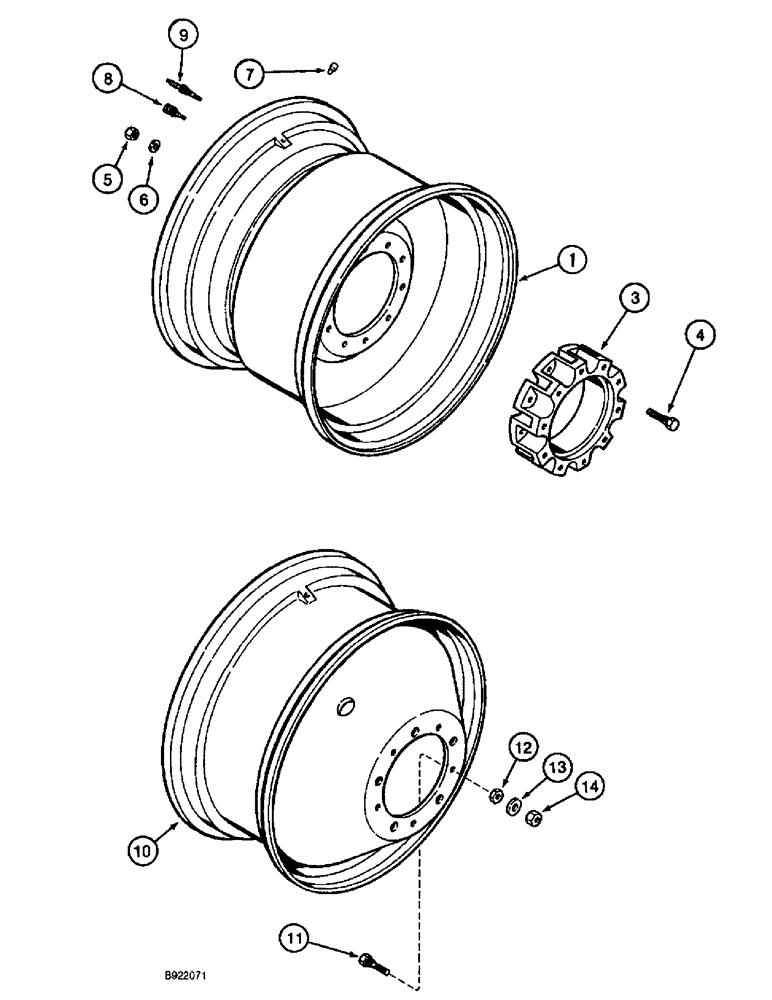

Запчасти Case IH 1688 (6-66) - DRIVE WHEELS AND SPACERS, DUAL DRIVE WHEELS (03) - POWER TRAIN

1

184482C1

RIM

WHEEL drive, 24.5 x 32 inch tire, and spacers

2шт.

1

184480C1

RIM

WHEEL drive, 30.5L x 32 inch tire, and spacers

2шт.

2

112012A1

WHEEL ASSY.

drive, 73 x 44-32 inch tire, and spacers

4шт.

3

178912C92

RETAINER

SPACER wheel, 3 inch, drive

2шт.

3

188124C91

RETAINER

SPACER wheel, 2 inch, drive, Includes: Ref. 4

2шт.

4

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

wheel, drive and spacers

20шт.

5

429-1112

NUT,3/4"-16, G5

hex, 3/4 inch NF, grade 8, drive wheels and spacers

20шт.

6

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

Not used with spacer, drive wheels and spacers

20шт.

7

417194C1

PLUG

valve hole for tubeless tires, drive wheels and spacers

2шт.

7

383697R1

PLUG

valve hole, for tube type rice tires, drive wheels and spacers

2шт.

8

179482C1

VALVE STEM

inflation, 7/16 inch diameter, tubeless tire, drive wheels and spacers

2шт.

9

407184R1

VALVE

CORE inflation, tubeless tire, drive wheels and spacers

2шт.

10

184352C1

RIM

WHEEL drive, dual, 18.4 x 38 inch tire

4шт.

10

184458C1

RIM

drive, dual, 18.4 x 42 inch tire

4шт.

10

184481C1

RIM

WHEEL drive, dual, 20.8 x 38 inch tire

4шт.

10

184456C1

RIM

drive, dual, 20.8 x 42 inch tire

4шт.

11

184430C1

BOLT

wheel, dual drive

20шт.

12

329-1512

JAM NUT,Jam, 3/4"-10, G8

Dual drive wheel

10шт.

13

184403C1

SPACER

flat, 13/16 x 2 x 3/8 inch, dual drive wheel

20шт.

14

429-1112

NUT,3/4"-16, G5

hex, 3/4 inch NF, grade 8, dual drive wheel

20шт.
