Запчасти Case IH 1688 (6-64) - FINAL DRIVE (03) - POWER TRAIN

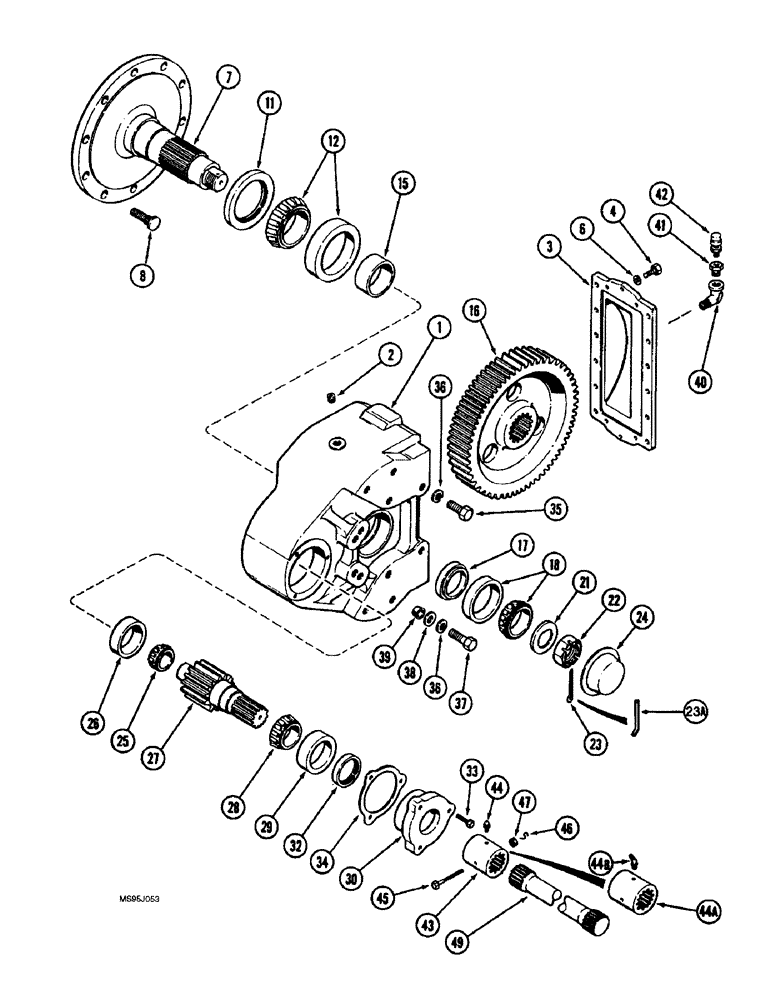

Схема запчастей Case IH 1688 - (6-64) - FINAL DRIVE (03) - POWER TRAIN
23
7
18
35
1
47
3
30
12
4
8
24
45
25
36
44a
34
44
11
36
16
15
43
39
22
40
49
17
27
38
26
28
46
23a
6
33
29
44b
21
2
42
32
37
41

Артикул

Название

Примечание

Количество

1342937C1

DRIVE ASSY.

final, Includes: Ref. 1 - 34

2шт.

1

86851C2

HOUSING

final drive

1шт.

2

217-442

PLUG,3/4" - 14

hex socket, 3/4 inch PT

2шт.

3

86839C2

COVER

housing

1шт.

4

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

4

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

6

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

12шт.

6

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, hardened, 13/32 x 13/16 x 3/32 inch

6шт.

7

1315484C91

SHAFT

ASSEMBLY drive, final, Includes: Ref. 8

1шт.

8

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

wheel, standard wheels only

10шт.

11

401905R91

OIL SEAL,98.93mm ID x 152.58mm OD x 15.88mm Thk

oil, outer bearing

1шт.

12

283445C91

BEARING ASSY,85.03mm ID x 150.09mm OD x 44.4.5mm W

ASSEMBLY two piece, includes cup, outer

1шт.

15

130809C1

SPACER

gear

1шт.

16

1342906C1

GEAR

drive, 75 teeth

1шт.

17

130808C1

SPACER

gear

1шт.

18

66116R91

BEARING ASSY,66.67mm ID x 112.71mm OD x 30.16mm W

ASSEMBLY two piece, includes cup, inner

1шт.

21

403896R1

WASHER

WASHER final drive

1шт.

22

147030R1

SLOTTED NUT

NUT hex, slotted, special shaft retaining

1шт.

23

432-840

COTTER PIN,1/8" x 2 1/2"

no longer used, order Ref. 23A, 1997637C1 1/8" x 2 1/2"

1шт.

23a

1997637C1

SPLIT PIN/SAFETY PIN

lock

1шт.

Part of KIT, part number 1997991C1

1шт.

24

403895R1

COVER

CAP main shaft

1шт.

25

401911R91

BEARING ASSY,44.45mm ID x 31.75mm W

tapered roller, 1-3/4 inch ID

1шт.

26

61012R1

BEARING, CUP,93.66mm OD x 25.4mm W

tapered roller, 3-11/16 inch OD

1шт.

27

1342907C1

SHAFT

pinion

1шт.

28

196454C91

BEARING ASSY,57.15mm ID x 30.96mm W

tapered roller, 2-1/4 inch ID

1шт.

29

360325R1

BEARING, CUP,104.775 mm OD x 23.812 mm

tapered roller, 4-1/8 inch ID

1шт.

30

94649C2

CAGE

inner bearing

1шт.

32

401914R91

OIL SEAL,54.28mm ID x 85.22mm OD x 11.13mm Thk

oil, double lip, cage

1шт.

33

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

hex, 3/8 NC x 1-3/4 inch, grade 8

3шт.

34

86895C1

SHIM,117.4mm ID x 136.2mm OD x 0.08mm Thk

0.003 inch thick

1шт.

34

86896C1

SHIM,117.4mm ID x 136.2mm OD x 0.13mm Thk

0.005 inch thick

1шт.

34

86897C1

SHIM,117.4mm ID x 136.2mm OD x 0.18mm Thk

0.007 inch thick

1шт.

34

86898C1

SHIM,117.4mm ID x 136.2mm OD x 0.76mm Thk

0.030 inch thick

1шт.

35

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

10шт.

36

392-21075

LOCK WASHER,3/4"

3/4"

14шт.

37

426-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

BOLT hex, 3/4 NC x 2-1/4 inch, grade 8

4шт.

38

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat

4шт.

39

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

tapered, end plate

4шт.

40

141621

ELBOW,90 Degree, 3/4" NPT Street

90 degree, 3/4 male x 3/4 PT female, rice combines only

1шт.

41

221-90

REDUCER,3/4" NPT x 1/8" NPT

REDUCER pipe, 3/4 male x 1/8 inch female

2шт.

42

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

FITTING housing, 1/8 inch PT

2шт.

43

184341C1

SLEEVE

COUPLING ASSEMBLY axle drive shaft, Includes: Ref. 44

2шт.

44

219-14

LUBE NIPPLE,1/4" NPTF

Straight

2шт.

44a

184341C2

SPLINED COUPLING

ASSEMBLY axle drive shaft, Includes: Ref. 44B

4шт.

44b

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING grease, 65 degree, 1/4 drive type x 3/4 inch

1шт.

45

27653R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

BOLT hex, 3/8 NC x 3-1/2 inch, grade 8

2шт.

46

21864R1

COTTER PIN

retaining, S-type

2шт.

47

654049R1

LOCK NUT

hex, self-locking, 3/8 inch NC

2шт.

49

184189C1

SHAFT

final drive

2шт.

1997991C1

PACKAGE

KIT lock nut pin, includes instructions

1шт.

Выбрано товаров: 51
