Запчасти Case IH 1688 (6-56) - TRANSMISSION INPUT SHAFT,, GEARS AND SHIFTER RAILS (03) - POWER TRAIN

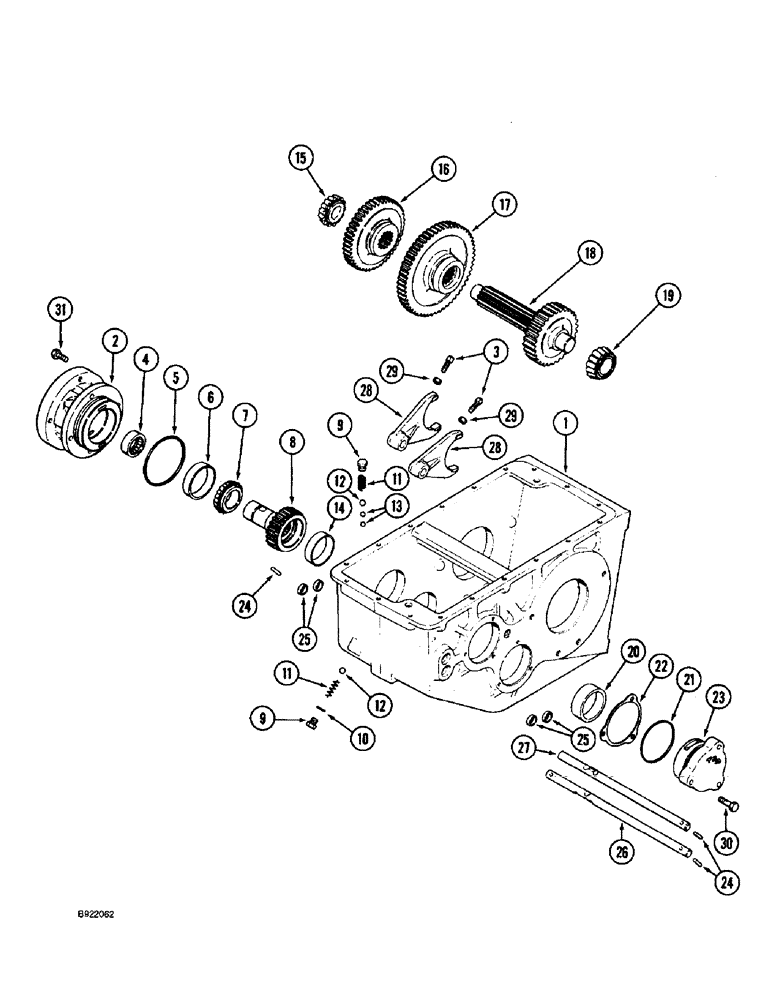

Схема запчастей Case IH 1688 - (6-56) - TRANSMISSION INPUT SHAFT,, GEARS AND SHIFTER RAILS (03) - POWER TRAIN
3
23
28
17
25
16
7
1
13
12
21
24
28
30
4
12
22
19
11
24
26
5
11
25
10
20
9
27
31
2
29
14
15
29
8
9
6
18

Артикул

Название

Примечание

Количество

1

401873R2

HOUSING

transmission, parts list Figure 6-52 Ref. 1

1шт.

2

180944C1

HOUSING ASSY.

input shaft

1шт.

3

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

set, 3/8 NF x 1 inch, shifter fork

2шт.

4

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

needle, 1-3/4 inch ID, input shaft

1шт.

5

238-5348

O-RING,0.21" Thk x 4.35" ID, -348, Cl 5, 75 Duro

1шт.

6

130503H

BEARING CUP

tapered roller, 3-17/64 inch OD, input shaft

1шт.

7

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

tapered roller, 1-25/32 inch ID, input shaft

1шт.

8

401890R1

SHAFT

gear, input pinion, 26 teeth

1шт.

9

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 10

2шт.

11

64600C1

SPRING

shifter detent

2шт.

12

211-1016

BALL,12.7mm OD, Gr 24

Chrome alloy steel, grade 24

2шт.

13

211-1014

BALL,7/16" Dia

chrome alloy steel, grade 24

2шт.

14

50213V

BEARING CUP

tapered roller, 2-3/4 inch OD, left hand drive shaft

1шт.

15

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

tapered roller, 1-5/16 inch ID, left hand drive shaft

1шт.

16

530700R1

GEAR

second and third sliding, 26 and 46 teeth

1шт.

17

401889R1

GEAR

first sliding, 58 teeth

1шт.

18

1349025C1

SHAFT

drive gear, 36 teeth, corn and grain

1шт.

18

1342934C1

SHAFT

drive gear, 33 teeth, rice

1шт.

19

290099C91

TAPERED BEARING,39.69mm ID x 22.1mm W

tapered roller, 2-7/8 inch OD, right hand drive shaft

1шт.

20

290100C1

BEARING CUP,73.05mm OD x 17.78mm W

tapered roller, 1-9/16 inch ID, right hand drive shaft

1шт.

21

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

22

401883R1

SHIM

0.003 inch thick

1шт.

22

401884R2

SHIM,102mm ID x 110mm OD x 0.13mm Thk

(0.005")

1шт.

22

401885R2

SHIM,102mm ID x 110mm OD x 0.18mm Thk

(0.007")

1шт.

22

184195C1

SHIM

0.030 inch thick

1шт.

23

130791C1

BEARING CAP,65.5 mm ID x 101.51 mm OD x 58.7 mm

bearing retainer

1шт.

24

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

1шт.

25

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

oil, shifter rail

4шт.

26

121658C4

SHAFT

second and third gear shifter

1шт.

27

121659C2

SHAFT

first gear shifter

1шт.

28

401897R2

FORK

gear shifter

1шт.

29

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

30

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT hex, 3/8 NC x 1-3/8 inch

3шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 35
