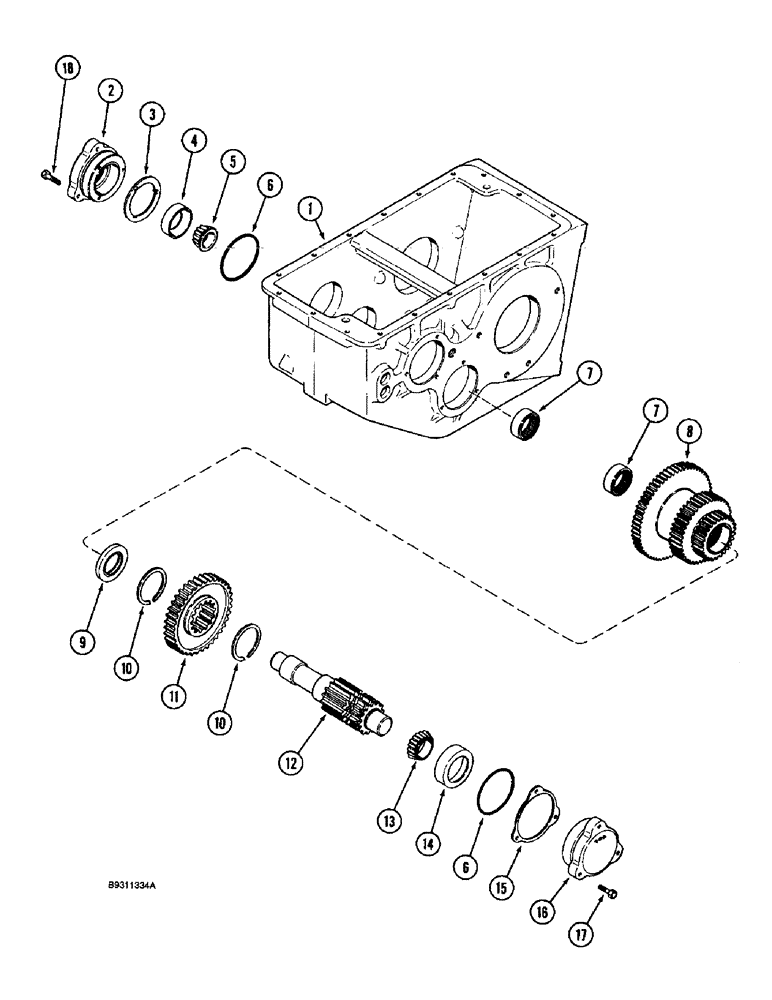

Запчасти Case IH 1688 (6-54) - TRANSMISSION DIFFERENTIAL, PINION SHAFT AND GEARS (03) - POWER TRAIN

1

401873R2

HOUSING

transmission, parts list Figure 6-52 Ref. 1

1шт.

2

188893C1

BEARING COVER,59.75 mm ID x 101.51 mm OD x 47.5 mm

HOUSING bearing, left

1шт.

3

530704R2

THRUST WASHER,74.42mm ID x 99.06mm OD x 1.65mm Thk

thrust

1шт.

4

131312C1

BEARING CUP

tapered roller, 2-27/32 inch OD, left hand pinion shaft

1шт.

5

871244R1

ROLLER BEARING

tapered roller, left hand pinion shaft

1шт.

6

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

2шт.

7

A61415

NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W

needle, spool gear

2шт.

8

530699R1

PINION

GEAR spool, 59, 39 and 27 teeth

1шт.

9

401879R1

SPACER,54.1mm ID x 79.2mm OD x 6.28mm L

spool gear

1шт.

10

196693H1

RING

snap, change gear

2шт.

11

1349026C1

GEAR

change driven, 36 teeth, track, corn and grain

1шт.

11

1342935C1

GEAR

change driven, 39 teeth, rubber tire, rice

1шт.

12

401878R1

SHAFT

SHAFT 14 teeth

1шт.

13

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

tapered roller, right hand pinion shaft

1шт.

14

ST951

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

tapered roller, right hand pinion shaft

1шт.

15

401883R1

SHIM

0.003 inch thick

1шт.

15

401884R1

SHIM

0.005 inch thick

1шт.

15

401885R2

SHIM,102mm ID x 110mm OD x 0.18mm Thk

(0.007")

1шт.

15

184195C1

SHIM

0.030 inch thick

1шт.

16

403363R1

BEARING CAP,73.4 mm ID x 101.5 mm OD x 54.1 mm

CAGE bearing, right

1шт.

17

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT hex, 3/8 NC x 1-3/8 inch

3шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.
