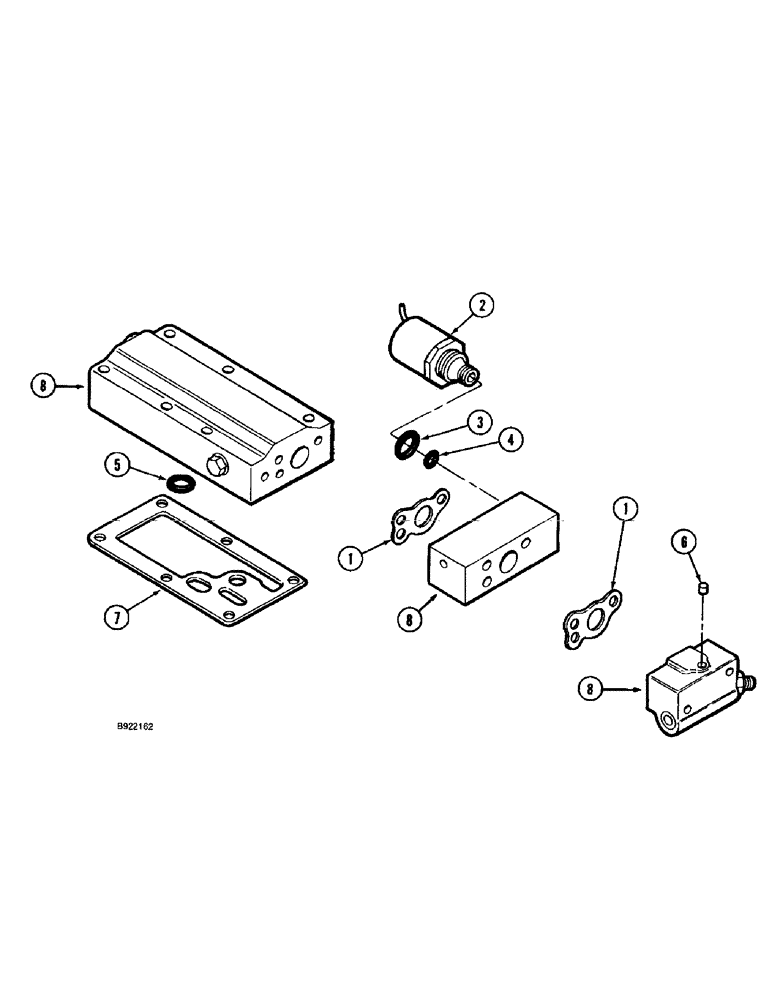

Запчасти Case IH 1688 (6-46) - HYDROSTATIC MOTOR ASSEMBLY, MOTOR CONTROL VALVE, TWO SPEED (03) - POWER TRAIN

145336C92

VALVE

ASSEMBLY motor control, Includes: Ref. 1 - 8

1шт.

1

1272954C1

GASKET,0.43mm Thk

valve body

2шт.

Part of KIT, part number 92649C1

1шт.

2

145338C2

SOLENOID

control valve, Includes: Ref. 3 and 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

5

92647C1

O-RING,7.52mm ID x 0.574" OD x 3.53mm

retaining

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG valve body, order 92649C91

1шт.

Part of KIT, part number 92649C1

1шт.

7

145337C1

GASKET

control valve

1шт.

8

NSS

NOT SOLD SEPARAT

BODY valve, 3 piece

1шт.

92649C1

KIT

service, control valve body plug

1шт.
