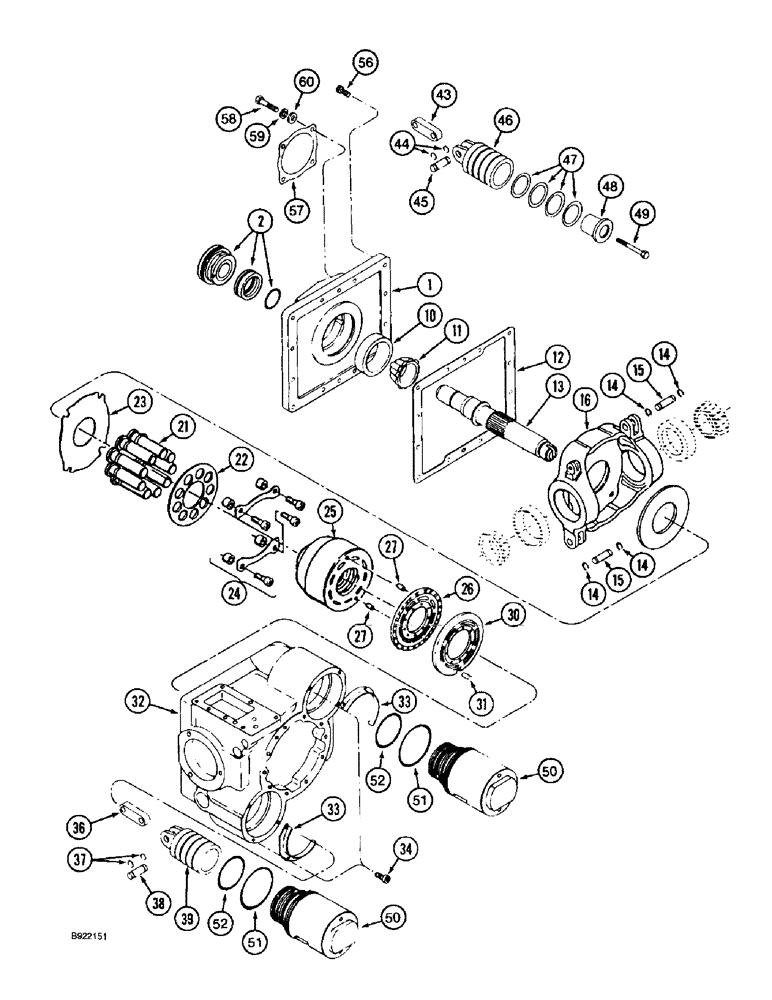

Запчасти Case IH 1688 (6-40) - HYDROSTATIC MOTOR ASSEMBLY, TWO SPEED (03) - POWER TRAIN

1343743C1

MOTOR

ASSEMBLY hydrostatic, new, parts list Figures 6-40 - 6-48, Includes: Ref. 1 - 52

1шт.

1343744C1

REMAN-HYDROSTAT MOTO

hydrostatic, remanufactured (North America only), component parts shown on this Figure do not apply to the remanufactured assembly

1шт.

1343745C1

CORE-HYDROSTAT MOTOR

RETURN NUMBER, N.A. Only..use this part number to return motor core for credit when using a remanufactured assembly

1шт.

1

NSS

NOT SOLD SEPARAT

FLANGE mounting

1шт.

2

1346205C1

SEAL KIT

SEAL shaft, three piece

1шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

tapered roller, housing

1шт.

11

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

tapered troller, input shaft

1шт.

12

142399C1

GASKET

mounting flange

1шт.

13

1980137C1

SHAFT

ASSEMBLY output

1шт.

14

142408C1

RETAINER

servo

4шт.

15

140766C1

PIN,14.22mm OD x 39.12mm L

pivot

2шт.

16

1980174C1

HOUSING

PLATE swash, variable

1шт.

1980175C1

KIT

rotating, cylinder, Includes: Ref. 21 - 27

1шт.

21

NSS

NOT SOLD SEPARAT

PISTON cylinder block

9шт.

22

NSS

NOT SOLD SEPARAT

PLATE retainer

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE retainer, clear

1шт.

24

NSS

NOT SOLD SEPARAT

KIT hold down, cylinder

1шт.

25

NSS

NOT SOLD SEPARAT

BARREL cylinder

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE bearing

1шт.

27

140754C1

PIN

dowel

2шт.

30

1980139C1

PLATE

valve

1шт.

31

140754C1

PIN

dowel

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING motor

1шт.

33

142408C1

RETAINER

servo

2шт.

34

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

BOLT hex socket, No. 8 NC x 3/8 inch

6шт.

145309C1

PISTON

ASSEMBLY servo, Includes: Ref. 36 - 49

1шт.

36

NSS

NOT SOLD SEPARAT

LINK piston servo

1шт.

37

NSS

NOT SOLD SEPARAT

RING retaining

2шт.

38

NSS

NOT SOLD SEPARAT

PIN link

1шт.

39

NSS

NOT SOLD SEPARAT

PISTON servo

1шт.

43

NSS

NOT SOLD SEPARAT

LINK piston servo

1шт.

44

NSS

NOT SOLD SEPARAT

RING retaining

2шт.

45

NSS

NOT SOLD SEPARAT

PIN link

1шт.

46

NSS

NOT SOLD SEPARAT

PISTON servo

1шт.

47

NSS

NOT SOLD SEPARAT

SHIM servo piston

4шт.

48

NSS

NOT SOLD SEPARAT

SPACER servo piston

1шт.

49

NSS

NOT SOLD SEPARAT

BOLT hex, Serial Range: spacer-piston

1шт.

50

142407C1

KIT

SLEEVE servo

2шт.

51

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

2шт.

52

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

56

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

BOLT hex, 7/16 NC x 1-1/4 inch

12шт.

57

166506C1

GASKET,0.81mm Thk

mounting

1шт.

58

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

60

283856C1

WASHER

flat, 17/32 x 1 x 3/16 inch

4шт.
