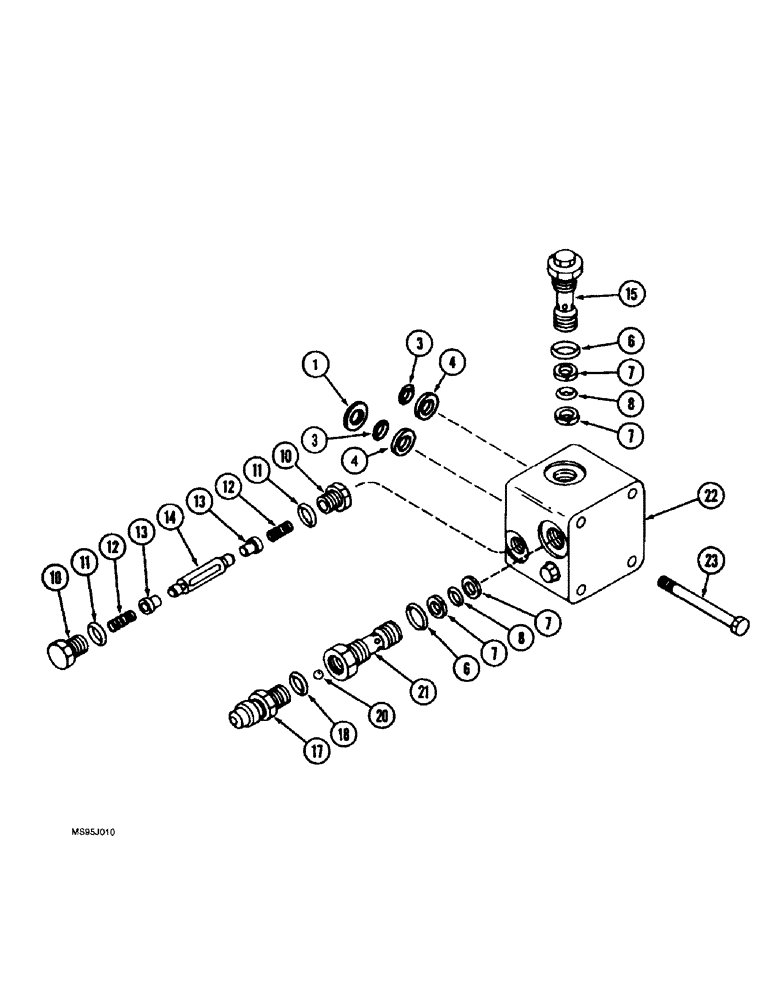

Запчасти Case IH 1688 (6-38) - HYDROSTATIC MOTOR, SINGLE SPEED, RELIEF VALVE BLOCK (03) - POWER TRAIN

1971432C2

VALVE

BLOCK ASSEMBLY relief, Includes: Ref. 1 - 22

1шт.

140747C92

SEAL KIT

KIT valve block seal, Includes: Ref. 1, 3 and 4

1шт.

1

NSS

NOT SOLD SEPARAT

RING square, 3/4 x 7/8 x 1/16 inch

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING 3/4 ID x 1/16 inch wide

2шт.

4

NSS

NOT SOLD SEPARAT

RING backup

2шт.

393885R91

GASKET KIT

relief valve seal, Includes: Ref. 6 - 8

3шт.

6

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

7

393887R1

BACK-UP RING

2шт.

8

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

145559C91

KIT

shuttle valve, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG order 145559C91 KIT

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

12

145560C1

SPRING

shuttle valve

2шт.

13

NSS

NOT SOLD SEPARAT

VALVE shuttle, order 145559C91 KIT

2шт.

14

NSS

NOT SOLD SEPARAT

SPOOL shuttle, order 145559C91 KIT

1шт.

15

140761C1

VALVE PRESSURE RELIE

Assy, low, Incl. Ref. 17 - 21

1шт.

1971415C2

VALVE

ASSEMBLY feathering relief, replaces 1971415C1, Includes: Ref. 17 - 21

2шт.

17

NSS

NOT SOLD SEPARAT

CONNECTOR special, order 1971415C2

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING 1/4 inch OD tube, order 1971415C2

1шт.

20

NSS

NOT SOLD SEPARAT

BALL steel, 1/4 inch, order 1971415C2

1шт.

21

NSS

NOT SOLD SEPARAT

CARTRIDGE valve, order 1971415C2

1шт.

22

NSS

NOT SOLD SEPARAT

BLOCK valve, order 145554C92

1шт.

23

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

hex, 3/8 NC x 4 inch

4шт.
