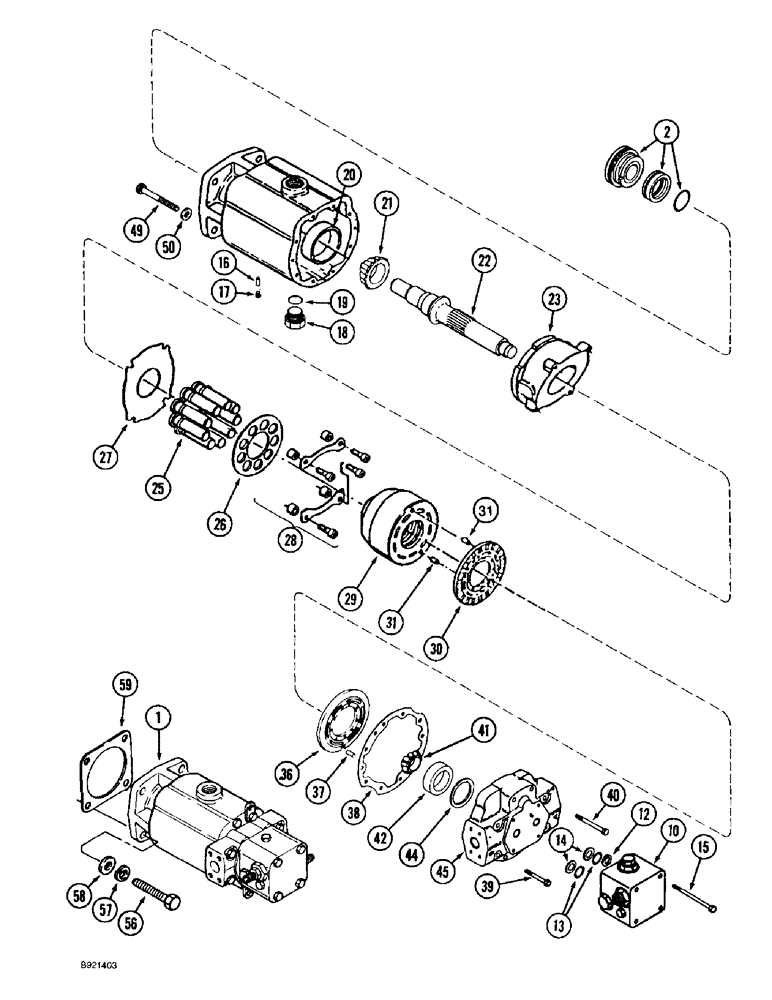

Запчасти Case IH 1688 (6-34) - HYDROSTATIC MOTOR, SINGLE SPEED, CORN AND GRAIN COMBINE (03) - POWER TRAIN

1

1343609C2

MOTOR, HYDRAULIC

ASSEMBLY hydrostatic, new, parts list Figures 6-34 - 6-38, Includes: Ref. 2 - 50

1шт.

1343610C1

REMAN-HYDROSTAT MOTO

ASSEMBLY hydrostatic, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 50

1шт.

1343611C1

CORE-HYDROSTAT MOTOR

RETURN NUMBER use this part number to return motor core for credit when using a remanufactured assembly, Includes: Ref. 2 - 50

1шт.

2

1346205C1

SEAL KIT

SEAL shaft, three piece

1шт.

10

1971432C2

VALVE

BLOCK ASSEMBLY relief, parts list Figure 6-38

1шт.

140747C92

SEAL KIT

KIT valve block seal, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

RING square, 3/4 x 7/8 x 1/16 inch

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING 3/4 ID x 1/16 inch

2шт.

14

NSS

NOT SOLD SEPARAT

RING backup

2шт.

15

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

hex, 3/8 NC x 4 inch

4шт.

16

37-1516

DOWEL,5/16" x 1"

PIN 5/16 x 1inch, hardened

1шт.

17

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss end

1шт.

20

ST863

BEARING CUP,93.22mm OD x 23.81mm W

tapered roller, output shaft

1шт.

21

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

tapered roller, output shaft

1шт.

22

1980137C1

SHAFT

ASSEMBLY output

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE swash, fixed

1шт.

1980138C1

KIT

rotating, cylinder, Includes: Ref. 25 - 31

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON cylinder block

9шт.

26

NSS

NOT SOLD SEPARAT

PLATE retaining

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE retaining, clear

1шт.

28

NSS

NOT SOLD SEPARAT

KIT hold down

1шт.

29

NSS

NOT SOLD SEPARAT

BARREL cylinder

1шт.

30

NSS

NOT SOLD SEPARAT

PLATE bearing

1шт.

31

140754C1

PIN

dowel

2шт.

36

1980139C1

PLATE

valve

1шт.

37

140754C1

PIN

dowel

3шт.

38

1980140C1

GASKET,0.38mm Thk

end cover

1шт.

39

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

BOLT hex, 7/16 NC x 2 inch

2шт.

40

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

BOLT hex, 7/16 NC x 3 inch

6шт.

1343609C2

MOTOR, HYDRAULIC

ASSEMBLY hydrostatic

1шт.

41

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

tapered roller, 1-3/16 inch ID, output shaft

1шт.

42

530741R1

BEARING CUP

tapered roller, 2-17/32 inch OD, output shaft

1шт.

142398C91

SHIM KIT

KIT, Includes: Ref. 44

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM 0.003 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM 0.005 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM 0.010 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM 0.015 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM 0.020 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM 0.030 inch

1шт.

45

NSS

NOT SOLD SEPARAT

COVER end

1шт.

49

61-33148

HEX SOC SCREW,5/16"-18 x 3"

2шт.

50

92734C1

SEALING WASHER

sealing

2шт.

56

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

56

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

57

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

58

283856C1

WASHER

flat, 17/32 x 1 x 3/16 inch

4шт.

59

166506C1

GASKET,0.81mm Thk

mounting

1шт.
