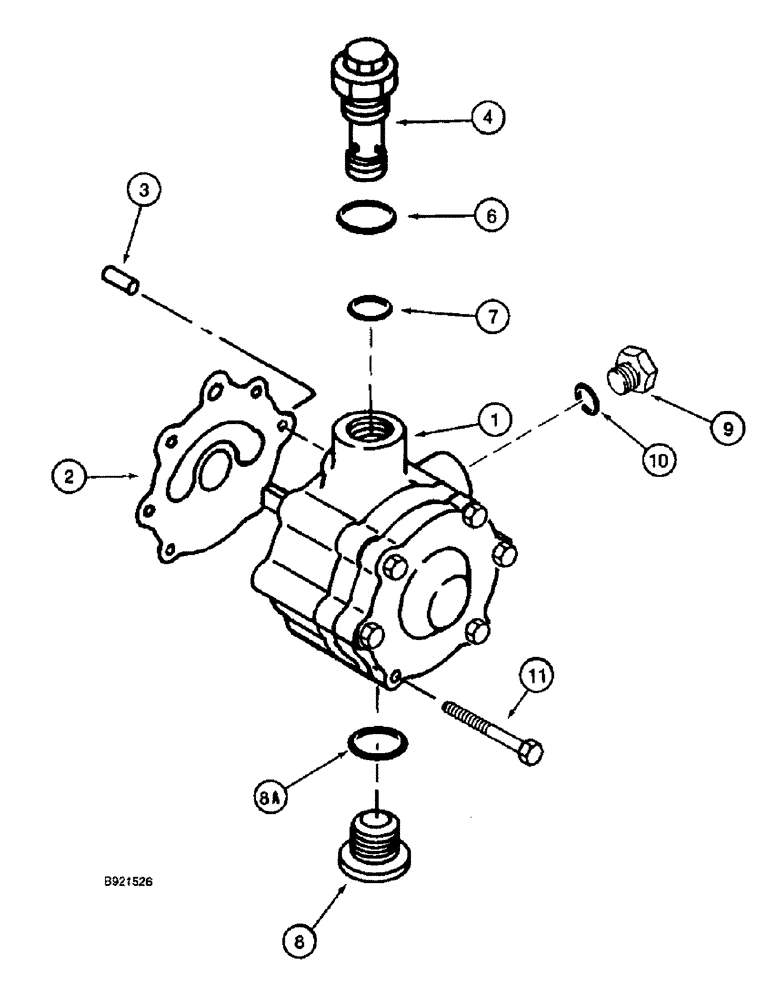

Запчасти Case IH 1688 (6-32) - HYDROSTATIC PUMP, CHARGE PUMP, RICE COMBINE (03) - POWER TRAIN

107593A2

PUMP

ASSEMBLY charge, rice combine, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY charge pump

1шт.

2

133760C2

GASKET

charge pump

1шт.

3

140754C1

PIN

dowel, 5/16 x 5/8 inch

2шт.

1986741C1

VALVE PRESSURE RELIE

ASSEMBLY low

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE relief, includes 237-6008 O-ring, Ref. 5, Includes: Ref. 4 - 7

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Mounting and system, Not shown

1шт.

6

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

7

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

8

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 8A

1шт.

8a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

326-564

BOLT,Hex, 5/16" - 18 x 4", Gr 8

4шт.

11

326-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

2шт.
