(6-30) - HYDROSTATIC PUMP, CHARGE PUMP, CORN AND GRAIN COMBINE

Запчасти Case IH 1688 (6-30) - HYDROSTATIC PUMP, CHARGE PUMP, CORN AND GRAIN COMBINE (03) - POWER TRAIN

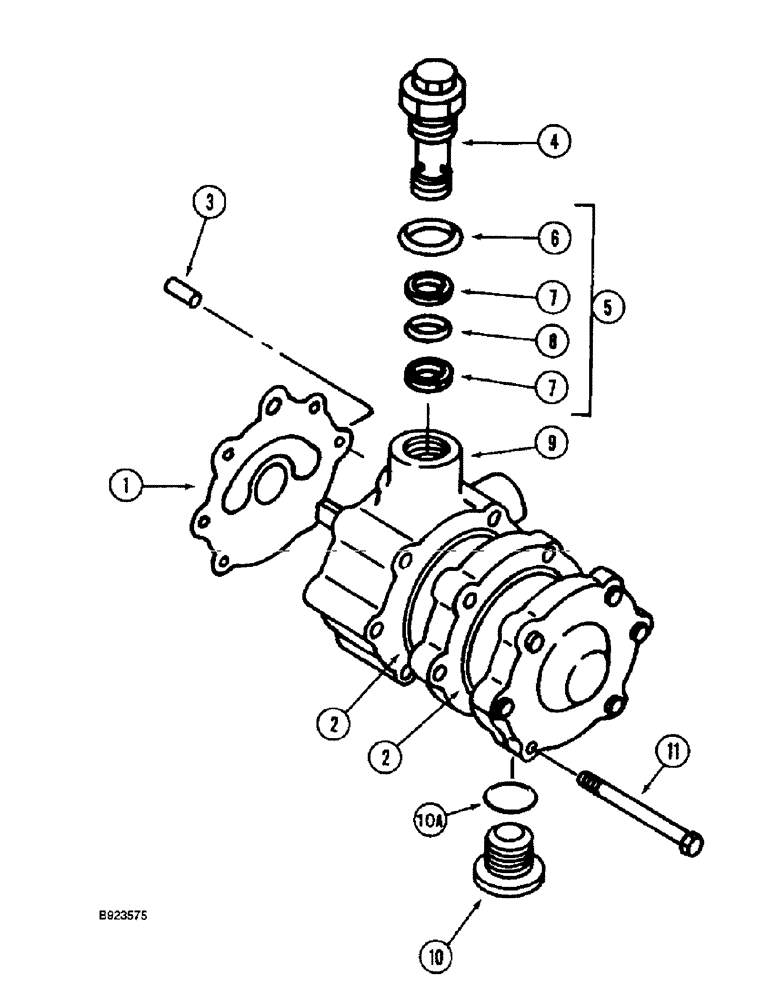

Схема запчастей Case IH 1688 - (6-30) - HYDROSTATIC PUMP, CHARGE PUMP, CORN AND GRAIN COMBINE (03) - POWER TRAIN
5
8
7
7
9
10a
4
2
1
2
6
11
10
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

92740C1

PUMP

ASSEMBLY charge, 10 gallon, corn and grain, Includes: Ref. 1 - 9

1шт.

1

133760C2

GASKET

charge pump

1шт.

2

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

2шт.

3

140754C1

PIN

dowel, 5/16 x 5/8 inch

2шт.

4

140771C1

VALVE

relief, low pressure

1шт.

5

393885R91

GASKET KIT

relief valve seal, Includes: Ref. 6 - 8

1шт.

6

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

7

393887R1

BACK-UP RING

2шт.

8

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

BODY pump

1шт.

10

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 10A

1шт.

10a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

BOLT hex, 5/16 NC x 3-1/2 inch

4шт.
