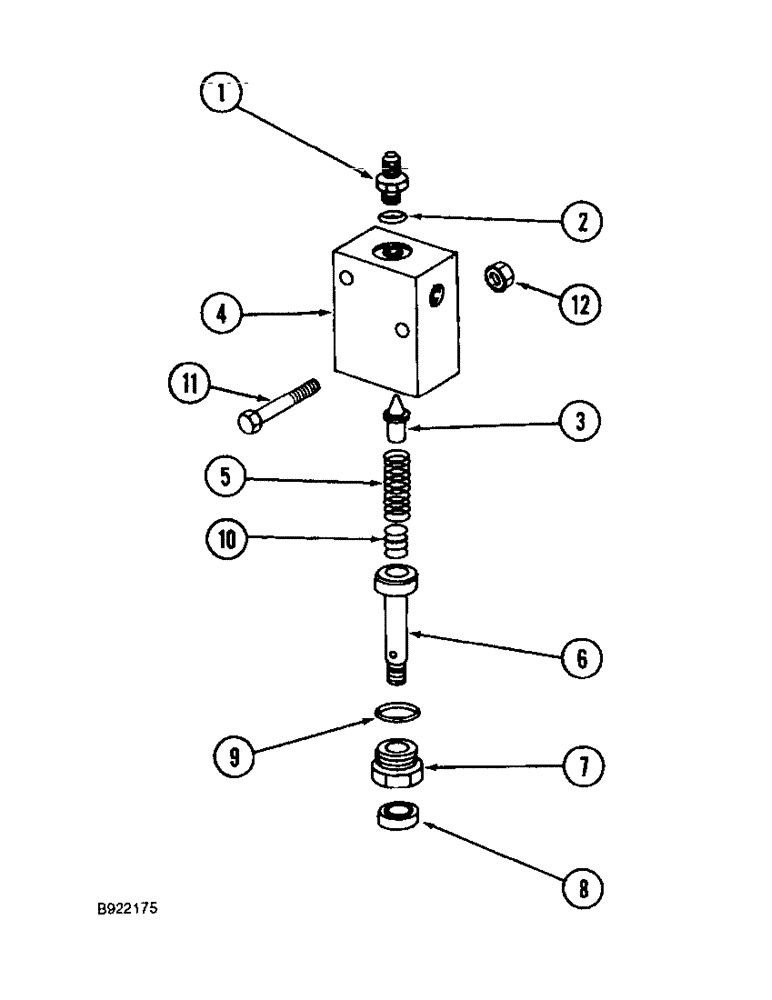

Запчасти Case IH 1688 (6-18) - FOOT-N-INCH VALVE ASSEMBLY (03) - POWER TRAIN

1986875C1

VALVE

ASSEMBLY Foot-N-Inch, 6000 PSI, housing stamped 60-75, used with corn and grain units, Includes: Ref. 1 - 10

1шт.

1986876C1

VALVE

ASSEMBLY Foot-N-Inch, 6500 PSI, housing stamped 65-76, used with rice units only, Includes: Ref. 1 - 10

1шт.

1

398709R2

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 JIC

poppet valve

1шт.

2

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

3

398710R1

VALVE POPPET

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING valve

1шт.

5

539751R1

SPRING

poppet

1шт.

6

398708R1

STOP

ROD poppet spring

1шт.

7

398707R1

GUIDE

RETAINER oil seal

1шт.

8

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

oil

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

530575R91

SHIM KIT

KIT relief valve, Includes shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM 0.005 inch

4шт.

NSS

NOT SOLD SEPARAT

SHIM 0.007 inch

4шт.

NSS

NOT SOLD SEPARAT

SHIM 0.020 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM 0.042 inch

1шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

12

231-5146

FLANGE NUT,3/8"-16

2шт.
