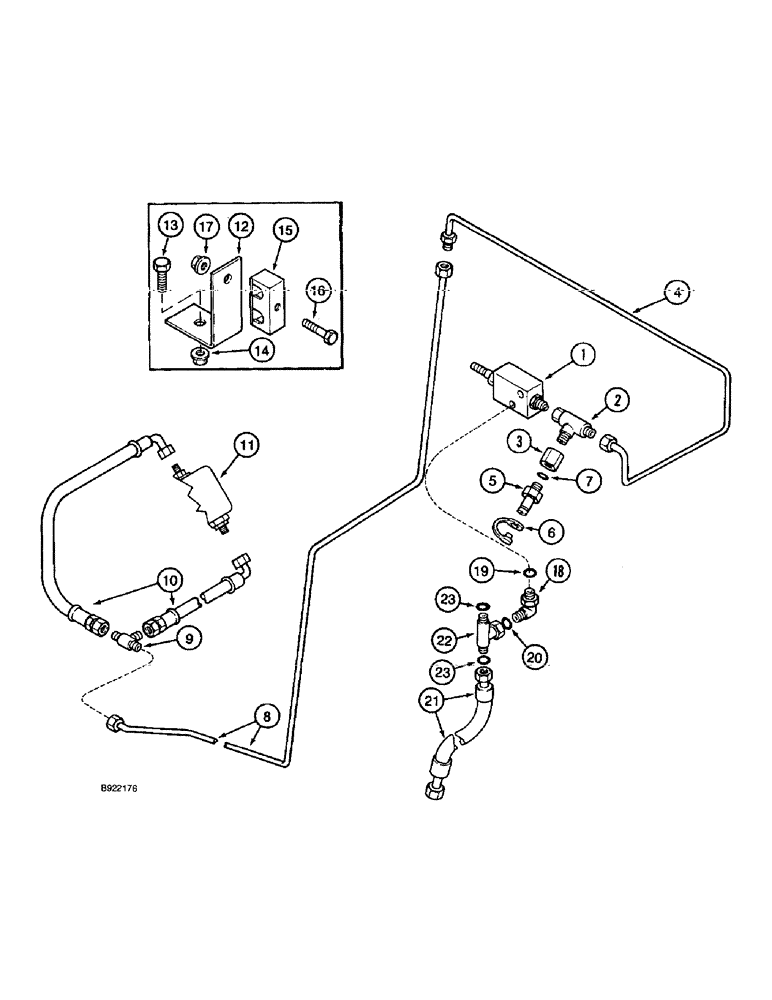

Запчасти Case IH 1688 (6-16) - FOOT-N-INCH VALVE SYSTEM (03) - POWER TRAIN

1

REF

INSTRUCTION

VALVE ASSEMBLY Foot-N-Inch, see parts list Figure 6-18 for correct valve

1шт.

2

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

TEE 7/16-20 inch flare branch x flare x swivel

1шт.

3

1541796C1

FITTING

CONNECTOR special, 7/16-20 fem x 9/16-18 inch fem

1шт.

4

1541794C1

HYD TUBE

upper, hydrostatic motor to Foot-N-Inch valve

1шт.

5

1541849C1

COUPLING

ASSEMBLY diagnostic, Includes: Ref. 6 and 7

1шт.

6

H434163

DUST CAP

Coupling

1шт.

8

111895A1

HYD TUBE

lower, hydrostatic motor to Foot-N-Inch valve

1шт.

9

218-591

TEE,7/16"-20, 37 Degree

TEE 7/16-20 inch flare branch x flare x flare

1шт.

10

175760C2

HYDRAULIC HOSE,6.35mm ID x 254mm L, SAE 100R2

10 inch (254 mm) long

2шт.

11

REF

INSTRUCTION

MOTOR ASSEMBLY hydrostatic, see parts list Figures 6-10 or 6-12 for correct motor

1шт.

12

178950C1

ANGLE

SUPPORT tube

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

14

231-5146

FLANGE NUT,3/8"-16

1шт.

15

183820C1

CLAMP

tube

2шт.

16

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

18

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adj O-Ring boss, Incl Ref 19 and 20

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

1989506C1

HOSE

54-1/2 inch (1385 mm) long

1шт.

22

201-411

TEE,13/16"-16 ORFS x 13/16"-16 Sw Br

13/16-16 inch swivel face branch x face x face, Includes: Ref. 23

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
