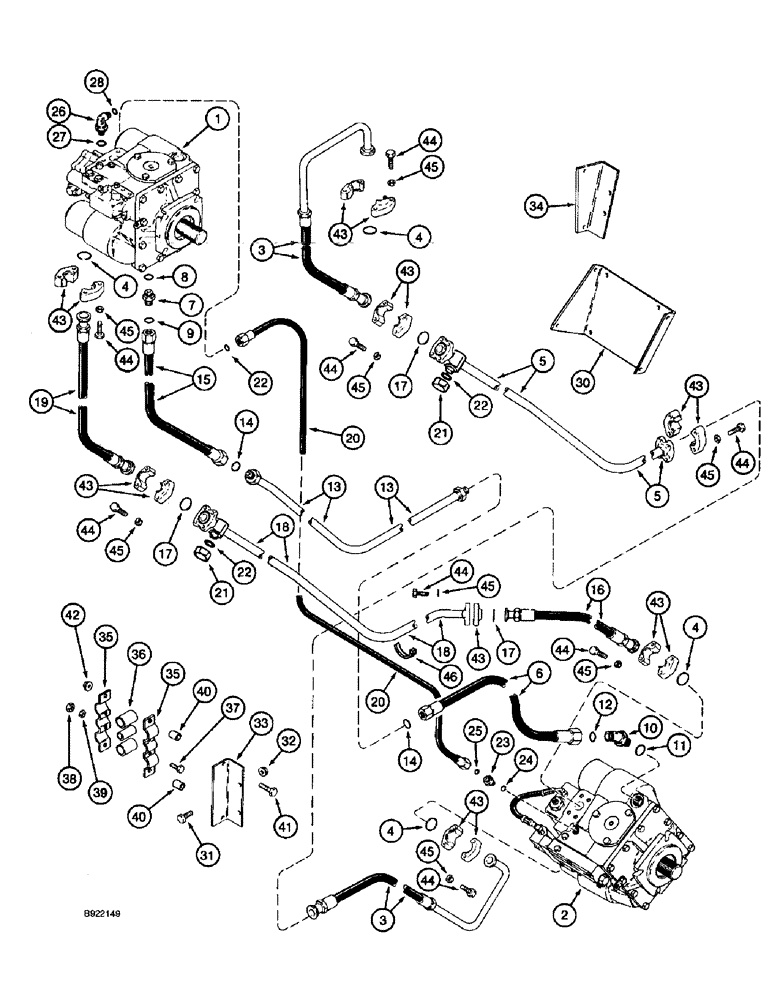

Запчасти Case IH 1688 (6-12) - HYDROSTATIC PUMP AND MOTOR SYSTEM, TWO SPEED MOTOR, CORN, GRAIN, AND RICE COMBINE (03) - POWER TRAIN

1

1343716C2

PUMP, HYDROSTATIC

HYDROSTATIC PUMP ASSEMBLY corn and grain, parts list Figures 6-22 - 6-30

1шт.

1

87637528R

REMAN-HYDROSTAT PUMP

Corn And Grain

1шт.

1

87637528C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

108113A1

PUMP, HYDROSTATIC

SPARE PART ASSEMBLY rice, parts list Figures 6-22 - 6-28 and 6-32

1шт.

1

87637529R

REMAN-HYDROSTAT PUMP

Rice

1шт.

1

87637529C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

1343743C1

MOTOR

ASSEMBLY hydrostatic, two speed, corn, grain and rice, parts list Figures 6-40 - 6-48

1шт.

3

1979955C2

HOSE

33-7/8 inch (860 mm) long, reverse pressure

2шт.

4

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

5

1541757C2

HYD TUBE,1" OD, 2045.6, 225.2 mm Length

TUBE reverse pressure, 1 inch OD

1шт.

6

1979935C1

HOSE

38 inch (965 mm) long, case drain, lower

1шт.

7

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Adapter - straight,, Incl Ref 8 and 9

2шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

10

201-351

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

45 degree, 1-7/16-12 face seal x 1-1/16-12 inch adj O-ring boss, Includes: Ref. 11 and 12

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

13

1979932C1

HYD TUBE

TUBE case drain

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

15

115619A1

HOSE,25.4mm ID x 474mm L, SAE 100R1

18-11/16 inch (474 mm) long, case drain, lower

1шт.

16

1979953C3

HOSE,25.4mm ID x 717mm L

27-7/8 inch (706 mm) long, forward lower pressure

1шт.

17

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

18

1541756C1

PIPE

TUBE forward pressure, 1 inch OD

1шт.

19

1979952C3

HOSE,25.4mm ID x 546mm L

21-1/2 inch (546 mm) long, forward upper pressure

1шт.

20

1347126C1

HOSE

167 inch (4250 mm) long, charge pressure

1шт.

21

201-907

CAP,1-3/16" - 12 ORFS

If used, Includes Ref. 22

2шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

23

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

ADAPTER straight, 9/16-18 face seal x 7/16-20 inch O-ring boss, Includes: Ref. 24 and 25

1шт.

24

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

26

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

90 degrees, 9/16-18 face seal x 7/16-20 inch adj O-ring boss, Includes: Ref. 27 and 28

1шт.

27

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

28

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

30

1979941C1

SUPPORT

hydrostatic tube, rear

1шт.

31

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self-locking, special, 3/8 NC x 1 inch

6шт.

32

231-5146

FLANGE NUT,3/8"-16

6шт.

33

1347034C1

SUPPORT

BRACKET tube, rear

1шт.

34

1347033C1

SUPPORT

BRACKET tube, front

1шт.

35

1347156C1

SHIN

CLAMP half, tube

6шт.

36

187935C1

STRIP

SLEEVE pressure tube clamp

9шт.

37

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

38

425-105

NUT,5/16"-18, G5

6шт.

39

492-11031

LOCK WASHER,5/16"

6шт.

40

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

3/8 ID x 1 inch

6шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

42

231-5146

FLANGE NUT,3/8"-16

6шт.

43

S97224

CLAMP

CLAMP split, 1 inch

16шт.

44

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

32шт.

45

492-11044

LOCK WASHER,7/16"

32шт.

46

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

3шт.
