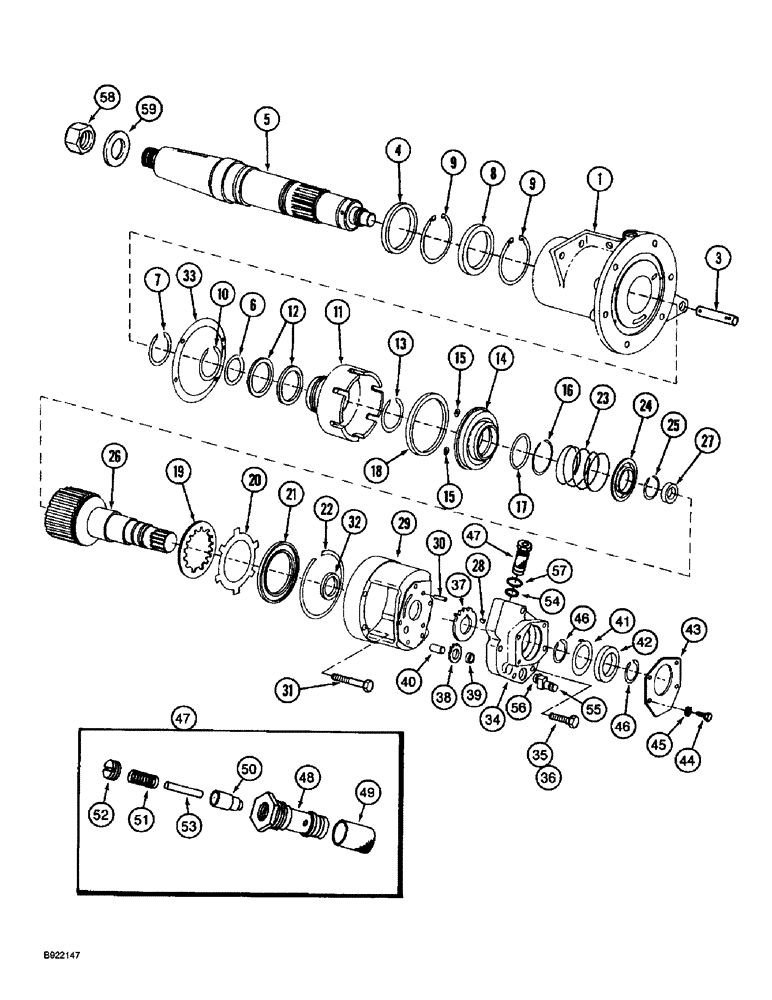

Запчасти Case IH 1688 (6-06) - POWER TAKEOFF CLUTCH ASSEMBLY, PRIOR TO CLUTCH SERIAL NUMBER 118860 (03) - POWER TRAIN

1541764C1

CLUTCH ASSEMBLY

separator drive, Includes: Ref. 1 - 59

1шт.

1

1541848C1

HOUSING

clutch

1шт.

3

1315229C2

PIN,25.4mm OD x 135mm L

pivot

1шт.

4

188252C1

SEAL,70.8mm ID x 110.13mm OD x 11mm Thk

clutch housing

1шт.

5

1329902C1

SHAFT

separator drive

1шт.

6

238-7138

O-RING,0.103" Thk x 2.112" ID, -138, Cl 7, 75 Duro

1шт.

7

357194R1

RING

retaining

1шт.

8

1541817C1

BALL BEARING,60mm ID x 110mm OD x 22mm W

separator shaft, standard, if used

1шт.

8

1541818C1

BEARING,60 mm ID x 110 mm OD x 22 mm

separator shaft, optional, if used

1шт.

9

101-21433

SNAP RING,#433, 4.641", Int

2шт.

10

271130R1

RING

retaining, clutch cup locating

1шт.

11

182789C2

CUP

clutch

1шт.

12

381485R1

RING,67.13mm ID x 72.21mm OD x 3.12mm Thk

seal, clutch cup

2шт.

13

68625C1

RING

retaining, clutch cup

1шт.

14

1302115C91

PISTON

ASSEMBLY clutch, Includes: Ref. 15

1шт.

15

529376R1

STRAINER ELEMENT

SCREEN piston orifice

2шт.

16

100-11187

SNAP RING,#187, Ext

1шт.

17

238-7328

O-RING,0.21" Thk x 1.85" ID, -328, Cl 7, 75 Duro

1шт.

18

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

SEAL piston, clutch

1шт.

186397A1

SERVICE KIT,Service Package, Drive and Driven Plates

KIT clutch, disc and plate, replaces 1541890C1, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE clutch, drive

10шт.

20

NSS

NOT SOLD SEPARAT

DISC clutch, driven

10шт.

21

139202C1

RETAINER

clutch driven disc

1шт.

22

381492R1

CIRCLIP,M137.16 x 3.07mm Thk, Int

RING snap, clutch driven disc

1шт.

23

381493R1

SPRING

clutch release

1шт.

24

381494R1

RETAINER

clutch release spring

1шт.

25

370504R1

RING

retaining, clutch release spring

1шт.

26

68081C2

SHAFT

drive

1шт.

27

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

drive shaft

1шт.

28

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

29

1989681C2

HOUSING

CARRIER ASSEMBLY clutch, replaces 1989681C1, Includes: Ref. 30

1шт.

30

37-1512

DOWEL,5/16" x 3/4"

PIN 5/16 x 3/4 inch, hardened

2шт.

31

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

32

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

needle, clutch carrier

1шт.

33

529565R2

GASKET,0.79mm Thk

clutch carrier

1шт.

34

67330C1

HOUSING

clutch pump

1шт.

35

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

36

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

37

381499R1

PINION

GEAR clutch pump driver

1шт.

38

381500R1

PINION

GEAR clutch pump idler

1шт.

39

S108204

NEEDLE BEARING,Needle, 15.75mm ID x 22.35mm OD x 12.7mm W

needle, pump gear

1шт.

40

381502R1

SHAFT

idler gear

1шт.

41

193369C1

RETAINER

pump housing

1шт.

42

ST571

BALL BEARING,40 mm ID x 68 mm OD x 15 mm

pump housing

1шт.

43

191421C1

BEARING HOUSING

pump housing bearing

1шт.

44

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

45

492-11025

LOCK WASHER,1/4"

4шт.

46

555570R1

SNAP RING

retaining, pump housing bearing

2шт.

47

69040C93

VALVE

ASSEMBLY regulator, replaced by 69040C94, Includes: Ref. 48 - 53

1шт.

47

69040C94

VALVE

ASSEMBLY regulator, replaces 69040C93, Includes: Ref. 48 - 53

1шт.

48

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

49

69042C2

STRAINER ELEMENT

valve

1шт.

50

NSS

NOT SOLD SEPARAT

POPPET valve

1шт.

51

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

52

NSS

NOT SOLD SEPARAT

SCREW valve

1шт.

53

NSS

NOT SOLD SEPARAT

PIN valve

1шт.

54

238-8015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 8, 90 Duro

1шт.

55

188450C1

FITTING

pump connection

1шт.

56

381526R1

SEAL,25.3mm ID x 36.2mm OD x 4.78mm Thk

fitting

1шт.

57

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

58

232-41320

LOCK NUT,1 1/4"-7, GC

1шт.

59

396-41131

WASHER,1 3/8" x 3" x 1/4", HDN

flat, hardened, 1-3/8 x 3 x 1/4 inch

1шт.
