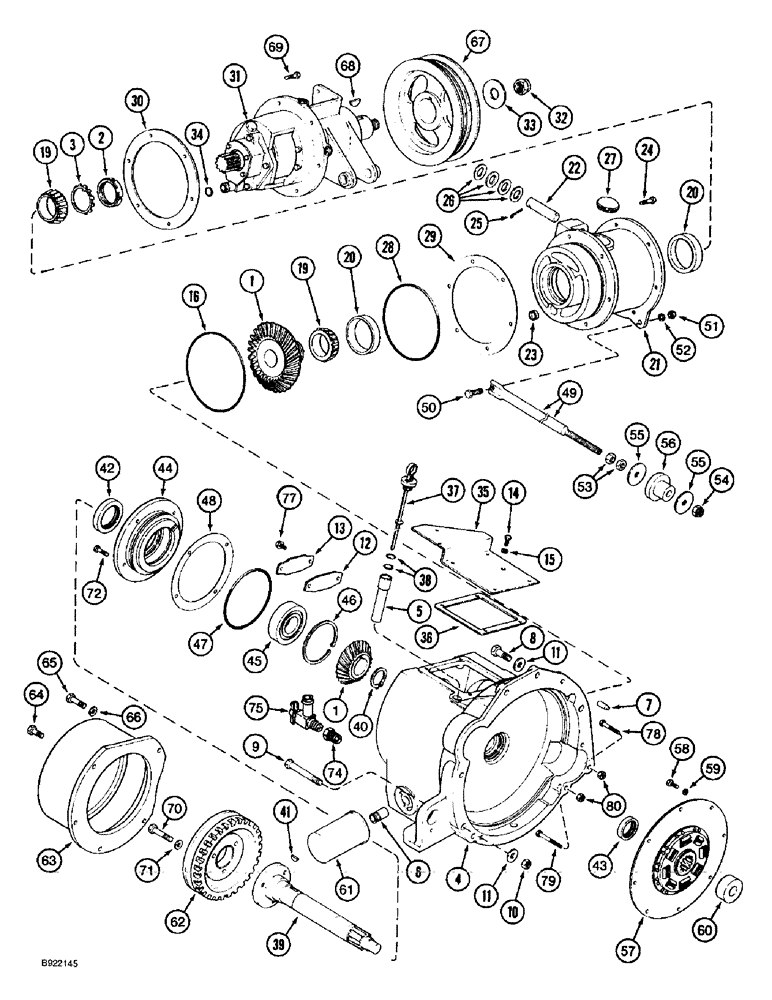

Запчасти Case IH 1688 (6-02) - POWER TAKEOFF DRIVE (03) - POWER TRAIN

1

184497C2

GEAR-SET

KIT separator drive, 41 and 31 teeth, matched set

1шт.

2

191283C1

BEARING LOCK NUT

bearing lock

1шт.

3

192-364

LOCK WASHER

bearing lock, SAE No. TW-113

1шт.

4

184427C3

HOUSING

ASSEMBLY engine PTO, Includes: Ref. 5 - 7

1шт.

5

188072C1

TUBE,25.4 mm OD, 127 mm Length

dipstick, oil

1шт.

6

188214C1

FITTING

housing filter

1шт.

7

1330136C1

DOWEL

PIN locating

2шт.

8

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

2шт.

9

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

hex, 5/8 NC x 4 inch

4шт.

10

425-1010

NUT,5/8"-11, G5

4шт.

11

495-81027

WASHER,21/32" x 1 1/2" x .120"

flat, 21/32 x 1-1/2 x 7/64 inch

6шт.

12

185057C2

GASKET,0.91mm Thk

access cover

1шт.

13

185056C1

COVER

bolt access hole

1шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

238-8267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 8, 90 Duro

PTO housing

1шт.

19

630694C1

BEARING CONE,64.98mm ID x 105mm OD x 24mm W

tapered roller

2шт.

20

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

tapered roller

2шт.

21

188161C91

HOUSING

ASSEMBLY separator drive clutch, Includes: Ref. 22 and 23

1шт.

22

195439C2

PIN,25.29mm OD x 101.6mm L

clutch housing

1шт.

23

41-1616

PLUG,Cup, 1", Stainless

1шт.

24

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

25

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

26

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

flat, 1-1/32 x 1-3/4 x 1/16 inch

4шт.

27

663906R1

CAP

wheel hub, clutch housing

1шт.

28

188279C1

O-RING,0.139" Thk x 7.984" ID, -266, Cl 6, 90 Duro

clutch housing

1шт.

188195C1

SHIM KIT

KIT shim, housing, Includes: Ref. 29

1шт.

29

NSS

NOT SOLD SEPARAT

SHIM 0.005 inch, separator clutch housing

1шт.

29

NSS

NOT SOLD SEPARAT

SHIM 0.007 inch, separator clutch housing

1шт.

29

NSS

NOT SOLD SEPARAT

SHIM 0.010 inch, separator clutch housing

1шт.

29

NSS

NOT SOLD SEPARAT

SHIM 0.030 inch, separator clutch housing

1шт.

30

188425C2

GASKET,0.79mm Thk

clutch, Serial Range: housing-clutch

1шт.

31

1541764C2

CLUTCH ASSEMBLY

separator drive, parts list Figures 6-6 and 6-8, replaces 1541764C1

1шт.

32

232-41320

LOCK NUT,1 1/4"-7, GC

1шт.

33

396-41131

WASHER,1 3/8" x 3" x 1/4", HDN

flat, hardened, 1-3/8 x 3 x 1/4 inch

1шт.

34

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

Pump connecting fitting

1шт.

35

188451C1

COVER

PTO housing

1шт.

36

191830C2

GASKET

PTO cover

1шт.

37

186019C91

DIPSTICK

PTO housing oil, Includes: Ref. 38

1шт.

38

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

39

192816C2

SHAFT

drive, PTO

1шт.

40

100-12200

SNAP RING,#200, Ext

Drive shaft

1шт.

41

126-176

WOODRUFF KEY,#128, 5/16" x 2-1/8", HT

1шт.

42

173133C91

OIL SEAL,64.26mm ID x 92.15mm OD x 11mm Thk

shaft, 3-5/8 inch OD

1шт.

43

173559C92

SEAL,45.59mm ID x 66.73mm OD x 11mm Thk

shaft, 2-5/8 inch OD

1шт.

44

192817C2

FLANGE,92.02 mm ID x 241.249 mm OD x 54.61 mm

drive shaft bearing housing

1шт.

45

1541765C1

BEARING, BALL,55 mm ID x 120 mm OD x 29 mm

4-23/32 inch OD

1шт.

46

100-22475

SNAP RING,4.78", Int, #475

1шт.

47

238-8260

O-RING,0.139" Thk x 6.48" ID, -260, Cl 8, 90 Duro

1шт.

188196C1

SHIM KIT

KIT shim, hub, Includes: Ref. 48

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM 0.030 inch, drive shaft hub

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM 0.010 inch, drive shaft hub

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM 0.007 inch, drive shaft hub

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM 0.005 inch, drive shaft hub

1шт.

49

1315648C1

ROD

ROD snubber, engine

1шт.

50

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

51

425-108

NUT,1/2" - 13, Gr 5

1шт.

52

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

53

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

2шт.

54

231-46110

LOCK NUT,5/8"-18, GB

1шт.

55

107813R1

WASHER

flat, engine snubber, 21/32 x 2-1/2 x 11/64 inch

2шт.

56

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR engine snubber

1шт.

57

184429C2

CLUTCH DISC,352.4mm OD

CLUTCH DISK PLATE PTO drive

1шт.

184429C2R

REMAN-CLUTCH DISC

1688 (1/93-12/94)

1шт.

184429C2C

CORE-CLUTCH DISC

Return Number

1шт.

58

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

8шт.

59

392-21038

LOCK WASHER,3/8"

3/8"

8шт.

60

1324896C2

BUSHING,29.99mm ID x 71.98mm OD x 27mm L

flywheel

1шт.

61

70203C2

HYDRAULIC OIL FILTER

PTO

1шт.

62

1330488C1

PULLEY

drive, auxiliary pump, 8.85 inch OD

1шт.

63

1303141C2

HOUSING

hydrostatic pump

1шт.

64

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

3шт.

65

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

66

283856C1

WASHER

flat, 17/32 x 1 x 3/16 inch

2шт.

67

1541713C1

PULLEY

separator drive, 11 inch OD

1шт.

68

126-179

WOODRUFF KEY,#V, 1/2" x 2-3/4", HT

1шт.

69

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

70

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

3шт.

71

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

3шт.

72

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

74

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

75

301803R1

SHUT-OFF VALVE

drain

1шт.

77

1327763C1

SCREW,Hex Wshr Hd, 3/8" - 16 x 3/4"

hex washer head, 3/8 NC x 3/4 inch

2шт.

78

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

79

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

hex, 3/8 NC x 3-3/4 inch

1шт.

80

425-106

NUT,3/8"-16, Cl 5

2шт.
