Запчасти Case IH 1688 (3-14) - THROTTLE CONTROL (02) - FUEL SYSTEM

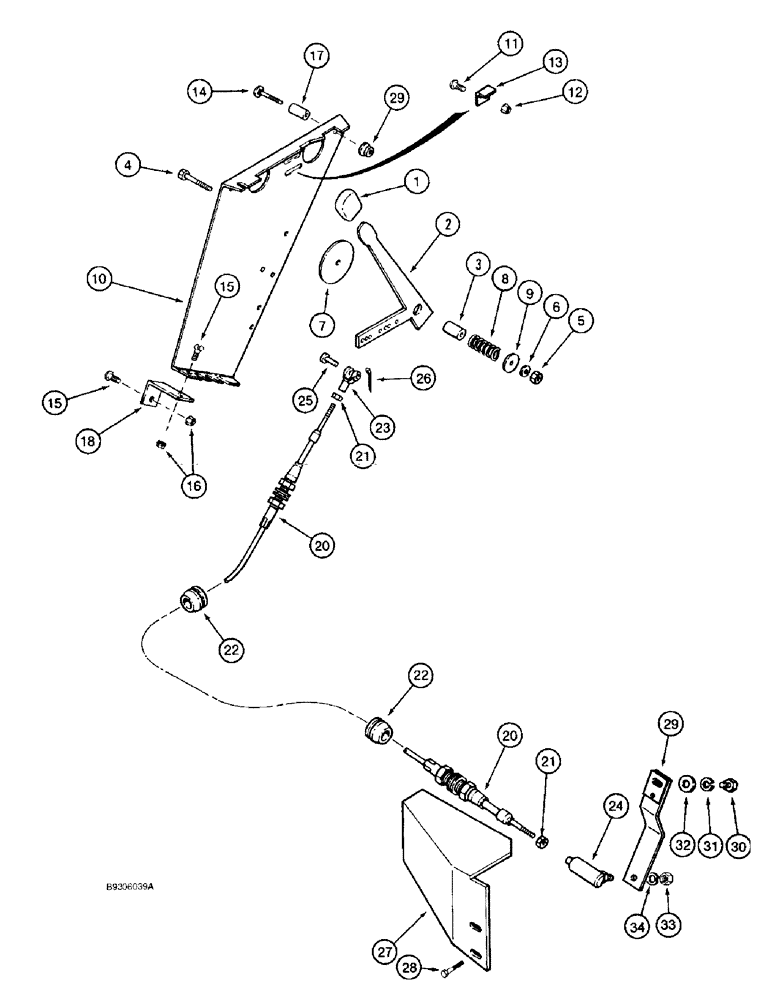

Схема запчастей Case IH 1688 - (3-14) - THROTTLE CONTROL (02) - FUEL SYSTEM
27
11
15
20
31
33
28
22
26
4
34
8
30
5
13
29
29
18
23
1
25
15
2
20
6
24
10
17
14
21
16
32
12
21
3
7
9
22

Артикул

Название

Примечание

Количество

1

1259760C1

BALL KNOB

throttle lever

1шт.

2

1301183C96

LEVER ASSY.

throttle control

1шт.

3

154397C1

SPACER,5/8" Tube x 1 1/4"

tubular, 5/8 OD x 1-1/4 inch long

1шт.

4

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

5

425-106

NUT,3/8"-16, Cl 5

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

941133C1

WASHER

throttle lever

1шт.

8

PO22

SPRING

throttle control lever

1шт.

9

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

10

1977092C4

SUPPORT

throttle control

1шт.

11

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

slotted truss head, 1/4 NC x 1/2 inch

2шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

13

1338891C4

ANGLE

throttle stop

1шт.

14

12-632

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 2", Gr 2

2шт.

15

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

2шт.

16

231-5146

FLANGE NUT,3/8"-16

4шт.

17

K11064

SPACER,3/8" Pipe x 1 1/4"

3/8 ID x 1-1/4 inch

2шт.

18

1301242C1

BRACKET

throttle support

1шт.

20

1329389C1

CABLE

throttle

1шт.

21

225-14210

NUT,#10-32

2шт.

22

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

rubber, 3/8 inch ID, throttle cable at grain tank

2шт.

23

213-113

ADJUSTABLE CLEVIS,#10-32

adjustable, No. 10 NF

1шт.

24

1977009C4

BALL JOINT

No. 10, type AL, replaces 1977009C3

1шт.

25

427-3071

CLEVIS PIN,3/16" x .719"

clevis, 3/16 x 23/32 inch, hardened

1шт.

26

432-416

COTTER PIN,1/16" x 1"

1/16" x 1"

1шт.

27

1977034C2

SUPPORT

throttle cable, rear

1шт.

28

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

29

1977046C4

LEVER

pump throttle

1шт.

30

615-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

BOLT hex, full threads, 6 - 1.0 x 16 mm

2шт.

31

892-11006

LOCK WASHER,M6

2шт.

32

495-81006

WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk

flat, 17/64 x 3/4 x 1/16 inch

2шт.

33

425-114

NUT,1/4"-28, G5

1шт.

34

492-11025

LOCK WASHER,1/4"

1шт.

Выбрано товаров: 33
