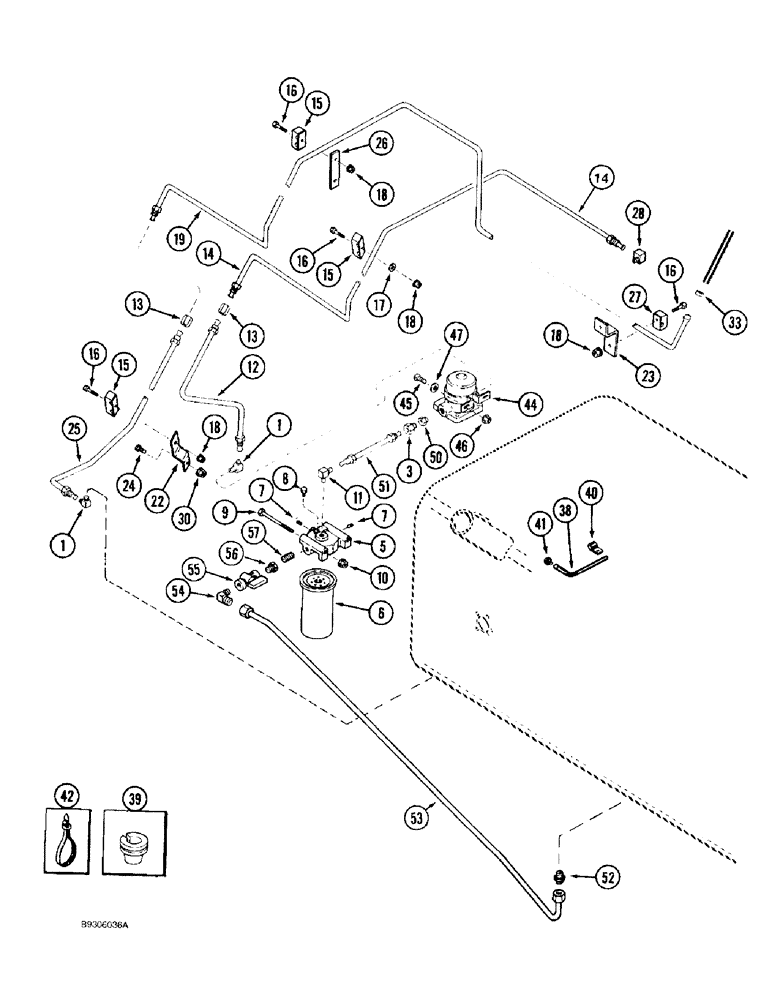

Запчасти Case IH 1688 (3-10) - FUEL LINE SYSTEM (02) - FUEL SYSTEM

1

144535R1

ELBOW

90 degree, special, 3/8 inch inverted flare

2шт.

3

222-1016

HYD CONNECTOR,5/8"-18 Inv Fl x 1/4" NPT

1шт.

5

612277C2

FILTER HEAD

fuel filter

1шт.

6

A184776

FUEL FILTER

1шт.

7

221-841

PLUG

hex socket, 1/4 inch PT

2шт.

8

444614

PLUG,Hex Hd, 1/8"-27, Brass

hex, 1/8 inch PT

1шт.

9

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

BOLT hex, 5/16 NC x 4 inch, grade 2

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

11

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

1шт.

12

1977001C1

HYD TUBE

fuel supply, lower

1шт.

13

222-1055

HYD CONNECTOR,3/8" Inv Fl

COUPLING 5/8-18 inch inverted flare

2шт.

14

1330557C1

FUEL TUBE

fuel supply, upper

1шт.

15

183825C1

CLAMP

fuel tube

3шт.

17

495-81121

WASHER,.344" x 1 1/2" x .060"

flat, 11/32 x 1-1/2 x 1/16 inch

1шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

19

1330558C3

FUEL TUBE

fuel return, upper

1шт.

22

1977005C1

SUPPORT

fuel tube, lower

1шт.

23

121525A1

SUPPORT

fuel tube

1шт.

24

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

1шт.

25

183653C2

FUEL TUBE

fuel return, lower

1шт.

26

1330564C1

PLATE

SUPPORT fuel tube

1шт.

27

183821C1

CLAMP

lower tubes

1шт.

28

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

1шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

33

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Adjustable

1шт.

38

1251794C1

FUEL TUBE,2946.40 mm, SAE J844C

Fuel Tank Vent, Cut From Bulk Tube, See this Figure

1шт.

39

195803C1

GROMMET

tube, 3/8 inch OD

1шт.

40

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP P-type

3шт.

41

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

Adj, hose retaining

1шт.

42

533959R1

CABLE TIE,.135" x 11"

CABLE STRAP tie, 10 inch

1шт.

44

196503C2

PUMP

fuel, electric

1шт.

45

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

slotted truss head, 5/16 NC x 1-1/4 inch

2шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

47

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

flat, 13/32 x 1-1/8 x 9/64 inch, hardened

2шт.

50

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

1шт.

51

1977000C1

HYD TUBE,0.375" OD

filter to pump

1шт.

52

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

straight, 3/4-16 flare x 3/8 inch PT

1шт.

53

1994883C1

FUEL TUBE

fuel, lower suction

1шт.

54

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ELBOW 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

55

1345205C1

SHUT-OFF VALVE

fuel shut off

1шт.

56

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

REDUCER pipe, 1/2 male x 1/4 inch female

1шт.

57

217-195

FITTING,1/4" - 18 Male NPTF x 1/4" - 18 Male NPTF

NIPPLE straight, 1/4 PT x 1-3/8 inch, brass, if used

1шт.

57

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

(NIPPLE - Hex) x 1-7/16" lg., steel, if used

1шт.

74813C1

TUBE,7.09mm ID x 15240mm L

bulk, 3/8 (9.5) OD x 600 inch (15240 mm) long

1шт.

16

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
