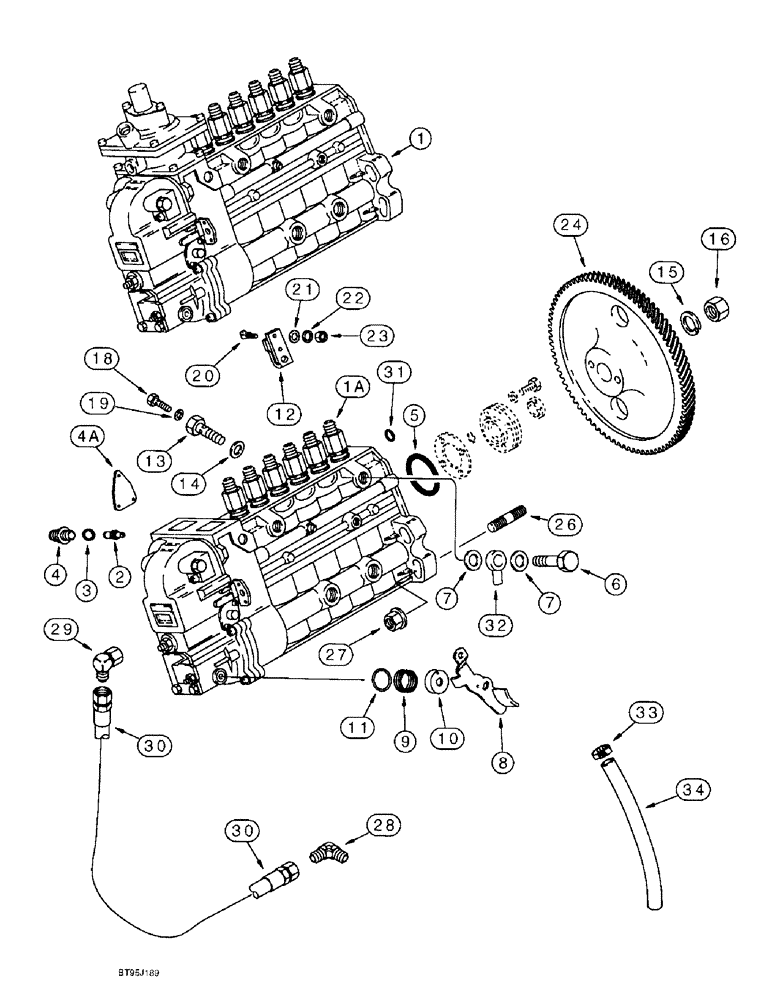

Запчасти Case IH 1688 (3-06) - FUEL INJECTION PUMP AND DRIVE, 6TA-830 ENGINE (02) - FUEL SYSTEM

1a

J925549

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY fuel, without aneroid, Includes: Ref. 2 - 23

1шт.

1a

JR925549

REMAN-INJECTION PUMP

Assembly fuel, remanufactured, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 23

1шт.

1a

JC925549

CORE-INJECTION PUMP

Return Part Number

1шт.

1a

JC913338

PUMP

Return Part Number use this part number to return pump core for credit when using a remanufactured assembly, Includes: Ref. 2 - 23

1шт.

1

J925266

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY fuel, with aneroid, Includes: Ref. 2 - 23

1шт.

2

A77720

PIN

timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

4

J912888

PLUG

timing

1шт.

4a

A71110

GASKET

mounting, replaces A46322, used with Ref. 1A, J925549

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

sealing

1шт.

6

J912886

VALVE

overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER valve sealing

1шт.

8

J910979

LEVER

pump shutoff

1шт.

9

J912890

SPRING

lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING spring return

1шт.

11

680187C1

O-RING,2.5mm Thk x 9mm ID

sealing, special

1шт.

12

1808728C1

LEVER

throttle control

1шт.

13

J913320

SCREW

vent

1шт.

14

691273C1

GASKET,14.2mm ID x 19.9mm OD x 1.5mm Thk

vent screw

1шт.

15

J912897

LOCK WASHER

lock

1шт.

16

J912896

LOCK NUT

hex, self-locking, special

1шт.

18

B41211

SCREW

vent

1шт.

19

933696R1

SEALING RING,M6 x 10 x 1

Replaces 757760R1

1шт.

20

1808822C1

THUMB SCREW,M6 x 26mm

BOLT throttle lever

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

22

892-11006

LOCK WASHER,M6

1шт.

23

829-1306

NUT,M6, Cl 10

Replaces 1806312C1

1шт.

24

J912615

GEAR

fuel pump

1шт.

26

J915036

STUD

pump mounting

4шт.

27

J902662

FLANGE NUT

hex flange, 10 mm

4шт.

28

J915172

FITTING

ELBOW 90 degree, 7/16-20 straight thread x 1/8 inch PT

1шт.

29

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.

30

J906747

HOSE,6.35mm ID x 508mm L

Pump Lubrication

1шт.

31

J916284

O-RING

O-RING fuel injection pump

1шт.

32

J911447

CONNECTOR, ELEC

CONNECTOR banjo, fuel return

1шт.

33

D140877

HOSE CLAMP,#6, 0.44/0.78 Type M Worm

adjustable

1шт.

34

J918176

HOSE,7.90 mm ID x 330.00 mm

Fuel Drain

1шт.
