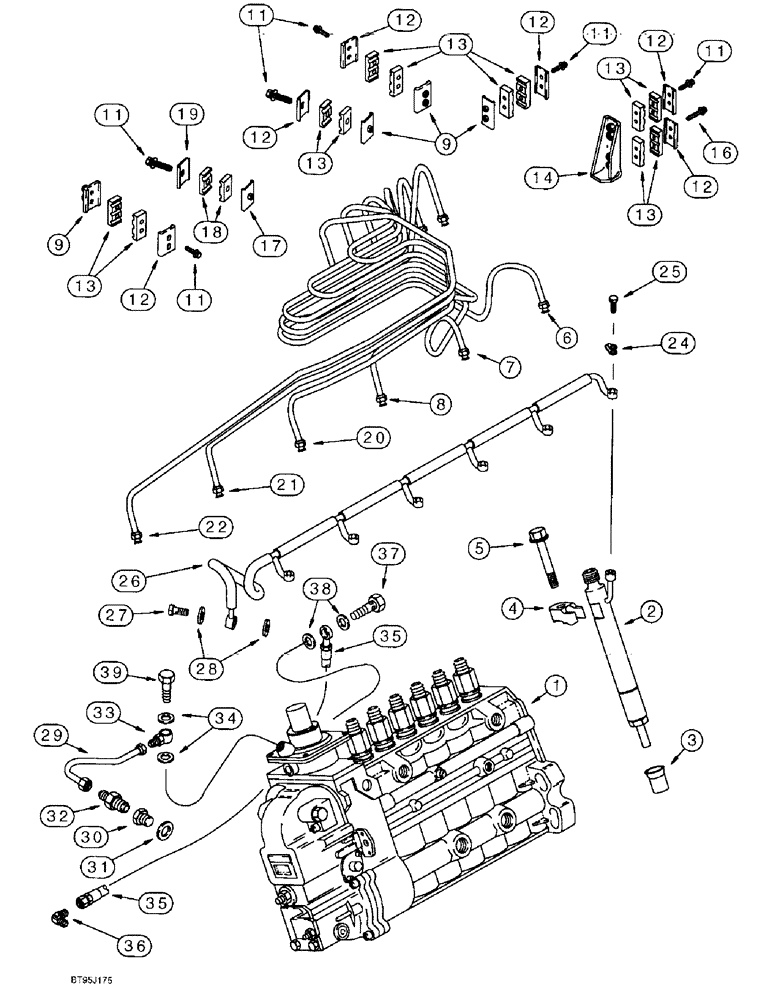

Запчасти Case IH 1688 (3-02) - FUEL INJECTION SYSTEM, 6TA-830 ENGINE (02) - FUEL SYSTEM

1

J925266

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY fuel, with aneroid

1шт.

1a

J925549

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY fuel, without aneroid, not shown, parts list Figure 3-6

1шт.

1a

JR925549

REMAN-INJECTION PUMP

1шт.

1a

JC925549

CORE-INJECTION PUMP

Return Number

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY fuel, parts list Figure 3-8

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE injector

6шт.

4

J910279

CLAMP

fuel injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

6шт.

6

J918788

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE fuel injector, No. 1 cylinder

1шт.

7

J920118

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE fuel injector, No. 2 cylinder

1шт.

8

J920120

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE fuel injector, No. 3 cylinder

1шт.

9

J917716

BRACE

BRACKET fuel tube

3шт.

11

J920855

CAPTIVE WASHER SCREW

hex, captive washer, special, 5 - 0.8 x 35 mm, replaces J917712 and J903723

10шт.

12

J904519

SUPPORT

tube retaining

5шт.

13

J917747

CLAMP

fuel tube

10шт.

14

J917776

BRACE

BRACKET fuel tube

1шт.

16

J920855

CAPTIVE WASHER SCREW

hex, captive washer, special, 5 - 0.8 x 35 mm, replaces J917713 and J903723

2шт.

17

J917717

BRACE

BRACKET fuel tube

2шт.

18

J917746

CLAMP

fuel tube

4шт.

19

CURJ904711

CLAMP

BRACKET fuel tube

2шт.

20

J910752

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

fuel injector, No. 4 cylinder

1шт.

21

J910753

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

fuel injector, No. 5 cylinder

1шт.

22

J910754

FUEL TUBE

fuel injector, No. 6 cylinder

1шт.

24

J903380

SEAL

connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

6шт.

26

J920595

TUBE ASSY.

fuel drain

1шт.

27

J924726

BANJO BOLT

check, replaces J916360

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.

29

J917067

TUBE,4.76 mm OD x 142.5 mm L

TUBE boost line

1шт.

30

J908110

PLUG

threaded

1шт.

Refs. 30 - 39 are used with Ref. 1, J925266 pump asembly with aneroid.

1шт.

31

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

1шт.

Refs. 30 - 39 are used with Ref. 1, J925266 pump asembly with aneroid.

1шт.

32

J909552

CONNECTION

ADAPTER straight, 1/8 PT x 7/16 inch

1шт.

Refs. 30 - 39 are used with Ref. 1, J925266 pump asembly with aneroid.

1шт.

33

J919644

FITTING

CONNECTOR banjo

1шт.

Refs. 30 - 39 are used with Ref. 1, J925266 pump asembly with aneroid.

1шт.

34

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

2шт.

Refs. 30 - 39 are used with Ref. 1, J925266 pump asembly with aneroid.

1шт.

35

J924053

FUEL HOSE,370.00 mm

1шт.

Refs. 30 - 39 are used with Ref. 1, J925266 pump asembly with aneroid.

1шт.

36

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.

Refs. 30 - 39 are used with Ref. 1, J925266 pump asembly with aneroid.

1шт.

37

J918002

BANJO BOLT

banjo

1шт.

Refs. 30 - 39 are used with Ref. 1, J925266 pump asembly with aneroid.

1шт.

38

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

WASHER sealing, special, 10 x 15.5 x 1 mm

2шт.

Refs. 30 - 39 are used with Ref. 1, J925266 pump asembly with aneroid.

1шт.

39

J903035

BANJO BOLT

hex, 12 - 1.5 x 24 mm

1шт.
