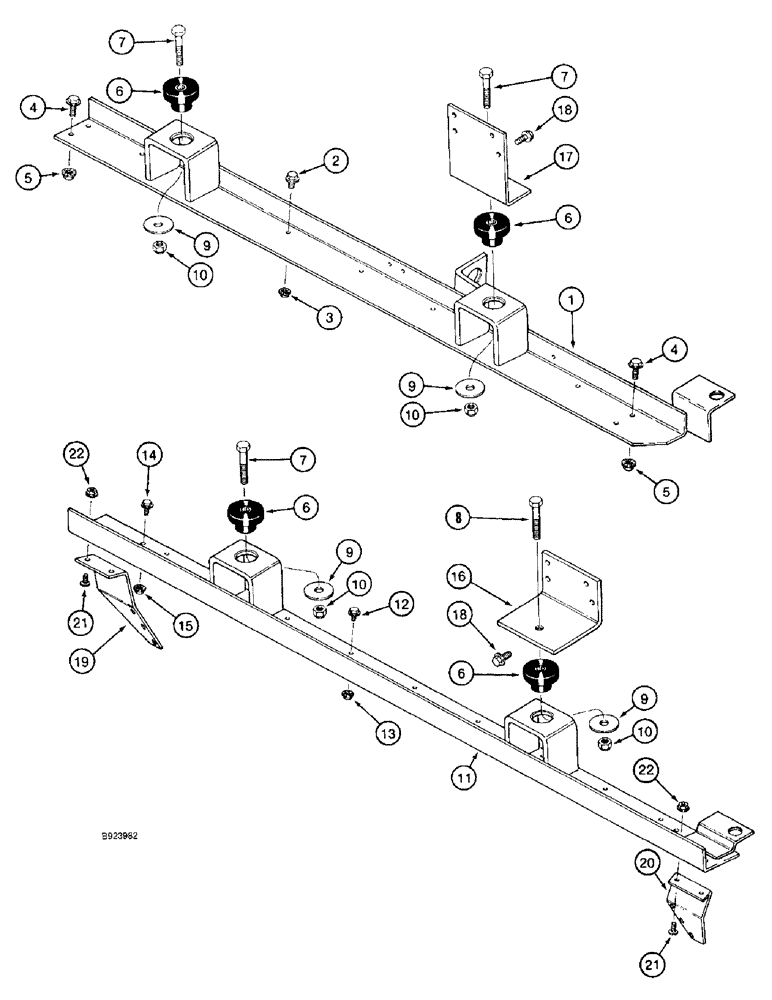

Запчасти Case IH 1688 (2-56) - ENGINE RAILS AND SUPPORTS (01) - ENGINE

1

117917A2

RAIL ASSY.

SUPPORT engine rail, left hand

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

6

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR engine snubber, front and rear

4шт.

7

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

3шт.

8

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex, 5/8 NC x 3-1/4 inch

1шт.

9

107813R1

WASHER

flat, 21/32 x 2-1/2 x 11/64 inch

4шт.

10

231-41110

LOCK NUT,5/8"-11, GB

4шт.

11

117916A2

RAIL ASSY.

SUPPORT engine rail, right hand, replaces 117916A1

1шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

9шт.

13

231-5146

FLANGE NUT,3/8"-16

9шт.

14

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

16

1315645C1

SUPPORT

engine, right front

1шт.

17

1315644C1

SUPPORT

engine, left front

1шт.

18

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

8шт.

19

1330098C2

SUPPORT

engine, right hand rear, replaces 1330098C1

1шт.

20

1330099C2

SUPPORT

engine, right hand front, replaces 1330099C1

1шт.

21

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

22

231-5146

FLANGE NUT,3/8"-16

4шт.
