Запчасти Case IH 1688 (2-54) - GASKET KITS, 6TA-830 ENGINE, VALVE GRIND, CYLINDER BLOCK (01) - ENGINE

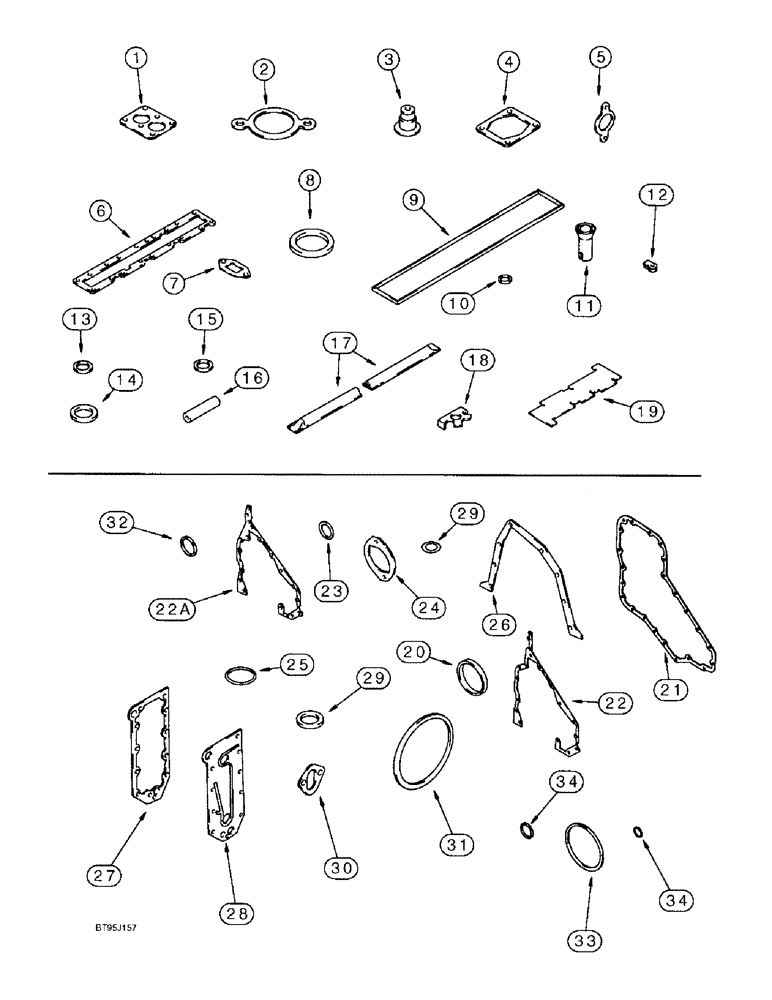

Схема запчастей Case IH 1688 - (2-54) - GASKET KITS, 6TA-830 ENGINE, VALVE GRIND, CYLINDER BLOCK (01) - ENGINE
1
26
29
18
34
4
3
11
31
22a
8
32
14
24
30
7
5
6
2
23
22
16
25
29
19
33
12
15
10
13
34
17
20
27
28
9
21

Артикул

Название

Примечание

Количество

A77794

GASKET KIT

valve grind, Includes: Ref. 1 - 19

1шт.

When the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-35.

1шт.

1

J914310

GASKET,0.8mm Thk

thermostat housing, valve grind

1шт.

2

J918779

GASKET,1.19mm Thk

outlet tube, water, valve grind

1шт.

3

J915707

SEAL

intake and exhaust valve stem and guide, valve grind

12шт.

4

J911941

GASKET

mounting, turbocharger, valve grind

1шт.

5

J929012

GASKET,0.5mm Thk

exhaust manifold, 0.54 mm thick (set of 6) replaces J921787, valve grind

1шт.

6

J914311

MANIFOLD GASKET

intake manifold cover, valve grind

1шт.

7

J914388

GASKET

turbo oil drain tube, turbocharger, valve grind

1шт.

8

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

cap sealing, oil fill cap to valve cover, valve grind

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

valve cover, valve grind

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt, valve grind

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE injector, valve grind

6шт.

12

J903380

SEAL

connector, fuel injection nozzle, valve grind

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Connector to valve cover, valve grind

1шт.

14

J906659

SEAL

injector nozzle, 7 mm injector tip, valve grind

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Water filter shutoff valve, grind

1шт.

16

J918610

HOSE,19.05 mm ID x 51.00 mm

Breather Tube to Connector, Valve Grind

1шт.

17

J919677

TUBE

oil, rocker arm, valve grind

1шт.

18

J914708

LOCKING PLATE

bolt, exhaust manifold, valve grind

12шт.

19

J823921

GAUGE

cylinder head, bolt length, valve grind

1шт.

A77726

KIT

gasket, cylinder block, prior to engine serial number 45075642, Includes: Ref. 20 - 34

1шт.

For a complete engine overhaul, order (1) valve grind kit, (1) cylinder block kit and (1) oil pan gasket kit, Figure 2-33; the front and rear crankshaft seal kit, Figure 2-49; and the rquired cylinder head gasket, Figure 2-35.

1шт.

A77839

KIT

gasket, cylinder block, engine serial number 45075642 and after

1шт.

For a complete engine overhaul, order (1) valve grind kit, (1) cylinder block kit and (1) oil pan gasket kit, Figure 2-33; the front and rear crankshaft seal kit, Figure 2-49; and the rquired cylinder head gasket, Figure 2-35.

1шт.

20

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover, cylinder block

1шт.

21

J917779

GASKET,0.98mm Thk

front gear cover, high mount engine, used in A77726 kit, cylinder block

1шт.

21

J917780

GASKET,0.98mm Thk

front gear cover, low mount engine, not used in this application, use J917779, cylinder block

1шт.

22

J281721

GASKET

housing, gear, used in A77726 kit only, cylinder block

1шт.

22a

J926757

GASKET

housing, gear, used in A77839 kit only, cylinder block

1шт.

23

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing, cylinder block

1шт.

24

J919601

GASKET

access cover plate, cylinder block

1шт.

25

J902089

SEAL,0.139" Thk x 3.859" ID, -241

water pump, cylinder block

1шт.

26

J914301

GASKET

rear cover retainer, crankshaft, cylinder block

1шт.

27

J918174

GASKET,0.71mm Thk

cooler core, oil, cylinder block

1шт.

28

J918332

GASKET

cooler cover, oil, cylinder block

1шт.

29

J901798

SEALING WASHER

WASHER sealing, not used in this application, cylinder block

1шт.

30

J923054

GASKET

mounting, fuel transfer pump, cylinder block

1шт.

31

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel housing to block, cylinder

1шт.

32

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Backing plate plug, cylinder block

1шт.

33

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

sealing, sleeve, cylinder block

6шт.

34

J913994

O-RING

sealing, cylinder block

1шт.

Выбрано товаров: 42
