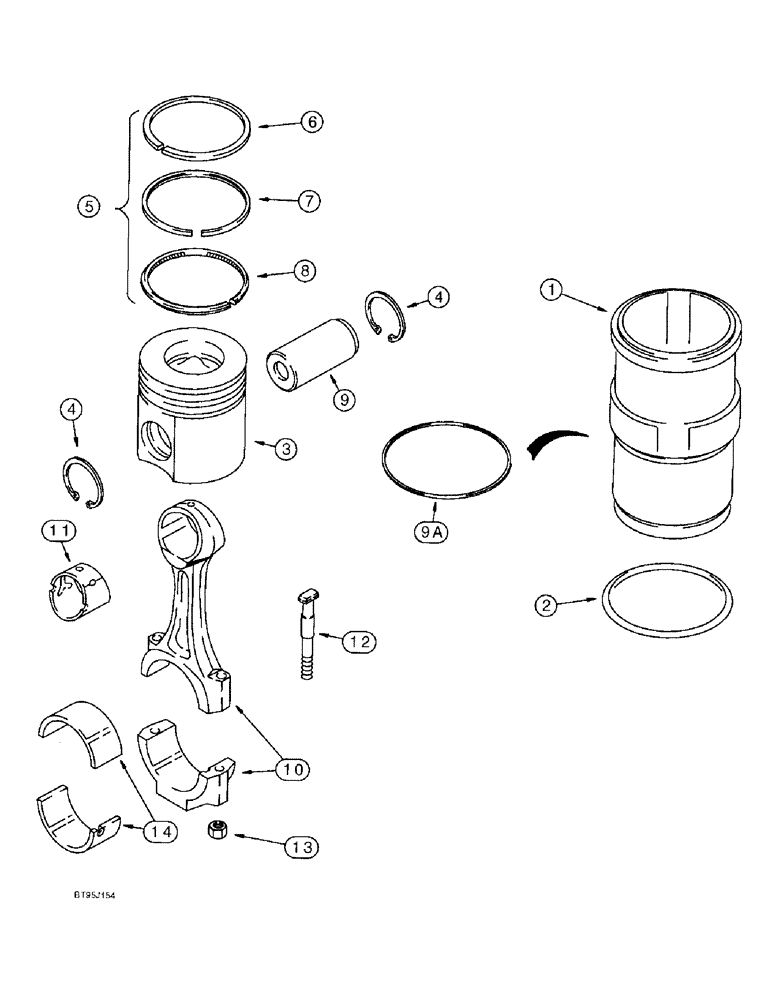

Запчасти Case IH 1688 (2-52) - PISTON AND CONNECTING ROD, 6TA-830 ENGINE (01) - ENGINE

A77799

PACKAGE, REPAIR

KIT piston and sleeve, engine, Includes: Ref. 1 - 8

6шт.

1

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

sleeve, piston

1шт.

A77773

PISTON ASSY.

KIT engine standard, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON cylinder, stamped 95651

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

(Replaces G109044)

2шт.

5

A77802

PISTON RING SET

KIT replaces A77744, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

RING compression, top, piston

1шт.

7

NSS

NOT SOLD SEPARAT

RING compression, middle, piston

1шт.

8

NSS

NOT SOLD SEPARAT

RING oil, bottom, piston

1шт.

9

J901597

PIN

piston

1шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

Cylinder sleeve (.010"), Replaces J914653, Piston

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

Cylinder sleeve (.015"), Piston

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

Cylinder sleeve (.020"), Piston

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924448

SHIM,0.762mm Thk

Cylinder sleeve (.030"), Piston

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924449

SHIM,1.000mm Thk

Cylinder sleeve (.040"), Piston

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

Connecting Rod

1шт.

JR901383

REMAN-CONNECTING ROD

ASSEMBLY remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly

1шт.

JC901383

CORE-ROD CONNECTING

CORE-CONNECTING ROD RETURN NUMBER use this part number to return connecting rod for credit when using a remanufactured assembly

1шт.

J901383

CONNECTING ROD

ASSEMBLY

6шт.

84487529R

REMAN-CONNECTING ROD

1688 (1/93 - 12/94), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

10

NSS

NOT SOLD SEPARAT

ROD connecting, two-piece, Includes: Ref. 11 - 13

1шт.

11

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

connecting rod

1шт.

12

J924351

BOLT

BOLT special, rod, bearing cap, replaces J920799, connecting

2шт.

13

J901381

SPECIAL NUT

hex, rod bolt, connecting

2шт.

14

A77563

BEARING SET

KIT upper and lower, standard, connecting rod

6шт.

14

A77564

BEARING SET

KIT upper and lower, 0.25 mm undersize, connecting rod

6шт.

14

A77565

BEARING SET

KIT upper and lower, 0.50 mm undersize, connecting rod

6шт.

14

A77566

BEARING SET

KIT upper and lower, 0.75 mm undersize, connecting rod

6шт.

14

A77567

BEARING SET

KIT upper and lower, 1.00 mm undersize, connecting rod

6шт.
