(2-50) - FLYWHEEL AND BACKING PLATE, 6TA-830 ENGINE

Запчасти Case IH 1688 (2-50) - FLYWHEEL AND BACKING PLATE, 6TA-830 ENGINE (01) - ENGINE

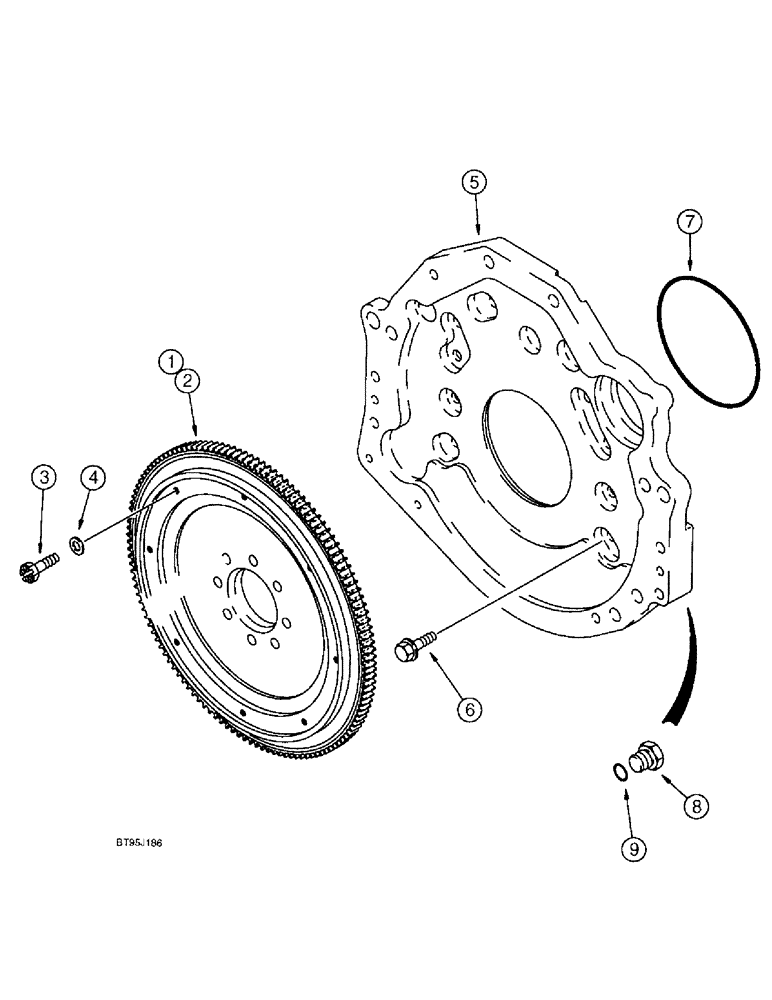

Схема запчастей Case IH 1688 - (2-50) - FLYWHEEL AND BACKING PLATE, 6TA-830 ENGINE (01) - ENGINE
6
4
7
2
3
8
1
5
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J917052

FLYWHEEL

ASSEMBLY engine, Includes: Ref. 2

1шт.

2

J905427

GEAR

ring, flywheel

1шт.

3

J908181

SCREW,Hex, M12 x 1.25 x 50mm, Cl 12.9

BOLT hex, special, 12 - 1.25 x 50 mm

8шт.

4

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, special

8шт.

5

J913593

PLATE

backing

1шт.

6

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

10шт.
