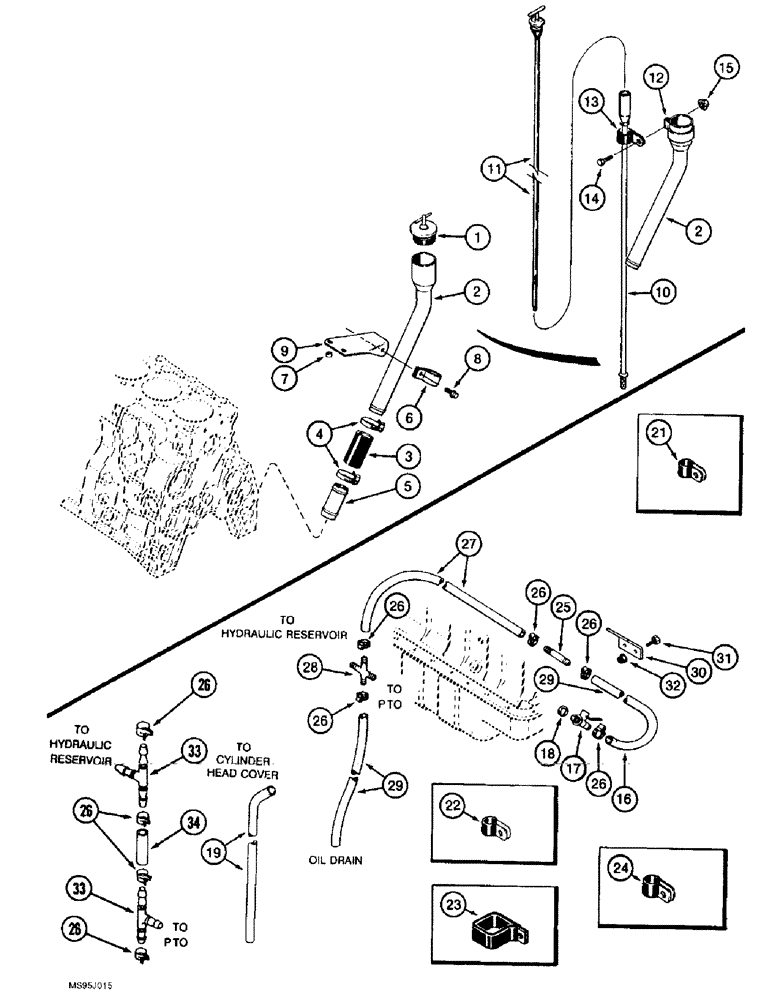

Запчасти Case IH 1688 (2-46) - ENGINE ATTACHING PARTS, 6TA-830 ENGINE (01) - ENGINE

1

A77424

FILLER CAP

CAP oil fill tube

1шт.

2

J914019

TUBE,34.92 mm OD x 59, 25 mm L

oil fill, upper

1шт.

3

A77661

HOSE

2-1/2 inch (64 mm) long

1шт.

4

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Adjustable

2шт.

5

J914163

TUBE,35.23 mm OD x 90 mm L

oil fill, lower

1шт.

6

J914022

CLAMP

P-type

2шт.

7

K627040

BUSHING

SPACER 3/4 OD x 1/4 inch long

2шт.

8

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

9

J914020

BRACKET

support, for mounting hardware, use two J918109 manifold bolts, Ref. 7, Figure 2-24

1шт.

10

118880A1

TUBE,9.52 mm ID, 809 mm Length

dipstick

1шт.

11

118790A1

DIPSTICK

oil gauge

1шт.

12

118788A1

CLAMP

dipstick support

1шт.

13

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type

1шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

16

1329978C3

HOSE

18-1/8 inch (430 mm) long

1шт.

17

1330429C1

DRAIN VALVE

oil

1шт.

18

J900216

PACKING RING

WASHER sealing, drain plug

1шт.

19

1541750C1

HOSE

148-1/16 inch (3760 mm) long, cut from 364360C1 bulk, see this Figure

1шт.

20

281-14810

SELF-TAP SCREW,Hex Hd, 5/16" x 5/8"

self-tapping, hex washer head, 5/16 NC x 5/8 inch, not shown

1шт.

21

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type

1шт.

22

28123R1

CLAMP

1-1/2 inch coated medium, closed

1шт.

23

1301387C2

CLIP

CLAMP square, 2 inch ID

3шт.

24

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

1-7/8 inch diameter

3шт.

25

1301342C1

FITTING

ADAPTER straight, special

1шт.

26

1954736C1

HOSE CLAMP,#24

11шт.

27

1329977C2

HOSE,15.75 mm ID x 840.00 mm

33 inch (840 mm) long, cut from 1977295CX bulk, see this Figure

1шт.

28

119254A1

CROSS

oil drain, no longer available, order two of Ref. 33, one of Ref. 34 and two of Ref. 26

1шт.

29

1347069C1

FLEXIBLE HOSE,15.75mm ID x 1550mm L

Cut From 6 x 1977295CX, See This Figure

1шт.

30

1977212C1

BRACKET

BRACKET oil drain shield

1шт.

31

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self-locking, special, 3/8 NC x 1 inch

2шт.

32

231-5146

FLANGE NUT,3/8"-16

2шт.

33

1977169C1

TEE

oil drain

2шт.

34

1347070C2

HOSE,15.75 mm ID x 75.00 mm

3 inch (75 mm) long, cut from 1977295CX bulk, see this Figure

1шт.

364360C1

HOSE

bulk, 3/4 (19) ID x 600 inch (15240 mm) long

1шт.

1977295CX

LARGE HOSE

HOSE,LARGE bulk, 5/8 (16) x 7/8 (22) x 600 inch (15240 mm) long

1шт.
