Запчасти Case IH 1688 (2-34) - CYLINDER HEAD COVER, 6TA-830 ENGINE (01) - ENGINE

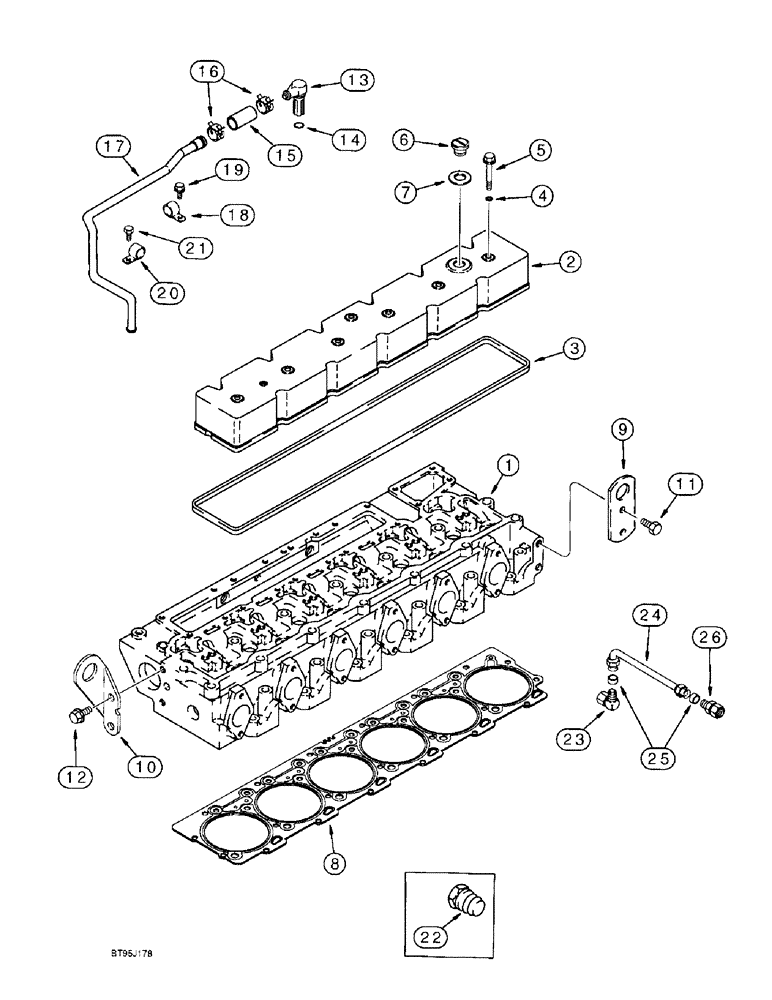

Схема запчастей Case IH 1688 - (2-34) - CYLINDER HEAD COVER, 6TA-830 ENGINE (01) - ENGINE
14
10
5
9
24
12
17
7
22
13
21
8
1
11
23
19
18
3
25
6
4
15
2
20
16
26

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEAD cylinder, see Figure 2-36 for correct assembly and component parts

1шт.

2

J927907

VALVE COVER

replaces J907734

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

valve cover

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

6шт.

5

J916585

BOLT,Hex Flg, M8 x 1.25

BOLT hex flange cap, special

6шт.

6

J902468

FILLER CAP,Male

CAP oil filler

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

cap sealing

1шт.

8

J928168

GASKET

cylinder head, standard, replaces J921850

1шт.

8

J928180

GASKET

cylinder head, 0.25 mm thicker, replaces J921852

1шт.

8

J928181

GASKET

cylinder head, 0.50 mm thicker, replaces J921853

1шт.

9

J907861

LIFTING EYE

lifting, front

1шт.

10

J906440

LIFTING EYE

lifting, rear

1шт.

11

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Front lifting bracket to cylinder head

2шт.

12

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy, Rear lifting bracket to cylinder head

2шт.

13

J920497

ELBOW

CONNECTOR 90 degree, breather vent

1шт.

14

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

15

J918610

HOSE,19.05 mm ID x 51.00 mm

Breather Tube to Connector

1шт.

16

J918163

CLIP

CLAMP spring type

2шт.

17

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

breather

1шт.

18

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

P-style, Breather tube to valve cover

1шт.

19

J912072

SELF-TAP SCREW

Hex washer head, special, 8 - 1.25 x 15 mm, breather tube clip to valve cover

1шт.

20

A77538

CLIP

CLAMP P-style breather tube to cylinder head

1шт.

21

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

1шт.

22

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

1шт.

23

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ELBOW 90 degree, compression, 1/4 tube OD x 1/8 inch PT

1шт.

24

J924589

TUBE,6.35 mm OD x 112.6 mm L

vent, air, Includes: Ref. 25

1шт.

25

222-153

SLEEVE,1/4" Tube

2шт.

26

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

ADAPTER compression, 1/4 tube OD x 1/8 inch PT

1шт.

Выбрано товаров: 28
