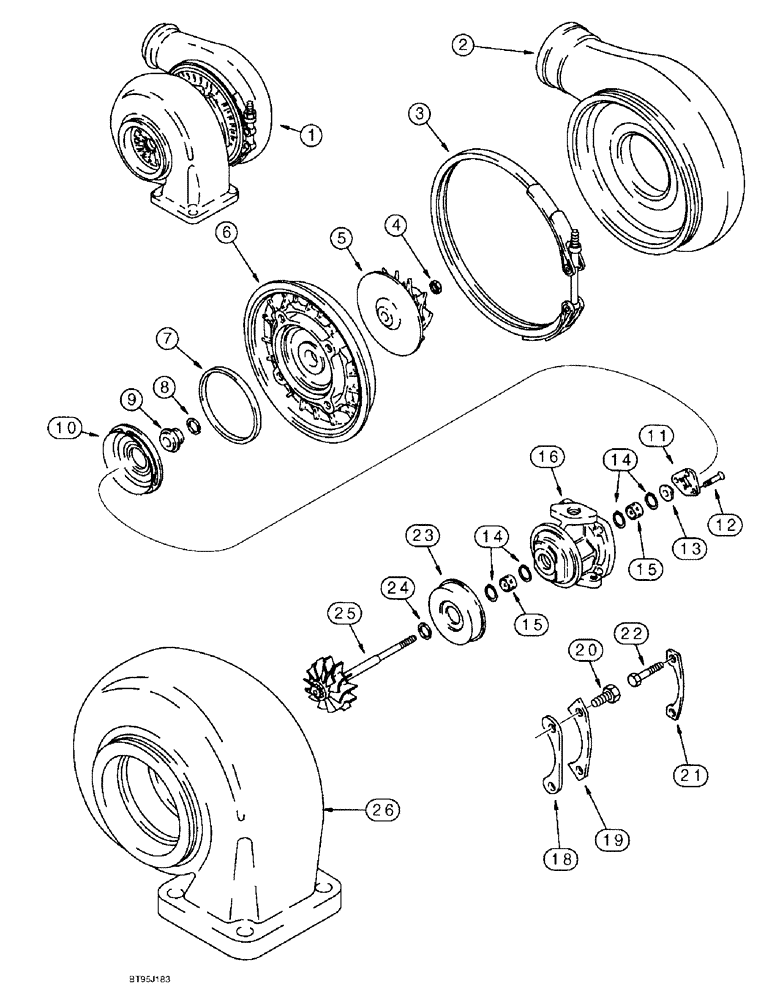

Запчасти Case IH 1688 (2-28) - TURBOCHARGER ASSEMBLY, 6TA-830 ENGINE (01) - ENGINE

1

J532065

TURBOCHARGER

ASSEMBLY engine, new, replaces J531665, Includes: Ref. 2 - 28

1шт.

1

JR802416

REMAN-TURBOCHARGER

ASSEMBLY engine, remanufactured, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 28

1шт.

1

JC802416

CORE-TURBOCHARGER

RETURN NUMBER use this part number to return turbocharger core for credit when using a remanufactured assembly, Includes: Ref. 2 - 28

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING compressor

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP housing

1шт.

4

NSS

NOT SOLD SEPARAT

NUT hex, lock

1шт.

Part of KIT, part number J545652

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR turbocharger

1шт.

6

NSS

NOT SOLD SEPARAT

DIFFUSER compressor

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL diffuser

1шт.

Part of KIT, part number J545652

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL split ring, oil slinger

1шт.

Part of KIT, part number J545652

1шт.

9

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

10

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

Part of KIT, part number J545652

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW flat head slotted

3шт.

Part of KIT, part number J545652

1шт.

13

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

14

NSS

NOT SOLD SEPARAT

RING snap, bearing retaining

4шт.

Part of KIT, part number J545652

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING shaft, impeller

2шт.

Part of KIT, part number J545652

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING bearing, turbine

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE clamping, turbine housing

2шт.

19

NSS

NOT SOLD SEPARAT

PLATE lock, turbine housing

2шт.

Part of KIT, part number J545652

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT hex, retaining

4шт.

Part of KIT, part number J545652

1шт.

21

NSS

NOT SOLD SEPARAT

PLATE lock, turbine

2шт.

22

NSS

NOT SOLD SEPARAT

BOLT hex, lock

4шт.

Part of KIT, part number J545652

1шт.

23

NSS

NOT SOLD SEPARAT

SHIELD heat, turbine

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL ring, turbine

1шт.

Part of KIT, part number J545652

1шт.

25

NSS

NOT SOLD SEPARAT

ROTOR turbocharger

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING turbocharger

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER lock, not shown

8шт.

Part of KIT, part number J545652

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING sealing, not shown

1шт.

Part of KIT, part number J545652

1шт.

J545652

PACKAGE, REPAIR

KIT overhaul, turbocharger, Includes: Refs. 4, 7, 8, 11, 12, 14, 15, 19, 20, 22, 24, 27 and 28, replaces J904772

1шт.
