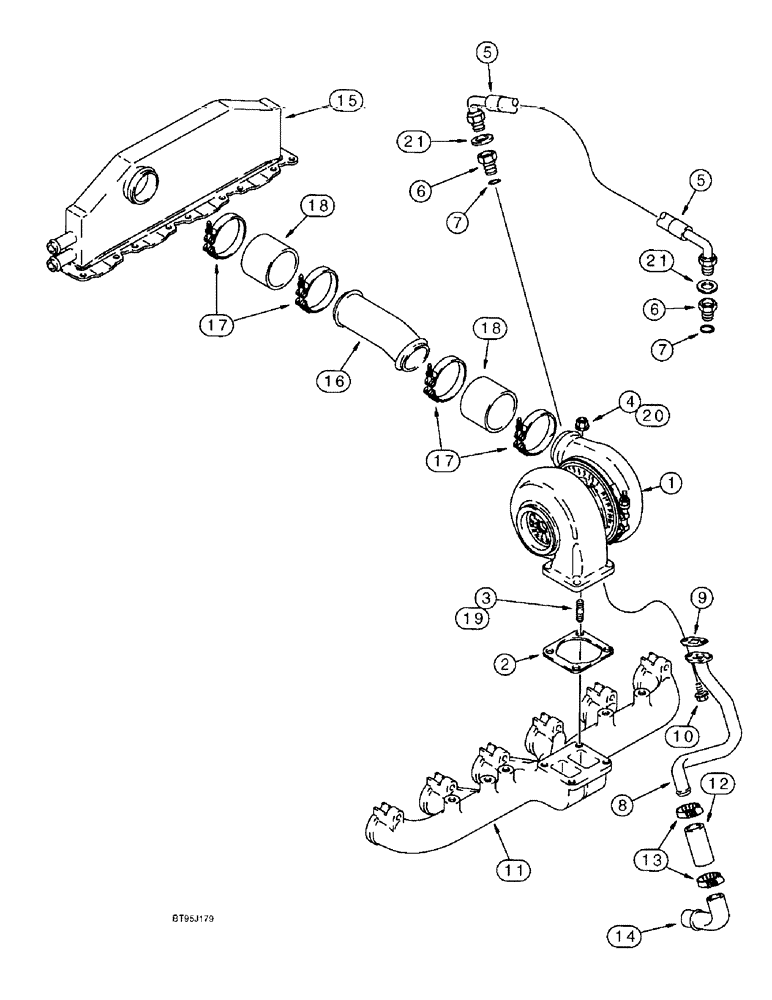

Запчасти Case IH 1688 (2-26) - TURBOCHARGER SYSTEM, 6TA-830 ENGINE (01) - ENGINE

1

J531665

TURBOCHARGER

ASSEMBLY - engine, new, parts list Figure 2-28

1шт.

2

J911941

GASKET

mounting, turbocharger

1шт.

3

J905417

STUD

STUD turbocharger mounting, used with Ref. 4 nut only, if used

4шт.

4

J901961

NUT

hex, special, 10 mm - 1.25, used with Ref. 3 stud only, if used

4шт.

5

J918562

HOSE

21-3/16 inch (538 mm) long, oil supply, turbocharger

1шт.

6

J919687

HYD CONNECTOR

ADAPTER female hex, special, Includes: Ref. 7

2шт.

7

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

8

J917936

TUBE,22.22 mm OD x 340.6, 108.7 mm L

oil drain, upper

1шт.

9

J914388

GASKET

turbo oil drain tube

1шт.

10

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

11

J906741

MANIFOLD

exhaust, see Figure 2-25

1шт.

12

J903745

LARGE HOSE

HOSE,LARGE 3 inch (76 mm) long, turbocharger oil drain, lower

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adj.

2шт.

14

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE turbocharger oil drain

1шт.

15

J914502

HEAT-EXCHANGER

AFTERCOOLER air intake, see Figure 2-25

1шт.

16

J914942

TUBE,63.5 mm OD x 189.5, 23 mm L

crossover, air

1шт.

17

J924386

COLLAR CLAMP

adjustable, special

4шт.

18

J916529

TRANSMISSION SLEEVE

HOSE 3 inch (76 mm) long, crossover tube

2шт.

19

J818823

STUD

turbocharger mounting, used with Ref. 20 nut only, if used

4шт.

20

J818824

FLANGE NUT

hex flange, special, 10 mm - 1.5, used with Ref. 19 stud only, if used

4шт.

21

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
