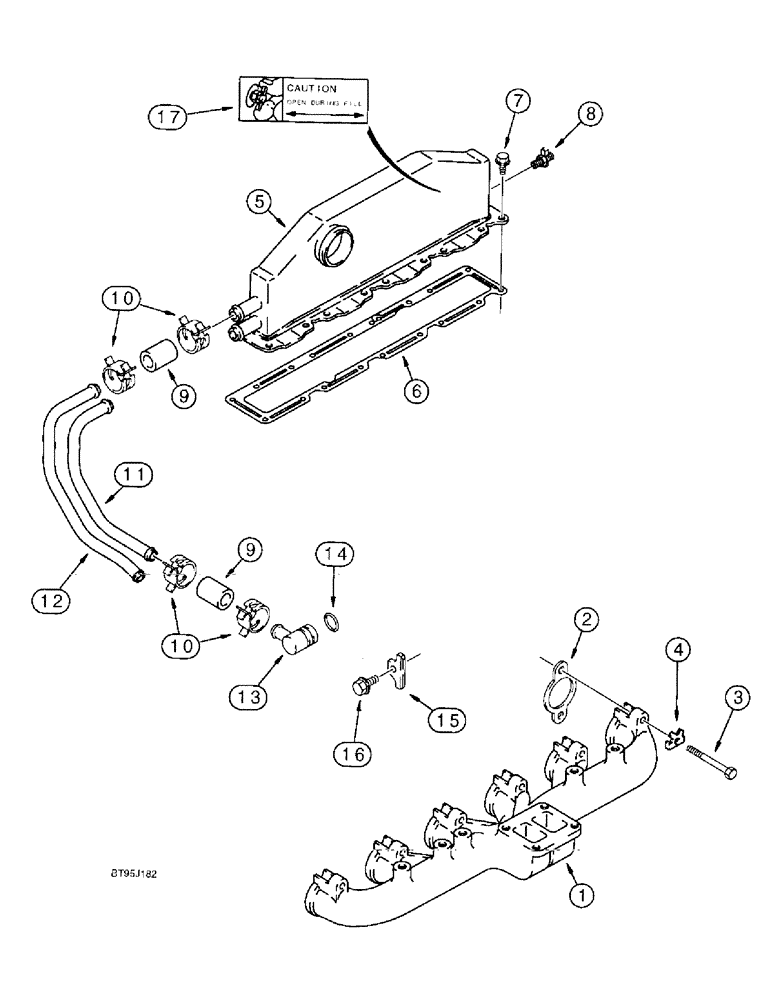

Запчасти Case IH 1688 (2-24) - MANIFOLDS, 6TA-830 ENGINE (01) - ENGINE

1

J906741

MANIFOLD

exhaust

1шт.

2

J921787

GASKET

exhaust manifold, 1.0 mm thick (set of 6)

1шт.

3

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

Exhaust manifold

12шт.

4

J914708

LOCKING PLATE

manifold bolt, exhaust

12шт.

5

J914502

HEAT-EXCHANGER

air intake, aftercooler manifold

1шт.

6

J914311

MANIFOLD GASKET

intake manifold aftercooler

1шт.

7

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Special, Intake manifold aftercooler to cylinder head

18шт.

8

J909394

COCK, DRAIN

VALVE air bleed, intake aftercooler manifold

1шт.

9

J918611

HOSE,18.50 mm ID x 63.00 mm

Supply Tube to Aftercooler, Intake Manifold

4шт.

10

J918163

CLIP

CLAMP spring type, hose retaining, intake aftercooler manifold

8шт.

11

J906436

TUBE,19.05 mm OD x 385.3 mm L

TUBE water inlet, intake aftercooler manifold

1шт.

12

J908402

TUBE,19.05 mm OD

TUBE water outlet, intake aftercooler manifold

1шт.

13

J917394

ELBOW

CONNECTOR water inlet, intake aftercooler manifold

2шт.

14

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

Intake aftercooler manifold

2шт.

15

J906439

PLATE

mounting, intake aftercooler manifold

1шт.

16

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

Intake aftercooler manifold

1шт.

17

J910778

DECAL

caution, open during fill, intake aftercooler manifold

1шт.
