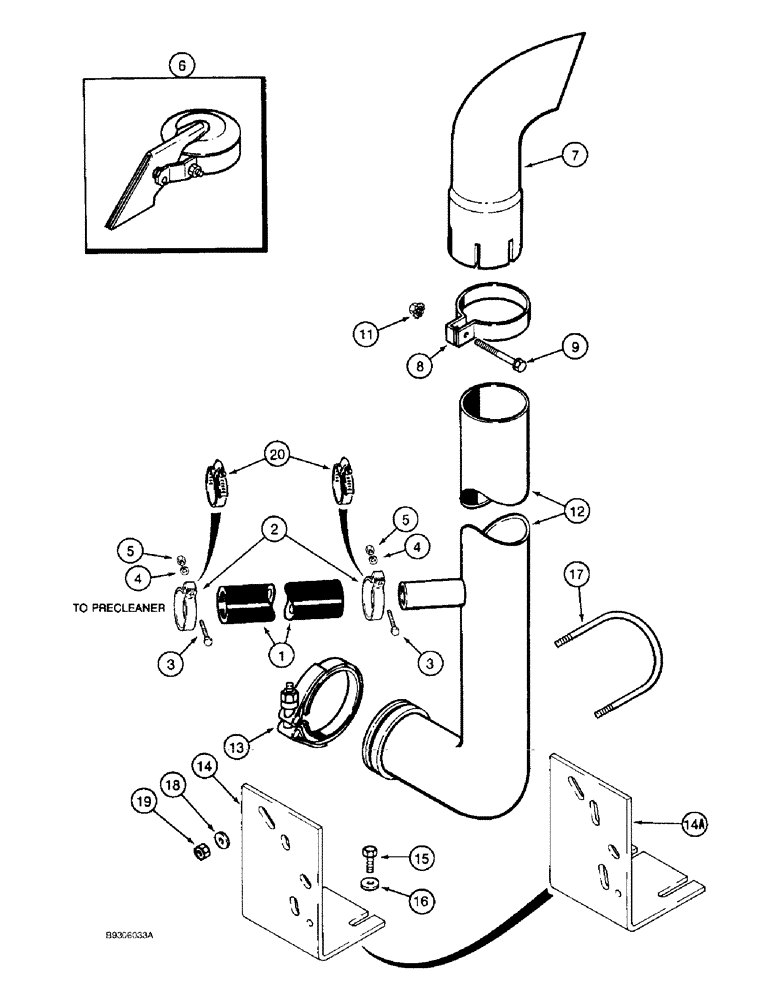

Запчасти Case IH 1688 (2-18) - EXHAUST SYSTEM (01) - ENGINE

1

120223A2

RADIATOR HOSE,31.75 mm ID x 737.00 mm, SAE 20R2

Exhaust aspirator, Replaces 120223A1, Cut from 407001R1 bulk, See this Figure

1шт.

2

1275854C1

CLAMP

aspirator hose, if used

2шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Used with 1275854C1 clamp

2шт.

4

492-11038

LOCK WASHER,3/8"

Used with 1275854C1 clamp

2шт.

5

425-106

NUT,3/8"-16, Cl 5

Used with 1275854C1 clamp

2шт.

6

1541961C2

CAP

exhaust pipe, if used

1шт.

7

1977117C2

TUBE,114.3 mm OD

TUBE exhaust aspirator, top

1шт.

8

650985C1

CLAMP

exhaust pipe elbow

1шт.

9

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

1шт.

11

231-5146

FLANGE NUT,3/8"-16

1шт.

12

120116A1

TUBE

exhaust aspirator, bottom

1шт.

13

A170807

CLAMP,102mm ID

exhaust tube retaining, includes hardware

1шт.

14

84569C5

ANGLE

BRACKET tube support, no longer available, order 84569C8, Ref. 14A

1шт.

14a

84569C8

SUPPORT TUBE

BRACKET tube support

1шт.

15

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

16

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

17

117410A2

U-BOLT

3/8"

1шт.

18

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

19

231-4116

NUT,3/8"-16, GB

hex, self-locking, 3/8 inch NC

2шт.

20

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Adj., if used

2шт.

407001R1

HOSE,31.75mm ID x 914.4mm L, SAE 20R1

bulk, 1-1/4 (32) ID x 36 inch (914 mm) long

1шт.
