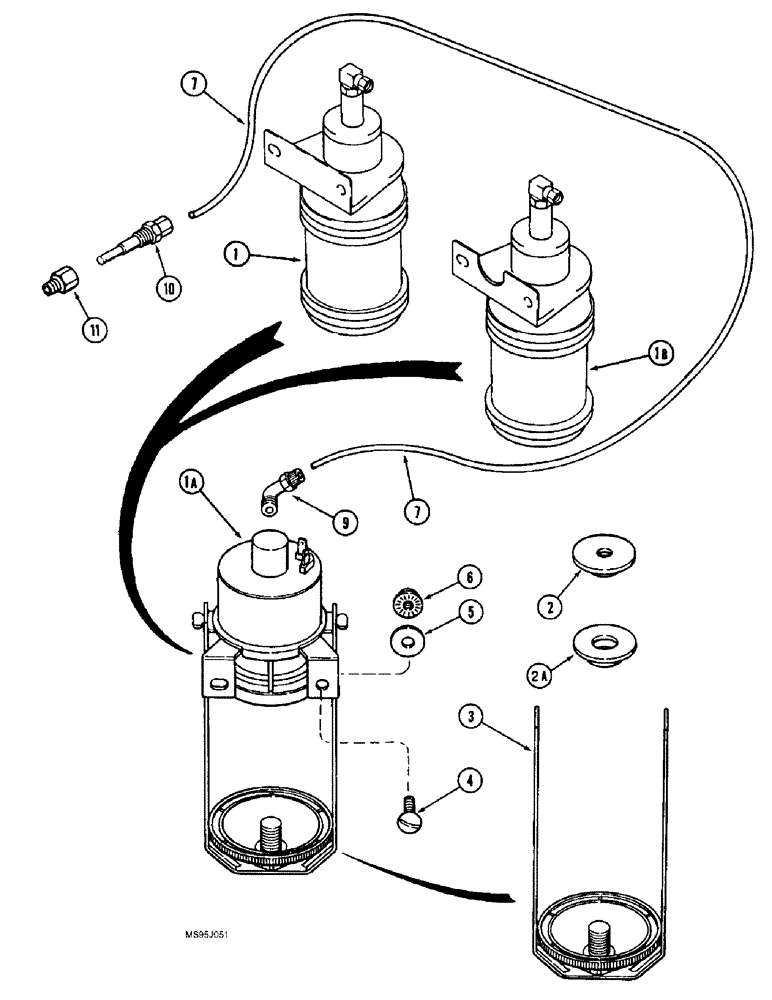

Запчасти Case IH 1688 (2-16) - ETHER STARTING SYSTEM (01) - ENGINE

1

185552A2

SOLENOID

ASSEMBLY ether injection, replaces A143381 and 185552A1, Includes: Ref. 2, 2A and 3

1шт.

1a

A143381

SOLENOID

ASSEMBLY ether injection, replaced by 185552A1 and 185552A2, Includes: Ref. 2, 2A and 3

1шт.

1b

185552A1

SOLENOID

ether injection, 12 volt, replaced by 185552A2

1шт.

2

395686R1

GASKET

injector solenoid, 15/64 inch diameter, used with Ref. 1A only

1шт.

2a

1963571C1

GASKET

GASKET injector solenoid, 19/32 inch diameter, used with Ref. 1A only

1шт.

3

121851C1

RETAINER

ether start fluid container, used with Ref. 1A only

1шт.

4

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

2шт.

5

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

flat, 11/32 x 1-1/4 x 1/16 inch

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

7

A172361

TUBE

72 inch (1829 mm) long, cut from 1954063CX bulk, see this Figure

1шт.

9

289970C91

FITTING

ELBOW 90 degree, special, 1/8-27 PT x 1/8 inch tube, used with Ref. 1A only

1шт.

10

A172900

NOZZLE CAP

ASSEMBLY atomizer

1шт.

11

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Used with Ref. 1A only

1шт.

1954063CX

TUBE

bulk, 1/8 (3) OD x 1200 inch (30480 mm) long

1шт.
