Запчасти Case IH 1688 (2-14) - AIR CLEANER, AIR INDUCTION SYSTEM (01) - ENGINE

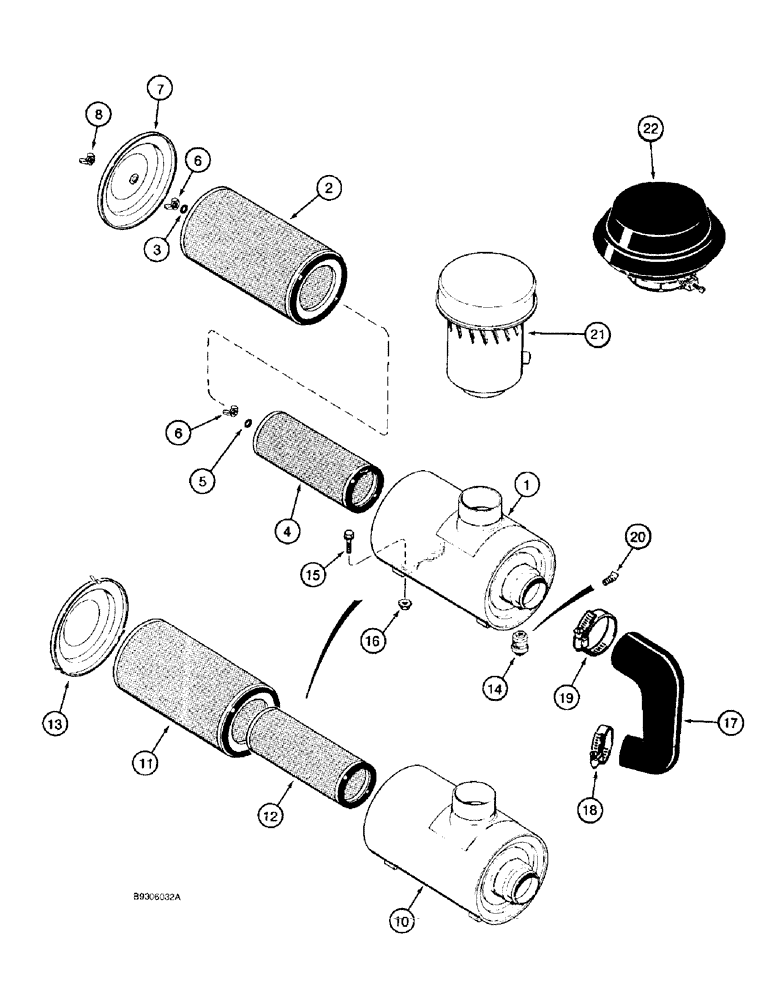

Схема запчастей Case IH 1688 - (2-14) - AIR CLEANER, AIR INDUCTION SYSTEM (01) - ENGINE
5
22
15
11
21
6
8
20
7
2
13
19
14
6
17
3
16
10
4
12
18
1

Артикул

Название

Примечание

Количество

117408A1

AIR CLEANER

ASSEMBLY air, engine, Includes: Ref. 1 - 8, Serial Range: -JJC0120460

1шт.

1

NSS

NOT SOLD SEPARAT

BODY air cleaner, Serial Range: -JJC0120460

1шт.

2

627975C3

AIR FILTER

ELEMENT primary, Serial Range: -JJC0120460

1шт.

3

A44187

WASHER

sealing, air cleaner, Serial Range: -JJC0120460

1шт.

4

627976C1

AIR FILTER

secondary, air cleaner, Serial Range: -JJC0120460

1шт.

5

A44187

WASHER

sealing, air cleaner, Serial Range: -JJC0120460

1шт.

6

L35499

NUT

wing, air cleaner, Serial Range: -JJC0120460

2шт.

7

1347839C1

COVER

ASSEMBLY air cleaner, Serial Range: -JJC0120460

1шт.

8

A47102

WING NUT

wing, air cleaner, Serial Range: -JJC0120460

1шт.

9

1541610C1

INDICATOR

air restriction not shown, cleaner, Serial Range: -JJC0120460

1шт.

117408A2

AIR CLEANER

ASSEMBLY air, engine, Includes: Ref. 10 - 13, Start Serial: JJC0120460

1шт.

10

NSS

NOT SOLD SEPARAT

BODY air cleaner, Start Serial: JJC0120460

1шт.

11

132151A1

AIR FILTER

primary, air cleaner, Start Serial: JJC0120460

1шт.

12

132149A1

AIR FILTER

secondary, air cleaner, Start Serial: JJC0120460

1шт.

13

134610A1

COVER

end, air cleaner, Start Serial: JJC0120460

1шт.

14

1541610C1

INDICATOR

air restriction, cleaner, Start Serial: JJC0120460

1шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

Air induction system

4шт.

16

231-5146

FLANGE NUT,3/8"-16

Air induction system

4шт.

17

1541862C1

LARGE HOSE

HOSE,LARGE turbo inlet, air induction system

1шт.

18

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

Adjustable, Air Induction System

1шт.

19

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

Air Induction System

1шт.

20

217-15

ELBOW,45 Degree, 1/8"-27 NPTF, Fem x 1/8"-27 NPTF Male

ELBOW street, 45 degree, 1/8 inch PT x female PT, air induction system

1шт.

21

117407A1

PRECLEANER

air induction system

1шт.

22

9-128

CAP

air cleaner, precleaner, air induction system

1шт.

Выбрано товаров: 24
