(7-10) - MASTER BRAKE CYLINDERS AND RESERVOIR

Запчасти Case IH 1688 (7-10) - MASTER BRAKE CYLINDERS AND RESERVOIR (5.1) - BRAKES

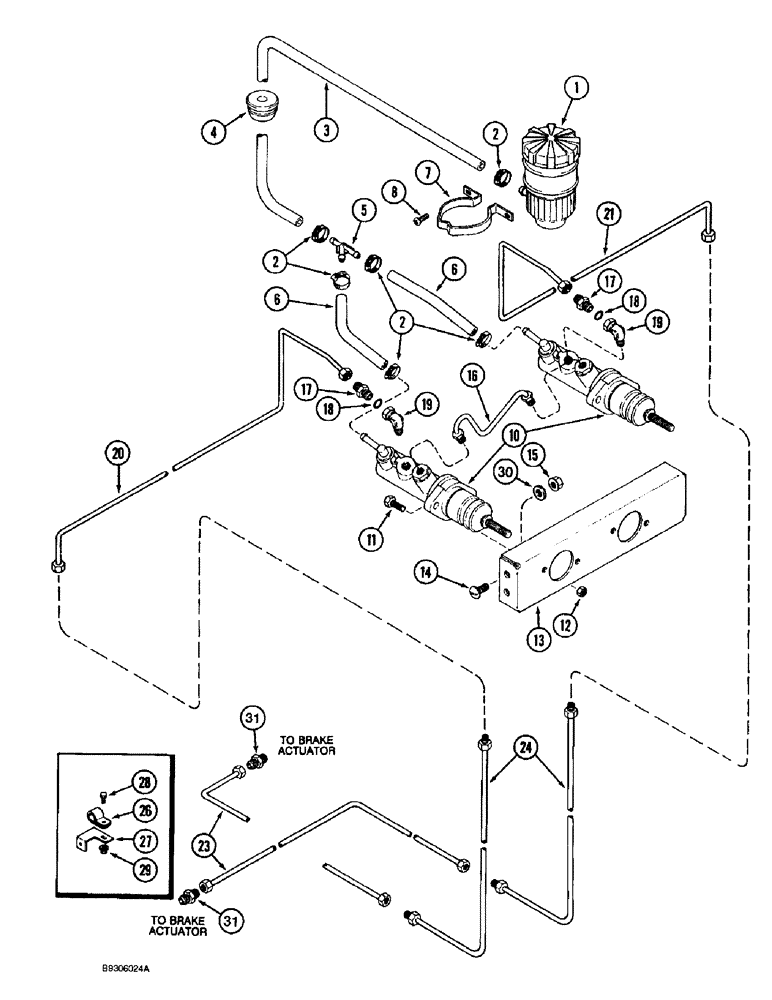

Схема запчастей Case IH 1688 - (7-10) - MASTER BRAKE CYLINDERS AND RESERVOIR (5.1) - BRAKES
6
27
8
6
2
28
10
26
18
19
15
29
2
2
31
4
11
7
20
31
30
23
5
18
21
19
17
16
1
13
12
17
3
24
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1281890C2

RESERVOIR

brake fluid

1шт.

2

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Adjustable

6шт.

3

1281889C1

HYDRAULIC HOSE,6.35 mm ID x 610.00 mm

1шт.

4

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

rubber, 1/2 inch ID, brake hose

1шт.

5

1285312C1

TEE

FITTING stem, Y-type

1шт.

6

1281888C1

HYDRAULIC HOSE,6.35 mm ID x 150.00 mm

2шт.

7

1281891C1

CLAMP

reservoir mounting

1шт.

8

260-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

2шт.

10

1281884C91

MASTER CYLINDER,37mm Stroke

ASSEMBLY 1 (25) ID x 1-1/2 inch (37 mm) stroke, parts list Figure 7-12

2шт.

11

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

13

1327561C2

SUPPORT

master brake cylinder

1шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

3шт.

14

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 NC x 1-1/4 inch

1шт.

15

231-5146

FLANGE NUT,3/8"-16

5шт.

16

1281885C1

PIPE

TUBE equalizer

1шт.

17

1546436C1

FITTING

ADAPTER straight, 7/16-20 inch flare x O-ring boss, purchase O-ring separately

2шт.

18

237-3004

O-RING,0.351" ID x 0.072" Width

2шт.

19

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

ELBOW 90 degree, 7/16-20 inch flare x swivel

2шт.

20

1321478C2

HYD TUBE

brake, upper, right hand

1шт.

21

1321477C2

HYD TUBE

brake, upper, left hand

1шт.

23

1321515C1

HYD TUBE,0.25" OD, 365, 355 mm Length

brake, lower

2шт.

24

1321511C2

HYD TUBE

TUBE brake, center

2шт.

26

515-2863

CLAMP,1/4", 3/8" Bolt

P-type, 1/4 inch closed

2шт.

27

1979221C1

SUPPORT

tube

2шт.

28

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

4шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

31

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

straight, 7/16-20 flare x 1/8 inch PT

2шт.
