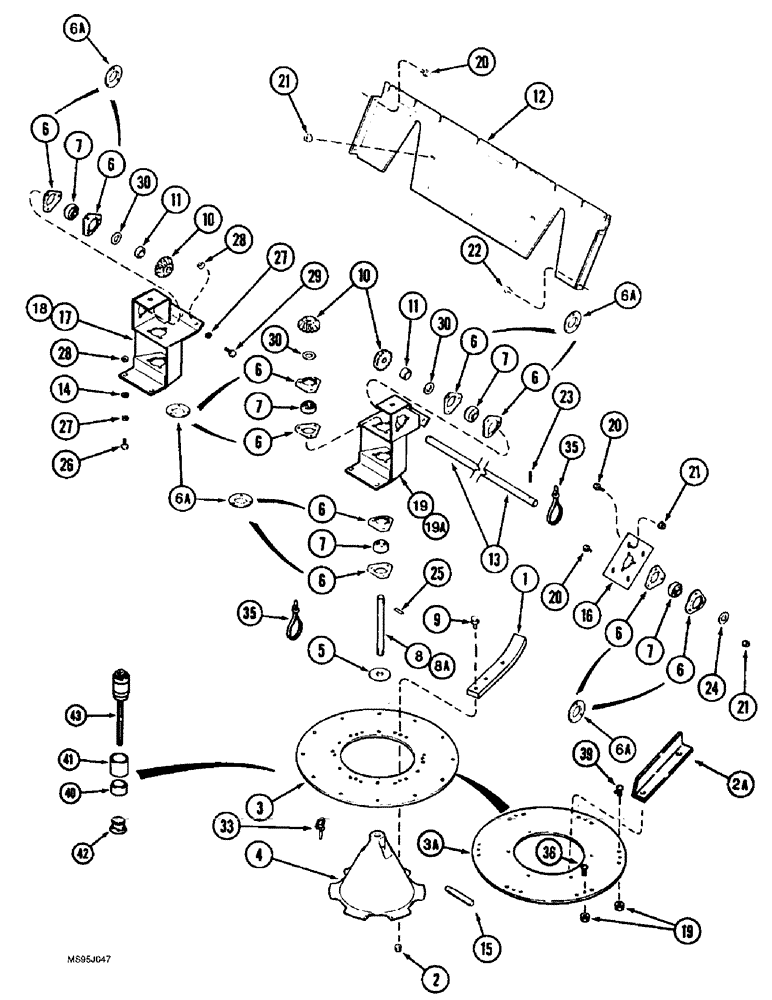

Запчасти Case IH 1688 (9F-02) - STRAW SPREADER (19) - STRAW SPREADER & CHOPPER

1

194197C2

STRIP,50mm W x 363mm L

rubber, grain and corn

12шт.

1

1302790C1

STRIP

rubber, rice

12шт.

2

231-5315

FLANGE NUT,Flg, 5/16"-18

Retainer, strip

24шт.

2a

103170A1

ANGLE BAR

BAT models with straw and chaff spreader

12шт.

3

192254C1

DISC

RETAINER strip, grain and corn

2шт.

3

1302791C1

RETAINER

strip, rice

2шт.

3a

140189A1

DISC

RETAINER bat, models with straw and chaff spreader

2шт.

4

188218C6

CONE,Spreader Support

SUPPORT straw spreader, replaces 188218C4 and 188218C5

2шт.

5

183041C1

WASHER

WASHER flat, special, if used

2шт.

6

571424R1

FLANGE

bearing, used with Refs. 17 and 19 supports

14шт.

6a

462360R1

FLANGED BEARING

bearing, used with Refs. 18 and 19A supports

14шт.

7

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

straw spreader

7шт.

8

192240C1

SHAFT

straw spreader, 10-1/2 inch long, used with Refs. 17 and 19 supports

2шт.

8a

128440A1

SHAFT

straw spreader, 12 inch long, used with Refs. 18 and 19A supports

2шт.

9

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

BOLT hex serrated flange, 5/16 NC x 1-1/4 inch, used with Refs. 1 and 3 only

12шт.

9

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

BOLT hex serrated flange, 5/16 NC x 1-1/2 inch, used with Refs. 1 and 3 only

12шт.

185410C1

GEAR-SET

two-piece, 14 teeth, Includes: Ref. 10

2шт.

10

NSS

NOT SOLD SEPARAT

GEAR spreader drive, 14 tooth

2шт.

11

152261C1

SPACER,1 1/4" Tube x 1 7/8"

1-1/4 x 5/8 inch, cross bar

2шт.

12

195144C5

SHEET

SUPPORT dust shield, replaces 195144C4

1шт.

13

192241C4

SHAFT

cross, shaft

1шт.

14

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

15

120270A1

PIN

lock, retainer

2шт.

16

186506C1

SUPPORT

PLATE bearing

1шт.

17

1345024C1

SUPPORT

spreader drive, left hand to JJC0120460

1шт.

18

109487A1

SUPPORT

spreader drive, left hand, Start Serial: JJC0120460

1шт.

19

1345025C1

SUPPORT

spreader drive, right hand to JJC0120460

1шт.

19a

109488A1

SUPPORT

spreader drive, right hand, Start Serial: JJC0120460

1шт.

20

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

28шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

29шт.

22

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

23

38-32424

PIN,3/8" x 1 1/2", Coiled

3/8" x 1 1/2", Coiled

1шт.

24

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

flat, 1-1/32 x 1-1/2 x 1/32 inch

1шт.

25

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

2шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

27

492-11031

LOCK WASHER,5/16"

8шт.

28

425-105

NUT,5/16"-18, G5

8шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

30

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

flat, 1-1/32 x 1-1/2 x 1/16 inch

6шт.

33

A33497

LINCH PIN,4.76mm OD Pin

lock

4шт.

35

702093C1

CABLE TIE

CABLE STRAP

6шт.

36

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch, used with Refs. 2A and 3A only

24шт.

39

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch, used with Refs. 2A and 3A only

12шт.

40

108000A1

COUPLING

vertical shaft

2шт.

41

140430A1

COUPLING

anti-wrap

2шт.

42

140431A1

TUBE,48.26 mm OD, 75 mm Length

PIPE 1-3/4 (45) ID x 1-15/16 (48) OD x 3 inch (75 mm) long

2шт.

43

140432A1

BOOT

BOOT coupler

2шт.
