Запчасти Case IH 1688 (9E-32) - UNLOADER, TUBE SADDLE (17) - GRAIN TANK & UNLOADER

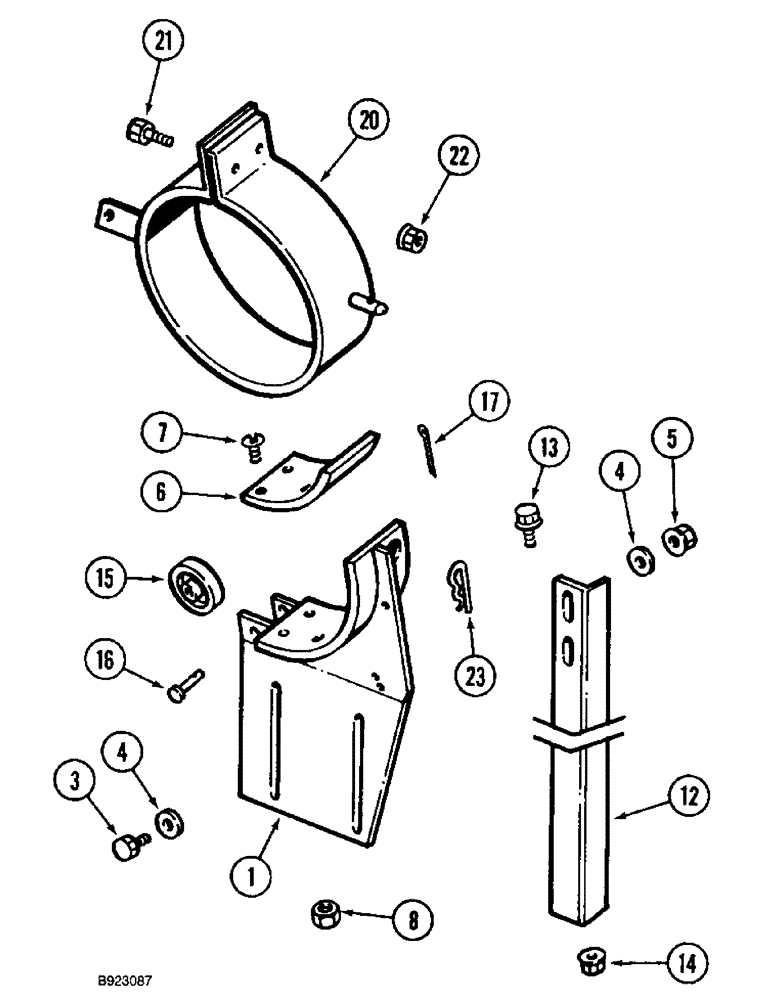

Схема запчастей Case IH 1688 - (9E-32) - UNLOADER, TUBE SADDLE (17) - GRAIN TANK & UNLOADER
23
3
4
5
1
7
15
13
20
4
6
14
8
12
16
22
17
21

Артикул

Название

Примечание

Количество

1

1321500C2

UNLOADING TUBE

BRACKET support, unloader tube saddle

1шт.

3

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

4шт.

4

495-81143

WASHER,13/32" x 1 1/2" x .120"

8шт.

5

231-5146

FLANGE NUT,3/8"-16

4шт.

6

1321498C1

PAD

saddle support bracket

1шт.

7

937875R1

SCREW,Serr, 1/4" - 20

slotted truss head, 1/4 NC x 3/4 inch

6шт.

8

231-4144

NUT,1/4"-20, GB

6шт.

12

1319222C1

SUPPORT

angle saddle

1шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

15

1321499C1

WHEEL,63.5mm OD x 28.6mm W

WHEEL unloader saddle

1шт.

16

439-5436

HEADED PIN,1/4" x 2 1/4", G5

1шт.

17

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

20

1317870C1

CLAMP

retaining

1шт.

21

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

BOLT hex flange, 5/16 NC x 1-1/4 inch

2шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

23

480523R1

HAIR PIN COTTER

1шт.

Выбрано товаров: 17
