Запчасти Case IH 1688 (9E-26) - UNLOADER, UPPER AUGER (17) - GRAIN TANK & UNLOADER

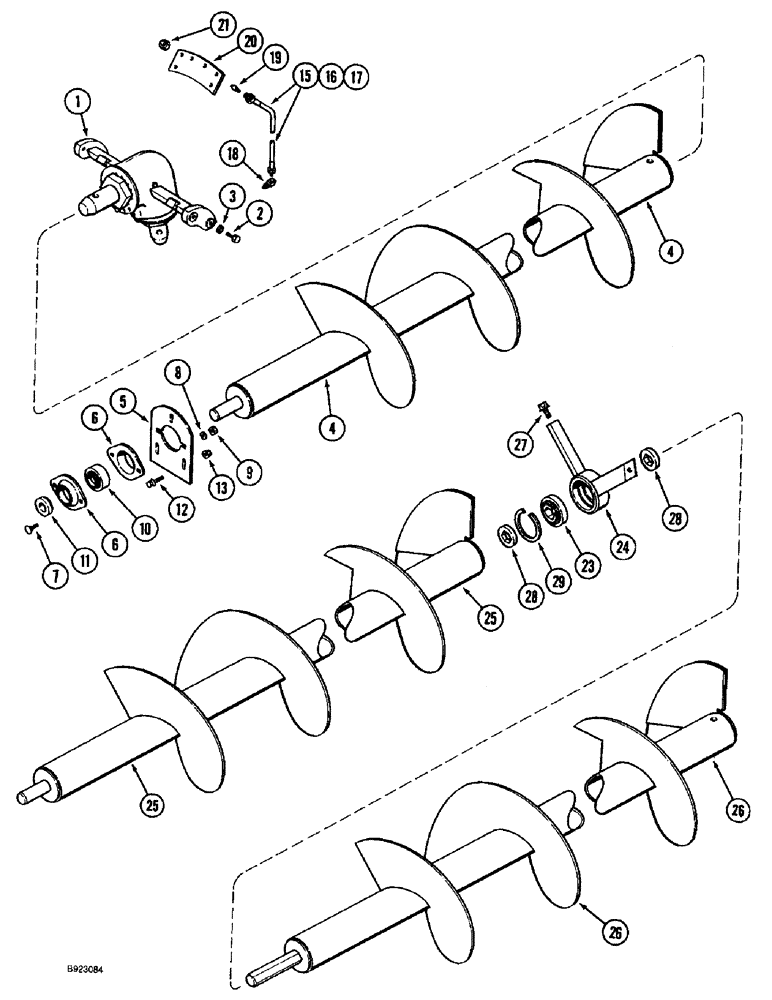

Схема запчастей Case IH 1688 - (9E-26) - UNLOADER, UPPER AUGER (17) - GRAIN TANK & UNLOADER
20
19
7
6
9
29
6
12
17
27
4
4
21
28
26
10
16
11
5
23
15
24
25
8
26
1
18
3
28
2
25
13

Артикул

Название

Примечание

Количество

1

1347351C1

HOUSING

ASSEMBLY upper gear, unloader, parts list Figure 9E-34

1шт.

1347351C2R

REMAN-GEARBOX

1688 (1/93-12/94), Reman for New PN 1347351C1

1шт.

1347351C2C

CORE-TRANSMISSION

Return Number

1шт.

2

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

1347499C2

AUGER

unloader, one piece, 172 inch, replaces 1347499C1

1шт.

5

182838C1

SUPPORT

bearing

1шт.

6

50591

FLANGE,52mm

bearing

2шт.

7

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

8

492-11031

LOCK WASHER,5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

2шт.

10

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

ball

1шт.

11

564853R11

COLLAR

locking, bearing

1шт.

12

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

15

937779R91

HOSE,1/8" ID x 22" L

Grease

2шт.

16

937781R92

HOSE,3.02mm ID x 686mm L

1шт.

17

937782R92

HOSE,3.02mm ID x 787mm L

Grease

1шт.

18

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

FITTING grease, 45 degree, special

4шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

20

1347449C1

SUPPORT

PLATE mounting, lubrication hose

1шт.

21

F53473

LOCK NUT,1/8-27 NPSM

special

4шт.

23

203389C91

BALL BEARING,25.43mm Hex x 62mm OD x 24mm W

ball, unloader split auger only

1шт.

24

1317859C1

SUPPORT

bearing, unloader split auger only

1шт.

25

1317680C2

AUGER

unloader, rear split, 172 inch, replaces 1317680C1

1шт.

25

1321147C2

AUGER

unloader, rear split, 208 inch, replaces 1321147C1

1шт.

26

1989388C2

AUGER

unloader, front split, 172 inch, replaces 1989388C1

1шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

28

1277949C1

SPACER

split auger

4шт.

29

360936R1

RING

snap, auger bearing

1шт.

Выбрано товаров: 30
