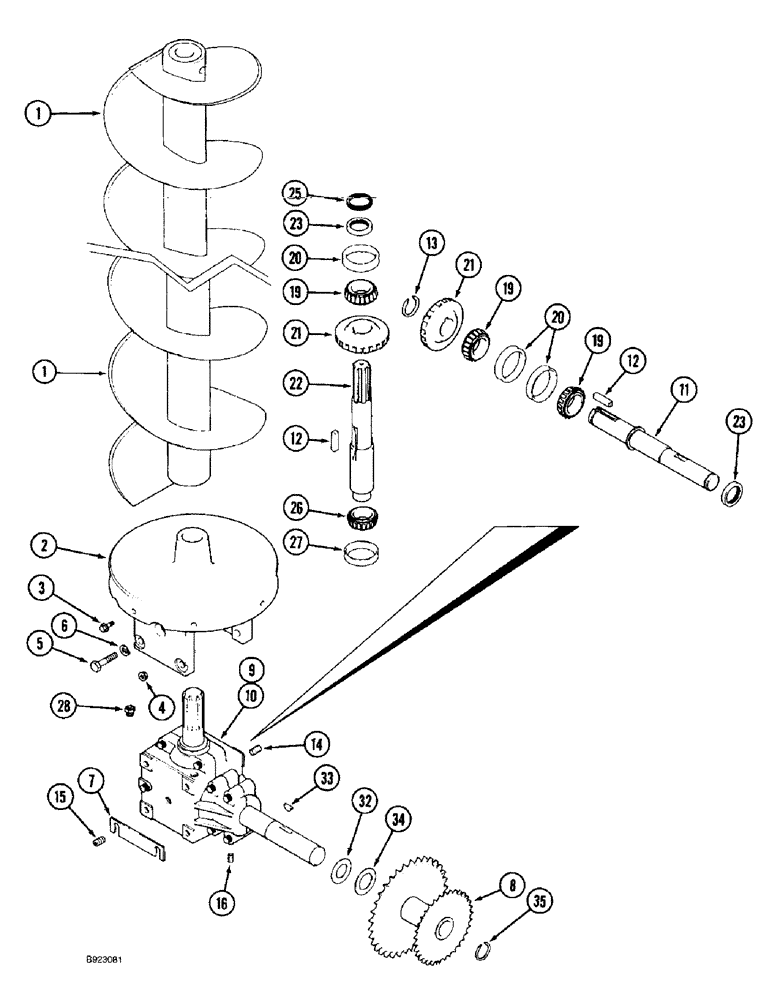

Запчасти Case IH 1688 (9E-20) - LOWER GRAIN TANK, UNLOADER AUGER (17) - GRAIN TANK & UNLOADER

1

1347389C1

AUGER

vertical, unloader

1шт.

1989350C1

CASE ASSY.

GEARBOX vertical unloader, Includes: Ref. 2 - 7

1шт.

2

1347177C1

SUPPORT

gearbox

1шт.

3

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self-locking, special, 3/8 NC x 1 inch

7шт.

3

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

4

231-5146

FLANGE NUT,3/8"-16

9шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

7

1347337C1

SHIM

lower gear

1шт.

8

1347402C1

SPROCKET

driven, 33 and 57 teeth

1шт.

9

1347336C1

GEARBOX ASSY

HOUSING, Includes: Ref. 10 - 28

1шт.

1347336C2R

REMAN-HOUSING

1688 (1/93-12/94), Reman For New P/N 1347336C1

1шт.

1347336C2C

CORE-TRANSMISSION

Return Number

1шт.

10

NSS

NOT SOLD SEPARAT

CASE gear box

1шт.

11

1989462C1

SHAFT

input, auger, 1-1/2 inch OD

1шт.

12

1989564C1

KEY

square parallel, 3/8 inch

2шт.

13

1989563C1

SNAP RING

RING snap, shaft

1шт.

14

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

Headless

1шт.

15

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

square socket, magnetic, 1/2 inch PT

1шт.

16

221-671

DRAIN PLUG,Hex Soc, 1/4" NPT

Magnetic

1шт.

19

779103R91

ROLLER BEARING

tapered roller

3шт.

20

518819R1

BEARING CUP,69.01mm OD x 15.08mm W

CONE tapered roller, inner

3шт.

21

1989464C1

PINION

GEAR drive, auger

2шт.

22

1989463C1

SHAFT

output, 1-3/8 inch OD

1шт.

23

1989581C1

SEAL,38.08mm ID x 50.08mm OD x 7.95mm Thk

shaft

2шт.

24

61-33836

HEX SOC SCREW,3/8 - 16 x 2-1/4"

BOLT hex socket, 3/8 NC x 2-1/4 inch, not shown

1шт.

25

1347432C2

SEAL,38.08mm ID x 42mm OD x 7.5mm Thk

oil, bearing

2шт.

26

20879D

ROLLER BEARING,1.375" ID x 2.77" OD x 0.7813"

tapered roller

1шт.

27

ST991

BEARING CUP

tapered roller

1шт.

28

18437R91

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

VALVE pressure relief, 1/8 inch PT

1шт.

32

1327731C1

THRUST WASHER

flat, special, 1-13/32 x 2-1/4 x 1/8 inch

7шт.

33

126-133

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

34

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

flat, 1-13/32 x 2-1/4 x 1/8 inch

3шт.

35

A21619

CIRCLIP

RING snap

1шт.
