Запчасти Case IH 1688 (9E-16) - GRAIN TANK UNLOADER, CHAIN DRIVE (17) - GRAIN TANK & UNLOADER

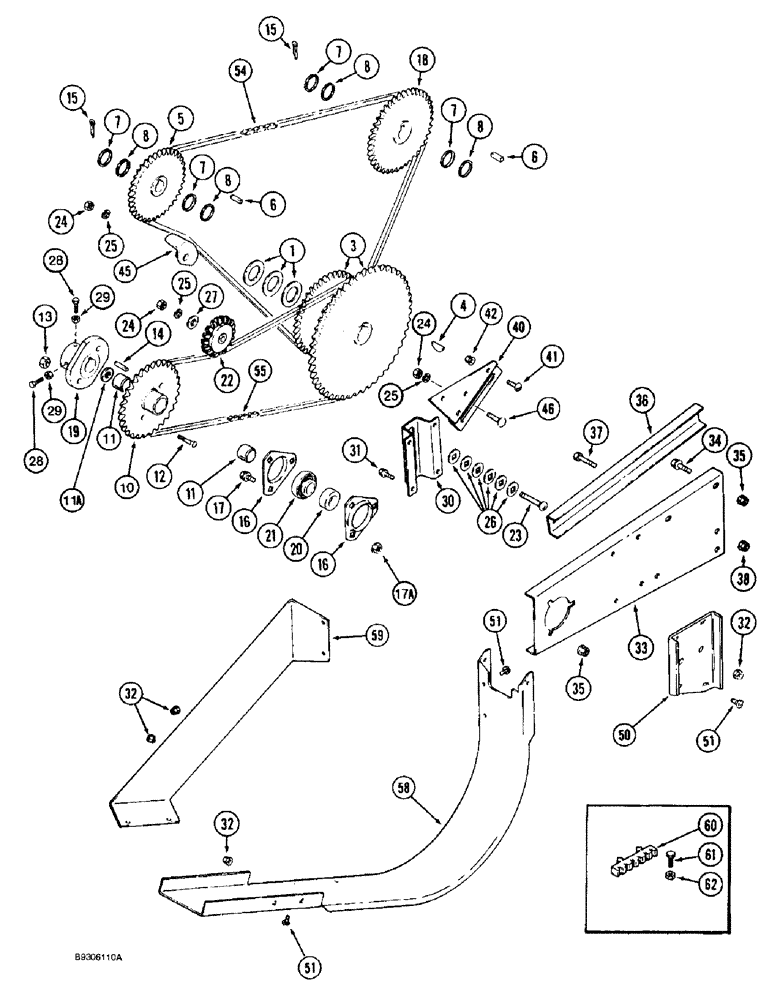

Схема запчастей Case IH 1688 - (9E-16) - GRAIN TANK UNLOADER, CHAIN DRIVE (17) - GRAIN TANK & UNLOADER
41
5
45
3
37
31
11
50
62
59
42
36
6
15
6
29
32
46
7
54
30
25
18
8
16
33
27
25
35
40
38
16
61
24
58
32
7
12
20
32
4
11
15
17a
17
19
22
21
25
35
24
11a
23
51
60
24
26
10
51
7
14
28
7
55
28
8
51
8
8
1
13
29
34

Артикул

Название

Примечание

Количество

1

1327731C1

THRUST WASHER

flat, special, 1-13/32 x 2-1/4 x 1/8 inch

3шт.

3

1347402C1

SPROCKET

driven, 33 and 57 teeth

1шт.

4

126-133

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

5

192922C1

SPROCKET

driven, 43 tooth

1шт.

6

Q53

KEY,1/4" Sq x 1", Par

2шт.

7

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

flat, 1-1/32 x 1-1/2 x 7/64 inch

8шт.

8

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

flat, 1-1/32 x 1-1/2 x 1/16 inch

4шт.

10

1347360C1

SPROCKET

drive, 33 teeth, Includes: Ref. 11

1шт.

11

1347384C1

BEARING,31.77mm ID x 19.05mm L

BUSHING sprocket

2шт.

11a

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

flat, 1-9/32 x 1-3/4 x 1/16 inch

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

231-1445

NUT,5/16"-18, GB

2шт.

14

126-147

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

1шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

16

180955C1

FLANGED BEARING,0.375"

bearing

2шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

17a

231-5146

FLANGE NUT,3/8"-16

3шт.

18

192925C1

SPROCKET

driven, 37 teeth

1шт.

19

1347399C1

HUB

HUB unloader drive

1шт.

20

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

ball

1шт.

21

455104R11

COLLAR

locking, bearing

1шт.

22

565442R91

SPROCKET

tightener

1шт.

23

434-832

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2", Gr 5

1/2 NC x 2 inch

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

2шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

26

498-81005

SQ HOLE WASHER,13.49mm ID x 25.4mm OD x 1.52mm Thk

square hole, 17/32 x 1 x 1/16 inch

1шт.

27

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

1шт.

28

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

2шт.

29

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

30

192901C1

SUPPORT

BRACKET sprocket

1шт.

31

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

33

1347379C1

SUPPORT

jackshaft, outer

1шт.

34

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

3шт.

35

231-5146

FLANGE NUT,3/8"-16

3шт.

36

1319469C1

CHANNEL

support

1шт.

37

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

38

231-5146

FLANGE NUT,3/8"-16

4шт.

40

193779C1

SUPPORT

PLATE

1шт.

41

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

3шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

45

936878R1

BLOCK

tightener

1шт.

46

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT carriage, 1/2 NC x 1-1/4 inch

1шт.

50

1302435C2

SUPPORT

shield

1шт.

51

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

8шт.

54

113200A1

CHAIN

drive, use 149 links of 1790D bulk and (1) 1301D connecting link, lower auger

1шт.

Use 149 links of 1790D chain and (1) connecting link 1301D.

1шт.

55

1303207C91

CHAIN

drive, use 127 links of 1791D bulk, (2) 1310D connecting links, (1) 1315D offset link and (1) 1309D roller link, unloader

1шт.

Use 127 links of 1791D chain and (2) connecting link 1310D and (1) offset link 1315D and (1) roller link 1309D.

1шт.

58

1302434C2

GUARD

SHIELD drive, unloader

1шт.

59

183351C1

PLATE

side, drive shield

1шт.

60

3102155R1

HOLDER

shear bolt

1шт.

61

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

6шт.

62

231-1445

NUT,5/16"-18, GB

6шт.

Выбрано товаров: 54
