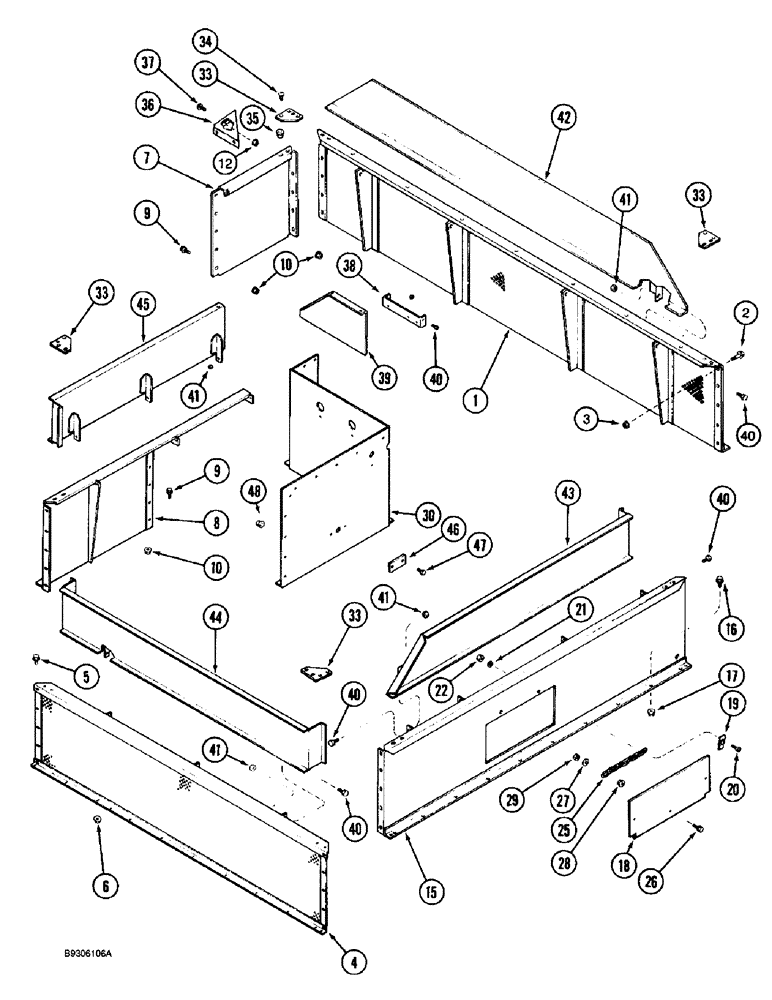

Запчасти Case IH 1688 (9E-06) - GRAIN TANK EXTENSIONS (17) - GRAIN TANK & UNLOADER

1

1327652C4

SHIELD

EXTENSION grain tank, front

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

25шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

25шт.

4

1327593C3

SHIELD

EXTENSION grain tank, rear

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

21шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

21шт.

7

1321775C1

EXTENSION

grain tank, left hand front

1шт.

8

1321771C1

EXTENSION

grain tank, left hand rear

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

29шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

29шт.

12

231-5146

FLANGE NUT,3/8"-16

4шт.

15

1327640C1

EXTENSION

grain tank, right hand

1шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

18

1327644C2

PLATE

DOOR extension

1шт.

19

167800C1

CLIP

door retaining clip

2шт.

20

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

21

492-11010

LOCK WASHER,#10

2шт.

22

225-14110

NUT,#10-24

2шт.

25

167570C1

CHAIN,203.2mm L

latch

1шт.

26

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

27

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

28

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

29

231-4144

NUT,1/4"-20, GB

2шт.

30

1317635C2

SHEET

SUPPORT center extension, left hand, replaces 1317635C1

1шт.

33

1321757C1

PLATE

BAR extension

4шт.

34

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

16шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

36

1327510C1

SUPPORT

center extension gusset

1шт.

37

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

4шт.

38

1321802C1

CHANNEL

flip up, left hand front

1шт.

39

1321829C1

EXTENSION

flip up, left hand front

1шт.

40

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

16шт.

41

231-1435

LOCK NUT,5/16"-18, GB

Hex, self locking

16шт.

42

1321779C2

EXTENSION

flip up, upper front

1шт.

43

1979256C1

EXTENSION

flip up, right hand

1шт.

44

1979230C1

CABLE EXTENSION

flip up, rear

1шт.

45

1979232C1

CABLE EXTENSION

flip up, left hand rear

1шт.

46

1317645C2

PLATE

COVER bearing hole, replaces 1317645C1

1шт.

47

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.
