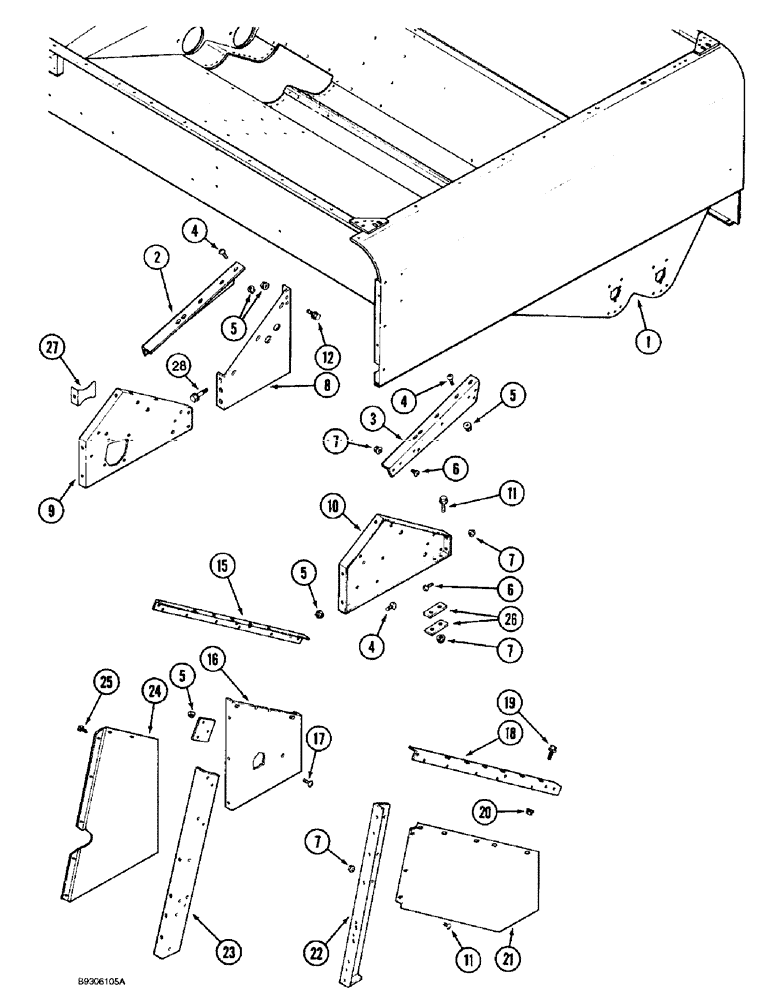

Запчасти Case IH 1688 (9E-04) - GRAIN TANK LOWER SUPPORTS (17) - GRAIN TANK & UNLOADER

1

REF

INSTRUCTION

TANK ASSEMBLY grain, parts list Figure 9E-2

1шт.

2

192768C2

SUPPORT

grain tank, diagonal left hand

1шт.

3

192769C2

SUPPORT

grain tank, diagonal right hand

1шт.

4

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

6

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

7

231-5146

FLANGE NUT,3/8"-16

1шт.

8

193429C2

SUPPORT

grain tank, left hand front

1шт.

9

192771C2

SUPPORT

grain tank, center left hand

1шт.

10

192772C2

SUPPORT

grain tank, center right hand

1шт.

11

409-7612

BOLT,3/8"-16 x 1.09" OAL

17шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

15

193469C1

SUPPORT

grain tank, rear bottom left hand

1шт.

16

1347380C2

SUPPORT

grain tank, left hand rear, replaces 1347380C1

1шт.

17

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

1шт.

18

193470C1

SUPPORT

ANGLE grain tank, rear bottom right hand

1шт.

19

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

BOLT hex serrated flange, 1/2 NC x 1 inch

4шт.

20

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

21

193465C2

COVER

SUPPORT grain tank, rear right hand, replaces 193465C1

1шт.

22

181394C1

SUPPORT

grain tank, rear vertical right hand

1шт.

23

193462C2

SUPPORT

grain tank, rear vertical left hand

1шт.

24

193464C1

SUPPORT

grain tank, rear left hand

1шт.

25

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

17шт.

26

1302549C1

SHIM

BAR grain tank, front left hand post

1шт.

27

193531C1

SUPPORT

filler

4шт.

28

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

BOLT hex serrated flange, 1/2 NC x 1-1/2 inch

2шт.
