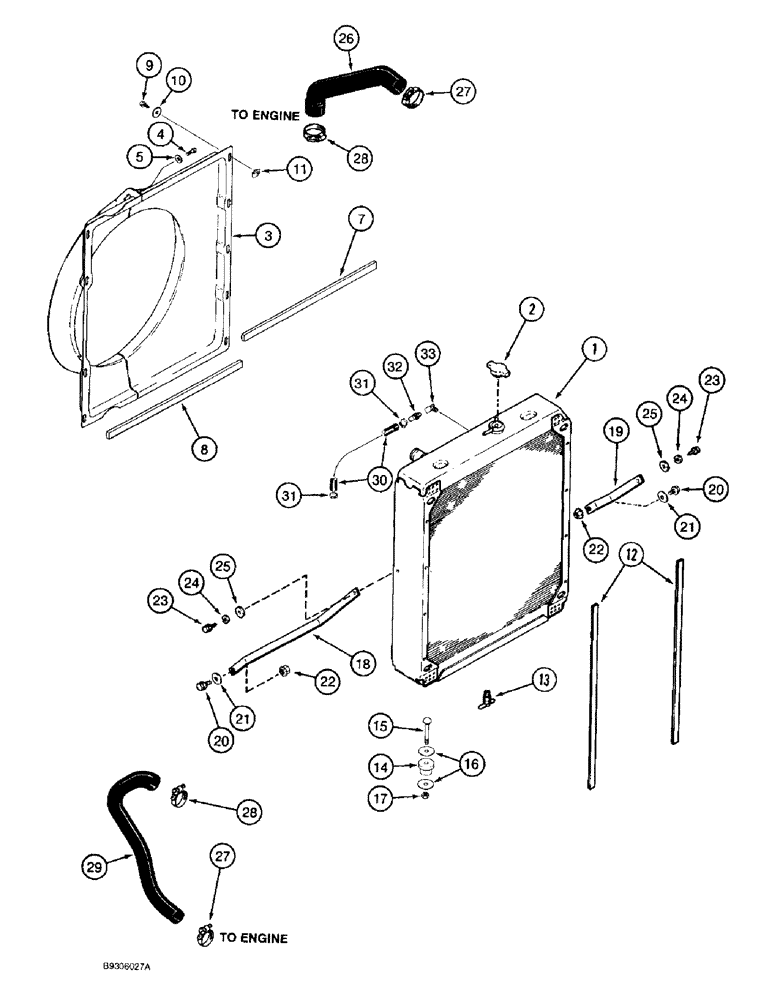

Запчасти Case IH 1688 (2-02) - RADIATOR AND FAN SHROUD (01) - ENGINE

1

116154A1

RADIATOR

engine cooling, grain and corn only, replaces A189067

1шт.

1

117403A1

RADIATOR

engine cooling, rice only, replaces A189479

1шт.

2

A170241

RADIATOR CAP

15 psi

1шт.

3

117404A3

ORIFICE RING

SHROUD fan, includes both halves

1шт.

4

806-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9

Includes Ref. 4 and 5

4шт.

5

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

flat, 9 x 17 x 2 mm, hardened

4шт.

7

1970457C2

SEAL

31 inch (787 mm) long, cut from 1974883CX bulk seal see this Figure

1шт.

8

1979476C1

SEAL

28-3/4 inch (730 mm) long, cut from 1974883CX bulk seal see this Figure

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

9-10шт.

10

495-81001

WASHER,5/16"

flat, 3/8 x 1-1/8 x 1/16 inch

9-10шт.

11

488837C1

SPRING NUT

speed, 5/16 inch NC

9-10шт.

12

118327A1

SEAL

38-25/32 inch (985 mm) long, cut from 195917C1 bulk seal, see this Figure

2шт.

13

86982771

VALVE

drain, 1/4 inch PT

1шт.

14

R29799

SHOCK ABSORBER

INSULATOR rubber

2шт.

15

434-736

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

2шт.

16

495-81013

WASHER,.469" x 1 3/4" x .120"

4шт.

17

231-4117

LOCK NUT,7/16"-14, GB

hex, self-locking, 7/16 inch NC

2шт.

18

118056A1

SUPPORT

radiator, left hand

1шт.

19

118055A2

SUPPORT

radiator, right hand

1шт.

20

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self-locking, special, 3/8 NC x 1 inch

2шт.

21

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

22

231-5146

FLANGE NUT,3/8"-16

2шт.

23

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

2шт.

24

492-11031

LOCK WASHER,5/16"

2шт.

25

495-81001

WASHER,5/16"

flat, 3/8 x 1-1/8 x 1/16 inch

2шт.

26

117405A1

RADIATOR HOSE,50.80 mm ID, 56.00 mm ID x 368.40 mm

engine inlet

2шт.

27

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

Adj.

2шт.

28

214-3248

HOSE CLAMP,57mm - 79mm

Adj., Replaces 1979481C1

2шт.

29

1979382C2

HOSE

Engine Outlet

1шт.

30

100393A1

RADIATOR HOSE,660.00 mm

Vent, Radiator to Engine, If Used

1шт.

30

1960764C1

RADIATOR HOSE,9.50 mm ID x 560.00 mm, SAE 20R3

If used

1шт.

31

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

Adjustable

2шт.

32

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Adapter - straight

1шт.

33

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

1шт.

195917C1

GASKET

SEAL bulk, foam, adhesive backed, 600 inch (15240 mm) long

1шт.

1974883CX

SEAL

bulk, adhesive backed, 1/2 (13) x 1-1/2 (38) x 600 inch (15240 mm) long

1шт.
