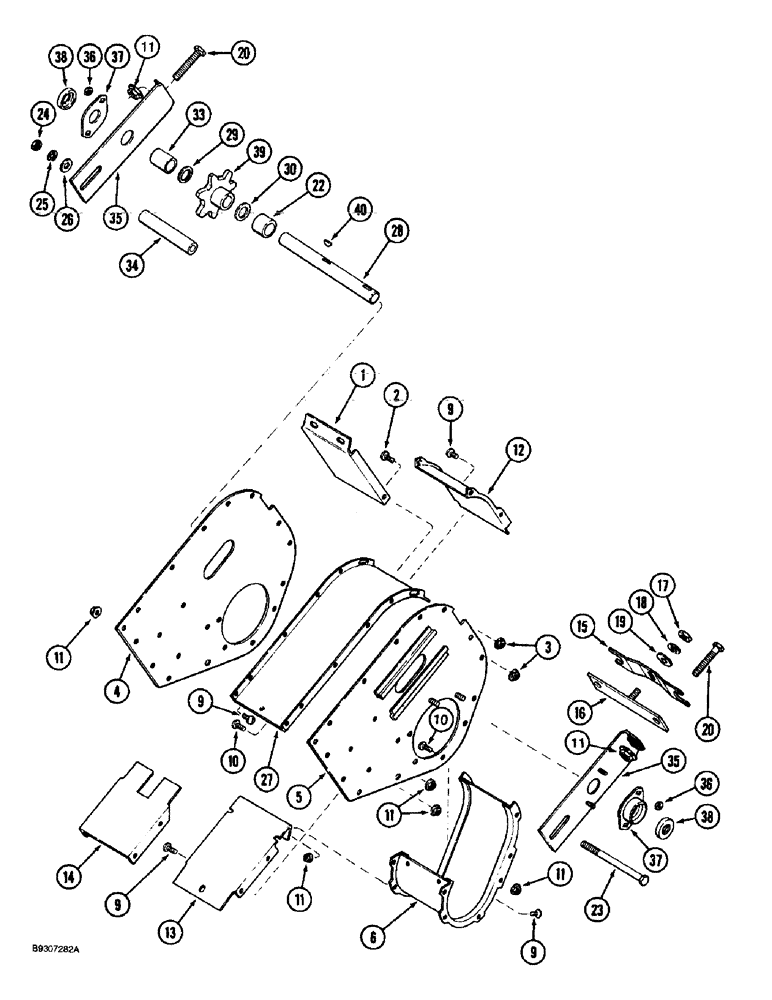

Запчасти Case IH 1688 (9D-24) - TAILINGS ELEVATOR, HEAD (16) - GRAIN ELEVATORS & AUGERS
№
Артикул
Название
Примечание
Количество
1
192426C1
SUPPORT
elevator upper
1шт.
2
135270
SERRATED SCREW,5/16" - 18 x 3/4"
slotted truss head, 5/16 NC x 3/4 inch
2шт.
3
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
4
181366C1
SIDE PLATE
COVER head, left hand
1шт.
5
181367C1
SIDE PLATE
COVER head, right hand
1шт.
6
188119C1
TROUGH
head
1шт.
9
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
slotted truss head, 5/16 NC x 1/2 inch
24шт.
10
135270
SERRATED SCREW,5/16" - 18 x 3/4"
slotted truss head, 5/16 NC x 3/4 inch
11шт.
11
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
36шт.
12
191776C1
COVER
COVER head
1шт.
13
191782C1
SUPPORT
COVER head, lower
1шт.
15
181376C1
CLAMP
tightener
1шт.
16
181375C1
SUPPORT
BAR tightener
1шт.
17
425-106
NUT,3/8"-16, Cl 5
1шт.
18
492-11038
LOCK WASHER,3/8"
1шт.
19
495-71041
WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk
flat, 13/32 x 1-1/4 x 3/32 inch
1шт.
20
667486R1
BOLT
BOLT hex, 1/2 NC x 3-1/2 inch
2шт.
22
27828R1
SPACER,26.6mm ID x 33.4mm OD x 39.7mm L
1шт.
23
424-5112
BOLT,Hex, 5/16" - 18 x 7", Gr 2
BOLT hex, 5/16 NC x 7 inch, grade 2
1шт.
24
425-105
NUT,5/16"-18, G5
1шт.
26
495-11034
WASHER,5/16", SAE
(flat, 11/32 x 11/16 x 1/16")
2шт.
27
191783C1
TOP COVER
COVER head
1шт.
28
191785C1
SHAFT
head
1шт.
29
495-81065
WASHER,26.19mm ID x 31.75mm OD x 1.7mm Thk
flat, 1-1/32 x 1-1/4 x 3/64 inch
1шт.
30
495-81073
WASHER,1-1/32" x 1-3/4" x .060" Thk
flat, 1-1/32 x 1-3/4 x 1/16 inch
2шт.
33
516327R1
SPACER,26.6mm ID x 33.4mm OD x 69.8mm L
1шт.
34
27829R1
SPACER,9.2mm ID x 13.72mm OD x 147.6mm L
1шт.
35
181364C1
SUPPORT
shaft
2шт.
36
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
37
214490C91
BALL BEARING,25.4mm ID
ball
2шт.
38
455102R21
COLLAR
locking, bearing, includes set screw
2шт.
39
168683C1
SPROCKET
drive
1шт.
40
126-124
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
Выбрано товаров: 35
