Запчасти Case IH 1688 (9D-22) - TAILINGS ELEVATOR, HOUSING AND CONVEYOR (16) - GRAIN ELEVATORS & AUGERS

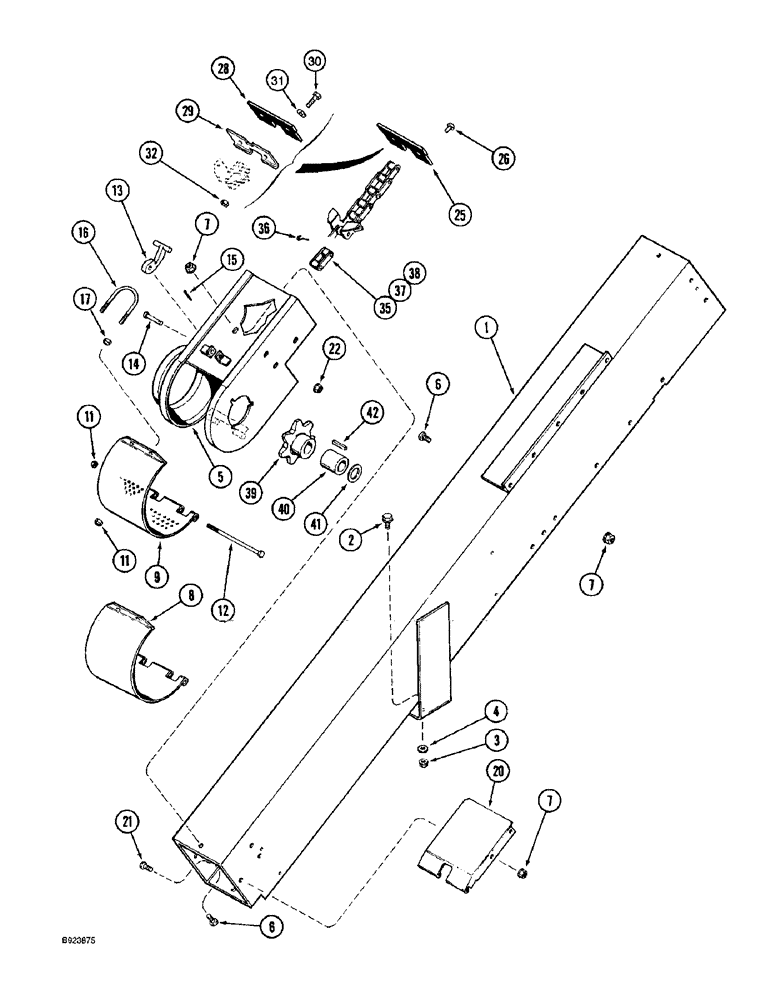

Схема запчастей Case IH 1688 - (9D-22) - TAILINGS ELEVATOR, HOUSING AND CONVEYOR (16) - GRAIN ELEVATORS & AUGERS
5
15
37
17
21
7
9
31
32
42
8
38
40
3
4
28
29
13
26
11
20
6
22
30
6
1
41
12
25
2
35
16
39
7
11
7
14
36

Артикул

Название

Примечание

Количество

1

192430C2

ELEVATOR TUBE

HOUSING elevator

1шт.

2

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self-locking, special, 3/8 NC x 1 inch

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

8шт.

5

183160C1

BOOT

elevator

1шт.

6

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

8шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

8

156910C1

DOOR

boot, not perforated

1шт.

9

174193C1

DOOR

boot, perforated

1шт.

11

232-4115

LOCK NUT,5/16"-18, GC

1шт.

12

413-5104

BOLT,Hex, 5/16" - 18 x 6-1/2", Gr 5

BOLT hex, 5/16 NC x 6-1/2 inch

1шт.

13

155909C1

LATCH

door

1шт.

14

439-1420

HEADED PIN,1/4" x 1 1/4"

headed, 1/4 x 1-1/4 inch, grade 2

1шт.

15

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

16

664360R1

BOLT,U, 1/4" - 20 x 69.65"

U door

1шт.

17

22468R1

BOLT,Hex, 7/8" - 9 x 11", Gr 5

NUT hex, self-locking, 1/4 inch NC

2шт.

20

191790C2

END

HINGE bottom

1шт.

21

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

4шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

CONVEYOR ASSEMBLY, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

CONVEYOR elevator

1шт.

1303123C91

ELEVATOR CHAIN

FLIGHT ASSEMBLY rubber, Includes: Ref. 25 and 26

27шт.

25

1303116C1

RUBBER FLIGHT

conveyor

1шт.

26

185315C1

RIVET

3/8 x 5/8 inch

2шт.

1303124C92

RUBBER FLIGHT

ASSEMBLY two piece, service only, does not include conveyor, Includes: Ref. 28 - 32

1шт.

28

1303116C1

RUBBER FLIGHT

conveyor

1шт.

29

1303125C1

STEEL FLIGHT

conveyor

1шт.

30

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

31

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

32

232-4115

LOCK NUT,5/16"-18, GC

2шт.

35

241-15113

LINK,41.4mm Pitch

single pitch, No. C550, 1-5/8 inch

1шт.

36

23442R1

PIN,2.36mm OD

S type, roller, chain

1шт.

37

241-18113

LINK,41.4mm Pitch

offset, single pitch, No. C550, 1-5/8 inch

1шт.

38

631253R91

LINK

roller, single pitch

1шт.

39

1302200C1

SPROCKET ASSY.

conveyor chain

1шт.

40

28082R1

SPACER,1 3/8" Tube x 1 3/8"

1-3/8 x 1-3/8 inch

1шт.

41

495-81188

WASHER,1.16" ID x 1.75" OD x 0.06" Thk

flat, 1-5/32 x 1-3/4 x 3/64 inch

1шт.

42

Q1443

KEY,5/16" Sq x 1 1/2", Par

1шт.

Выбрано товаров: 38
