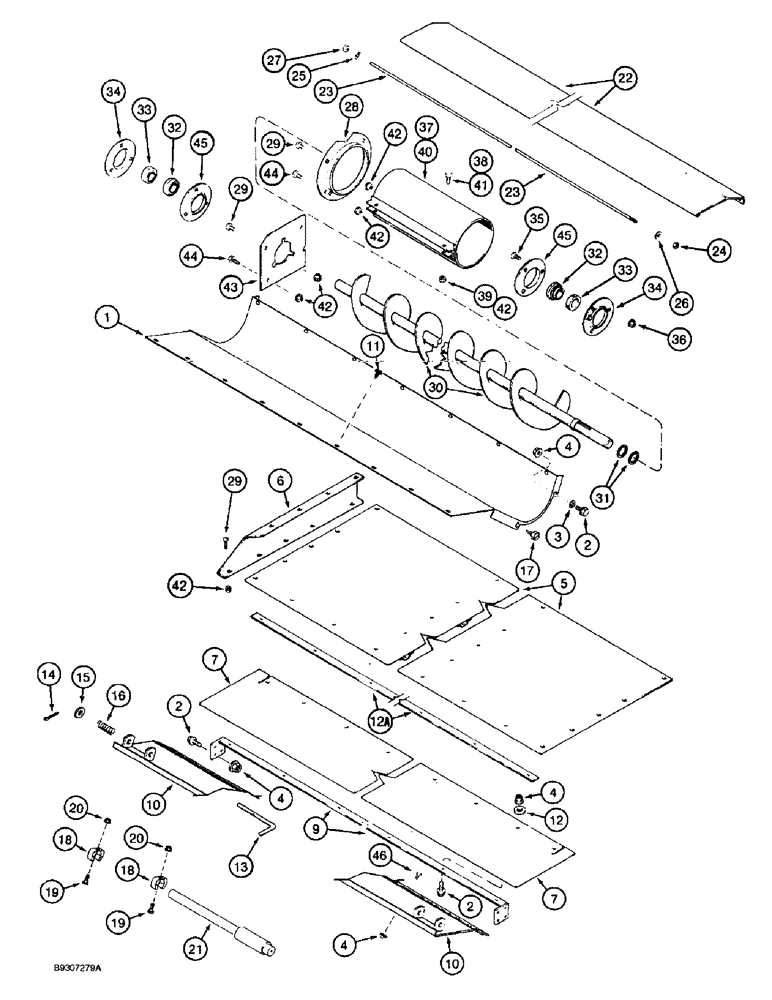

Запчасти Case IH 1688 (9D-16) - TAILINGS AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS

1

1346938C1

TROUGH

auger

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

12шт.

3

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

5

1970423C1

SHEET

PANEL tailings return

1шт.

6

1346963C1

SUPPORT

tailings pan

2шт.

7

1979194C1

SEAL

tailings panel

1шт.

9

1970529C1

SUPPORT

tailings door

1шт.

10

191978C2

TAILGATE

trough

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

12

495-81121

WASHER,.344" x 1 1/2" x .060"

flat, 11/32 x 1-1/2 x 1/16 inch, if used

6шт.

12a

122851A1

STRAP

SEAL panel, if used

1шт.

13

186736C3

ROD

PIN latch

2шт.

14

432-616

COTTER PIN,3/32" x 1"

2шт.

15

495-51041

WASHER,3/8"

flat, 13/32 x 47/64 x 1/16 inch

2шт.

16

540815R2

SPRING

latch pin

2шт.

17

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

8шт.

18

106744A1

CLIP

retainer

2шт.

19

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips, No. 10 NC x 1/2 inch

2шт.

20

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

21

106743A1

HANDLE

extension

1шт.

22

185196C1

DOOR

trough

1шт.

23

185197C1

ROD

auger door

1шт.

24

425-105

NUT,5/16"-18, G5

1шт.

25

492-11031

LOCK WASHER,5/16"

1шт.

26

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

27

231-5315

FLANGE NUT,Flg, 5/16"-18

1шт.

28

160324C2

FLANGE

mounting

1шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

1шт.

30

192549C2

AUGER

tailings

1шт.

31

495-81190

WASHER,1.16" ID x 1.75" OD x 0.12" Thk

flat, 1-5/32 x 1-3/4 x 1/8 inch

1шт.

32

939475R92

BEARING ASSY

ball

2шт.

33

557115R11

COLLAR

locking

2шт.

34

939460R91

FLANGE

bearing

2шт.

35

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

5-6шт.

35

117657A1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 2"

1шт.

36

231-5146

FLANGE NUT,3/8"-16

6шт.

37

192696C1

EXTENSION

extension, non-perforated

1шт.

38

424-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 2

BOLT hex, 5/16 NC x 1-1/4 inch, grade 2

3шт.

39

232-4115

LOCK NUT,5/16"-18, GC

3шт.

40

195075C1

SCREEN

extension, perforated

1шт.

41

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

3шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

43

183158C1

COVER

PLATE bearing support

1шт.

44

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

1шт.

45

939461R1

FLANGE

bearing

2шт.

46

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

8шт.
