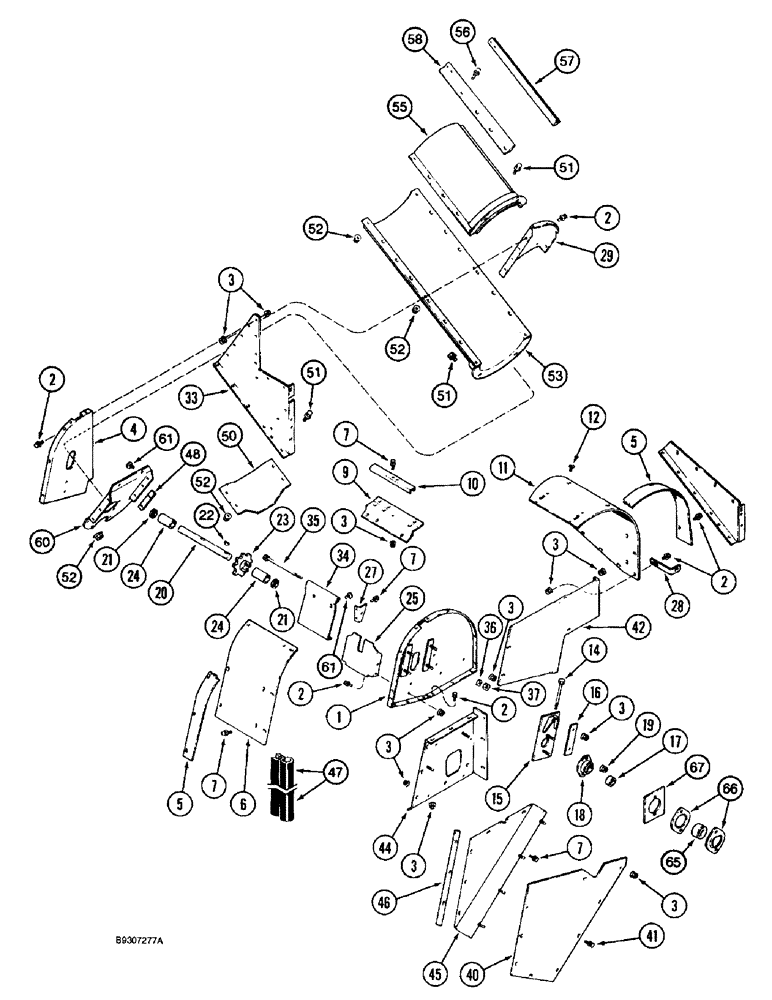

Запчасти Case IH 1688 (9D-06) - GRAIN ELEVATOR HEAD, INCLINED (16) - GRAIN ELEVATORS & AUGERS

1

1319908C1

SIDE PLATE

SIDE elevator head, right hand

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

53шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

76шт.

4

1319901C1

SIDE PLATE

SIDE elevator head, left hand

1шт.

5

1321230C1

PLATE

SEAL rear cover

1шт.

6

1319940C1

COVER

rear

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

28шт.

9

1319959C1

SUPPORT

tightener, conveyor

1шт.

10

1317474C1

CHANNEL

lock, tightener, replaced by 1317474C2

1шт.

10

1317474C2

CHANNEL

lock, tightener, replaces 1317474C1

1шт.

11

1319941C1

COVER

front, head

1шт.

12

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

14

820430C1

BOLT,Hex, 1/2" - 13 x 5 1/2", Full Thd

hex, special, 1/2 NC x 5-1/2 inch

2шт.

15

1317251C2

SUPPORT

headshaft

2шт.

16

1310040C1

BAR

guide, headshaft

4шт.

17

557995R11

COLLAR

bearing, with set screw

2шт.

18

1317250C91

FLANGED BEARING,31.75mm ID

auger, right, headshaft

2шт.

19

231-5146

FLANGE NUT,3/8"-16

4шт.

20

1317470C1

SHAFT

elevator head

1шт.

21

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

flat, 1-9/32 x 1-3/4 x 1/16 inch

6шт.

22

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

23

1317192C1

SPROCKET

drive

1шт.

24

1317471C1

SPACER

sprocket

2шт.

25

1318476C1

PLATE

extension

1шт.

27

1321553C1

BRACKET

support

1шт.

28

1321833C1

STRAP

BRACKET brace

1шт.

29

121370A1

PLATE

side, left hand front, includes decal, Includes: Ref. 29A

1шт.

29a

1319494C1

PRODUCT GRAPHIC

DECAL Danger, Do not enter grain tank, 102 x 121 mm, not shown, for correct decal see Figure 9H-40 Ref. 3

3шт.

33

1321550C2

SUPPORT

PANEL rear

1шт.

34

1319954C1

BRACKET

SECTION cut-off

1шт.

35

413-5144

BOLT,Hex, 5/16" - 18 x 9", Gr 5

BOLT hex, 5/16 NC x 9 inch

1шт.

36

492-11031

LOCK WASHER,5/16"

1шт.

37

425-105

NUT,5/16"-18, G5

1шт.

40

1321095C1

PANEL

SHEET side, right hand

1шт.

41

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

42

1321097C2

COVER

auger

1шт.

44

1321060C1

SUPPORT

mounting

1шт.

45

1321497C1

PANEL

SHEET side, left hand

1шт.

46

1321155C1

SPACER

spacer

1шт.

47

1321263C1

RUBBER SEAL,1137mm L

flange

2шт.

48

1321554C1

PLATE

BAR filler

1шт.

50

1321556C1

COVER

U-joint, auger

1шт.

51

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

52

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

53

1321557C2

TUBE,887 mm Length

TROUGH lower

1шт.

55

1321560C2

TROUGH

TROUGH upper

1шт.

56

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

57

1321568C2

ANGLE

BRACKET support, front

1шт.

58

1321569C2

ANGLE

BRACKET support, rear

1шт.

60

1979134C1

SUPPORT

PLATE auger bearing

1шт.

61

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

4шт.

64

1321552C2

SUPPORT

PLATE side, front

1шт.

65

156011C92

BALL BEARING

ball

2шт.

66

581469R1

FLANGE,Bearing

bearing retainer

4шт.

67

1979642C1

SPACER

bearing flange

2шт.
