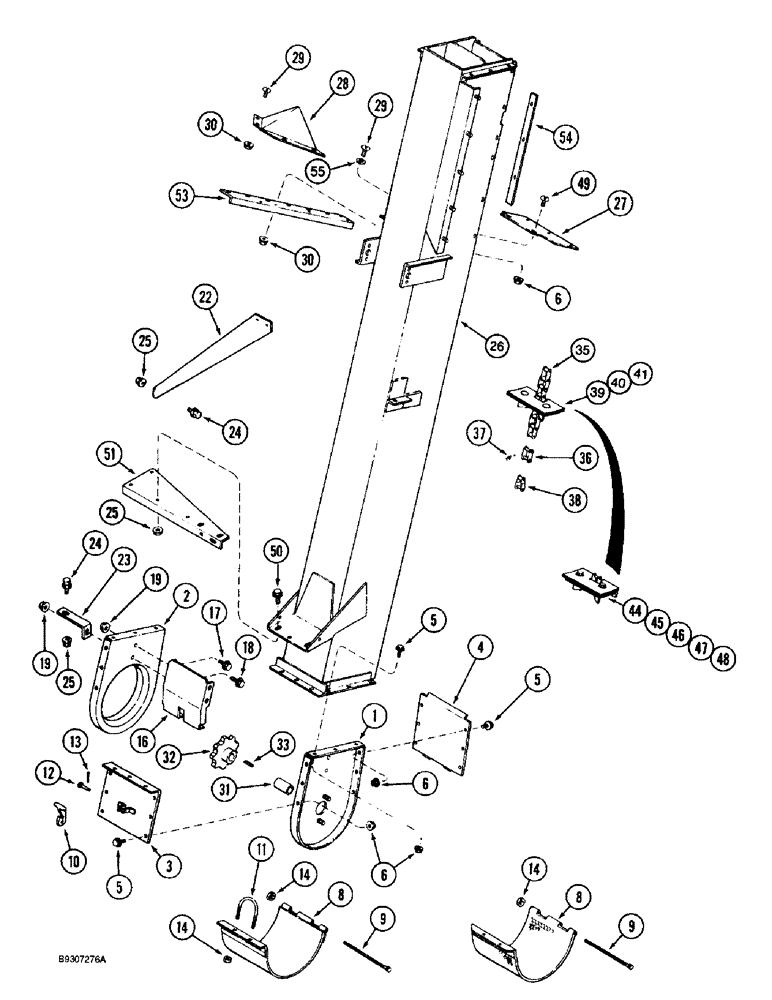

Запчасти Case IH 1688 (9D-04) - GRAIN ELEVATOR, HOUSING AND BOOT (16) - GRAIN ELEVATORS & AUGERS

1

1318585C2

SIDE PLATE

SIDE boot, outer

1шт.

2

1318584C2

SUPPORT

SIDE boot, inner

1шт.

3

1317437C1

COVER

rear, boot

1шт.

4

1317439C1

COVER

front, boot

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

8

1317430C1

DOOR

boot, non-perforated

1шт.

8

1317842C1

DOOR

boot, perforated

1шт.

9

424-5152

BOLT,Hex, 5/16" - 18 x 9-1/2", Gr 2

BOLT hex, 5/16 NC x 9-1/2 inch, grade 2

1шт.

10

155909C1

LATCH

door

1шт.

11

316039R1

BOLT,5/16" - 18 x 5", Carbon Steel

U 5/16 inch NC

1шт.

12

439-1420

HEADED PIN,1/4" x 1 1/4"

headed, 1/4 x 1-1/4 inch, grade 2

1шт.

13

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

14

232-4115

LOCK NUT,5/16"-18, GC

3шт.

16

1318590C1

GUARD

DEFLECTOR grain, bottom

1шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

7шт.

18

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self-locking, special, 3/8 NC x 1 inch

1шт.

19

231-5146

FLANGE NUT,3/8"-16

10шт.

22

1317362C3

SUPPORT ASSY.

BRACKET lower

1шт.

23

186729C2

SUPPORT

elevator

1шт.

24

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

25

231-5146

FLANGE NUT,3/8"-16

5шт.

26

1317456C3

HOUSING

elevator

1шт.

27

1317694C1

PLATE

seal

1шт.

28

1317699C1

SUPPORT

rear seal

1шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

19шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

19шт.

31

1317471C1

SPACER

33 x 38 x 77 mm

1шт.

32

1317192C1

SPROCKET

drive

1шт.

33

Q1443

KEY,5/16" Sq x 1 1/2", Par

1шт.

35

1317482C92

ELEVATOR CHAIN

elevator, Includes: Ref. 36 - 41

1шт.

36

241-15113

LINK,41.4mm Pitch

single pitch, No. C550, 1-5/8 inch, Includes: Ref. 37

1шт.

37

23442R1

PIN,2.36mm OD

S type, roller

2шт.

38

241-18113

LINK,41.4mm Pitch

offset, single pitch, No. C550, 1-5/8 inch

1шт.

39

1317614C92

RUBBER FLIGHT

ASSY, Includes: Ref. 40 and 41

38шт.

40

1318493C1

RUBBER FLIGHT

conveyor

1шт.

41

185053C1

RIVET

23/64 x 3/4 inch

2шт.

44

1321444C92

STEEL FLIGHT

ASSY, Includes: Ref. 45 - 48

1шт.

45

NSS

NOT SOLD SEPARAT

FLIGHT conveyor

1шт.

46

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

47

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

48

231-4116

NUT,3/8"-16, GB

hex, self-locking, 3/8 inch NC

2шт.

49

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

2шт.

50

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

51

192223C2

BRACKET

elevator side

1шт.

53

1317475C1

BRACKET

ANGLE left tank bottom stiffener

1шт.

54

1321155C1

SPACER

spacer

1шт.

55

495-81121

WASHER,.344" x 1 1/2" x .060"

flat, 11/32 x 1-1/2 x 1/16 inch

7шт.
