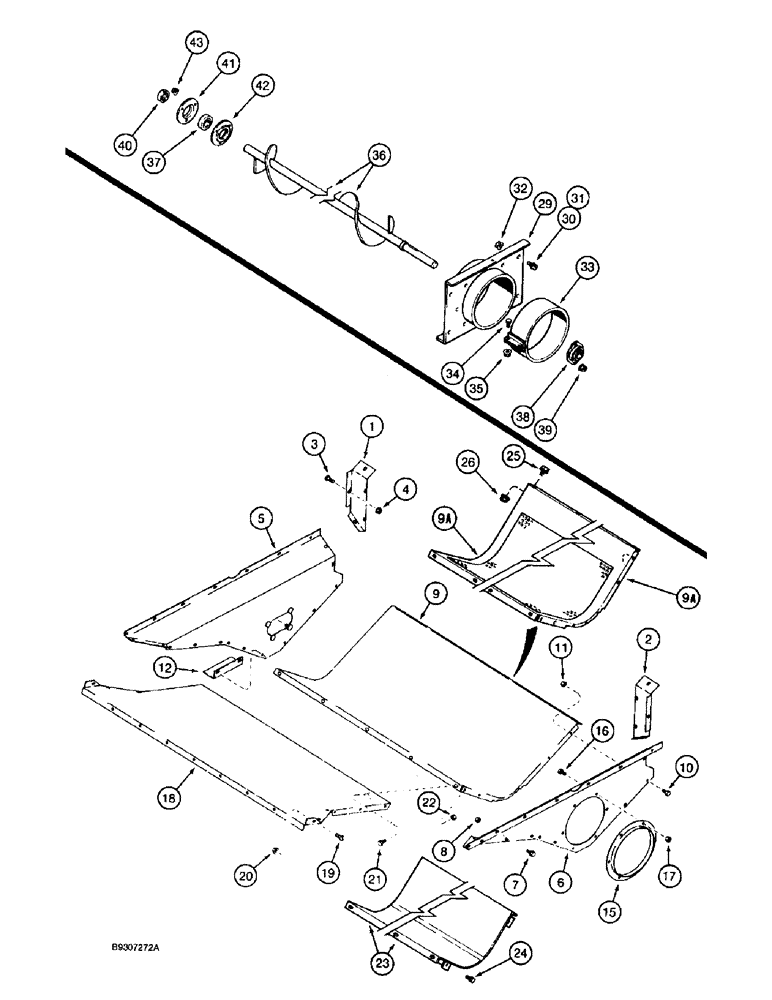

Запчасти Case IH 1688 (9D-02) - GRAIN AUGER TROUGH, GRAIN AUGER AND BEARINGS (16) - GRAIN ELEVATORS & AUGERS

1

1541928C1

SUPPORT

BRACKET fan, left hand, grain auger trough

1шт.

2

1541929C1

SUPPORT

BRACKET fan, right hand, grain auger trough

1шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch, grain auger trough

10шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Grain auger trough

10шт.

5

1541559C2

SUPPORT

grain trough, left hand, auger

1шт.

6

1541541C1

SUPPORT

grain trough, right hand, auger

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Grain auger trough

14шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Grain auger trough

14шт.

9

1989374C1

TROUGH

clean grain, if used, auger

1шт.

9a

1541800C1

TROUGH

clean grain, perforated, if used, auger

1шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Grain auger trough

12шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Grain auger trough

12шт.

12

1317407C1

BRACKET

ANGLE support, grain auger trough

1шт.

15

1317401C1

RETAINER

support, grain auger trough

1шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Grain auger trough

6шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Grain auger trough

6шт.

18

191984C2

PLATE

SUPPORT extension, grain auger trough

1шт.

19

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Grain auger trough

12шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Grain auger trough

12шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Grain auger trough

19шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Grain auger trough

19шт.

23

1541802C1

COVER

grain trough, use with perforated trough Ref. 9A, grain auger trough

1шт.

24

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

self-tapping, hex washer head, 5/16 NC x 1 inch, grain auger trough

4шт.

25

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Grain auger trough

14шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Grain auger trough

14шт.

29

1317398C1

SUPPORT

through tube, grain auger and bearings

1шт.

30

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

hex flange, special, 1/2 NC x 1 inch, grain auger and bearings

9шт.

31

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

BOLT hex flange, special, 1/2 NC x 1-1/4 inch, grain auger and bearings

1шт.

32

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

Grain auger and bearings

10шт.

33

1317442C1

CLAMP

auger trough, grain and bearings

1шт.

34

424-516

BOLT,Hex, 5/16" - 18 x 1", Gr 2

BOLT hex, 5/16 NC x 1 inch, grade 2, grain auger and bearings

2шт.

35

232-4115

LOCK NUT,5/16"-18, GC

Grain auger and bearings

2шт.

36

1317409C1

AUGER

grain and bearings

1шт.

37

156011C92

BALL BEARING

ball, auger, left, grain

1шт.

38

1317250C91

FLANGED BEARING,31.75mm ID

auger, right, grain

1шт.

39

231-5146

FLANGE NUT,3/8"-16

Grain auger and bearings

2шт.

40

557995R11

COLLAR

bearing, with set screw, grain auger

1шт.

41

939460R91

FLANGE

bearing, with 45 degree lube fitting, grain auger

1шт.

42

939461R1

FLANGE

bearing grooved, grain auger

1шт.

43

231-5146

FLANGE NUT,3/8"-16

Grain auger and bearings

3шт.
